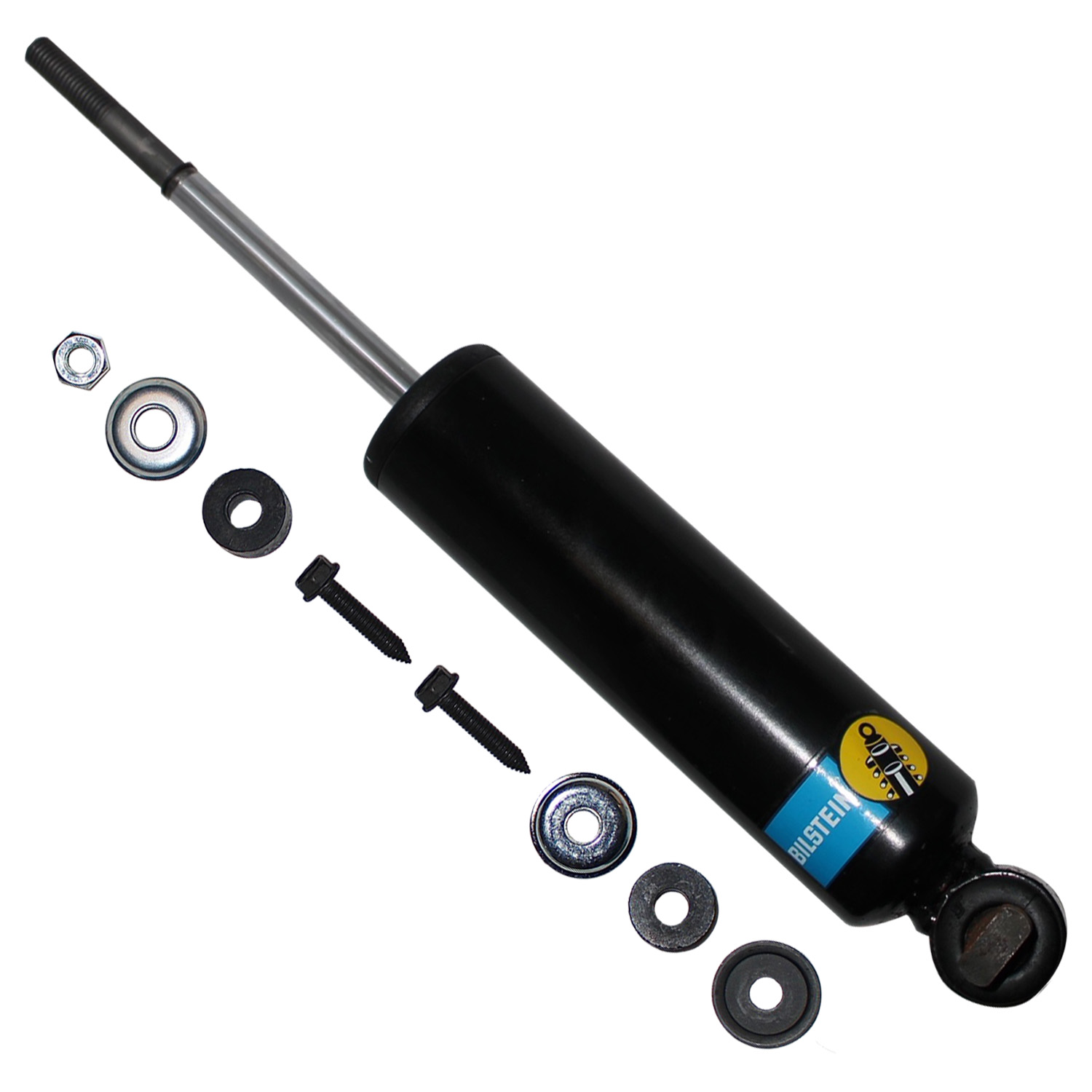

Bilstein Suspension Shock Absorber - 24-296823

SMX Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 24-296823
$150.37
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein SMX Series shock absorbers are specifically designed for motorsports applications that mandate the use of stock mount (OE) suspension components. Designed using 46mm monotube technology, the shocks are available in a variety of damping options including dry kit designed specifically to provide the best options for a variety of race track types and conditions. Built in the USA with precision components and top quality controls, the SMX Series shocks deliver Bilstein’s famous fade-free performance and consistency in a factory-mount package that championship winning racers demand.

Application: No Applications

Products specifications

Attribute name Attribute value
Internal Design Monotube
Body Design Stock Mount Smooth Body
Body Material Steel
Lower Mount Type Bar Pin
Extended Length (mm) 305.0
Adjustable Damping Non-Adjustable
Finish Black Paint
Piston Type Linear
Boot Included No
Upper Mount Type Stem
Extended Length (IN) 12.01
Series SMX Series
Collapsed Length (IN) 8.27
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Rebound @ 10"/sec 1200
Compression @ 10"/sec 225
Spring Hardware N/A
Piston Diameter 46mm
Collapsed Length (mm) 210.0
Shaft Diameter 11mm
Stroke/Travel Length (IN) 3.74
Stroke/Travel Length (mm) 95.0
Country of Origin US
Condition New
