Bilstein Suspension Shock Absorber - 25-277012

B8 5160 Classic - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 25-277012
$289.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

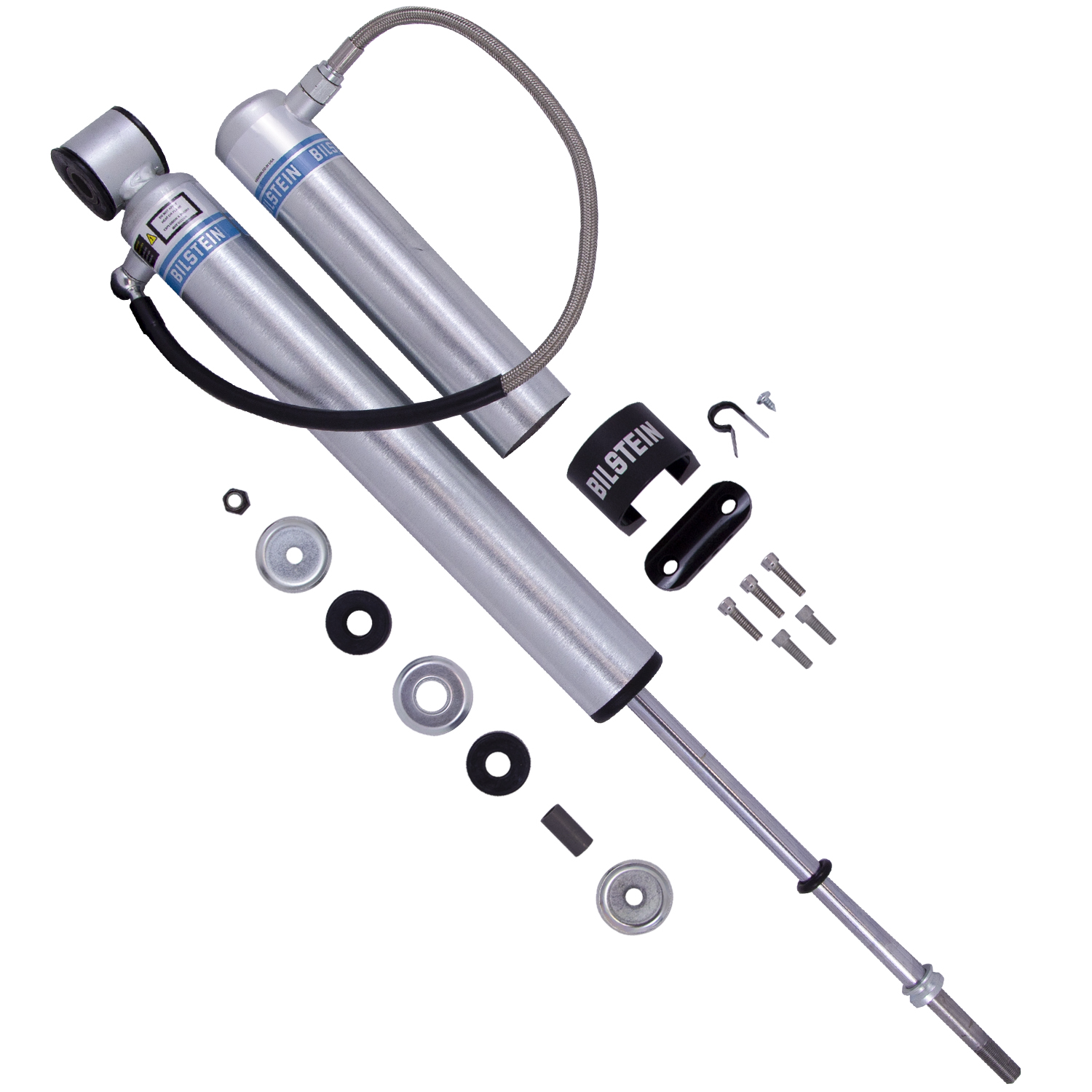

Bilstein B8 5160 Classic remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 Classic remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Products specifications

Attribute name Attribute value
Extended Length (IN) 24.57
Internal Design Monotube
Series B8 5160
Finish Zinc Plated
Lower Mount Type Stem
Extended Length (mm) 624.0
Adjustable Damping Non-Adjustable
Spring Seat Included No
Segment Light Truck
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 46mm
Collapsed Length (IN) 16.00
Shaft Diameter 14mm
Stroke/Travel Length (mm) 217.7
Stroke/Travel Length (IN) 8.57
Reservoir Yes
Collapsed Length (mm) 406.5
Upper Mount Type Eye 16mm
Optional Reservoir Clamp N/A
Body Design Smooth Body (Non-Coilover)
Boot Included No
Billet Reservoir Clamp Included Yes
Country of Origin US
Condition New
