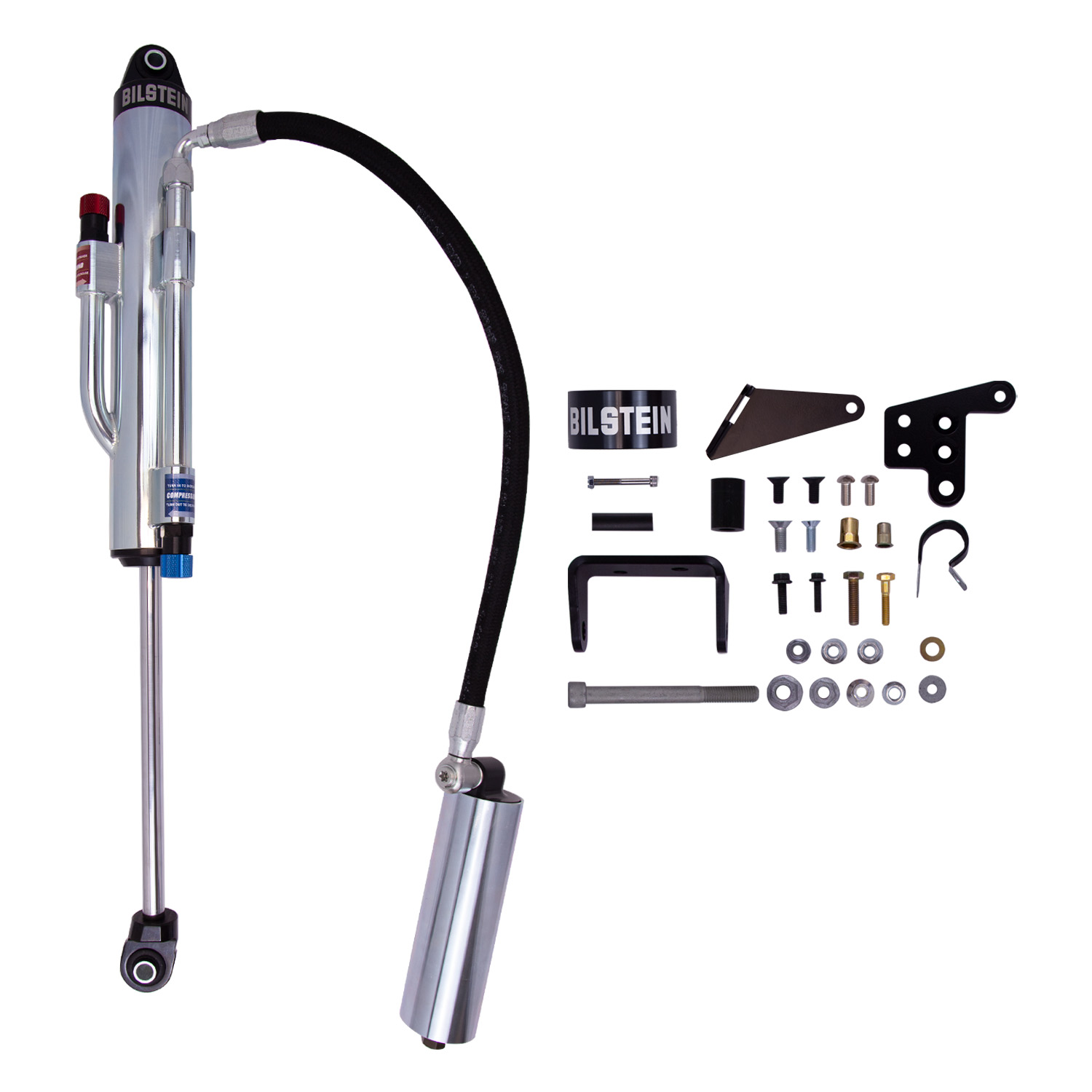

Bilstein Suspension Shock Absorber - 25-305364

B8 8100 (Bypass) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 25-305364
Old price: $1,189.90
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

Products specifications

Attribute name Attribute value
Spring Seat Included No
Body Design Bypass Body (Non-Coilover)
Lower Mount Type Eye 12.8mm
Internal Design Monotube
Reservoir Yes
Extended Length (IN) 29.13
Upper Mount Type Eye 12.8mm
Series B8 8100 (Bypass)
Collapsed Length (IN) 18.11
Finish Zinc Plated
Adjustable Damping Double Adjustable Compression and Rebound with Click Adjuster Knobs
Extended Length (mm) 740.0
Boot Included No
PartType Shocks / Struts
Segment Light Truck
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (mm) 460.0
Piston Diameter 60mm
Shaft Diameter 18mm
Country of Origin US
Condition New
