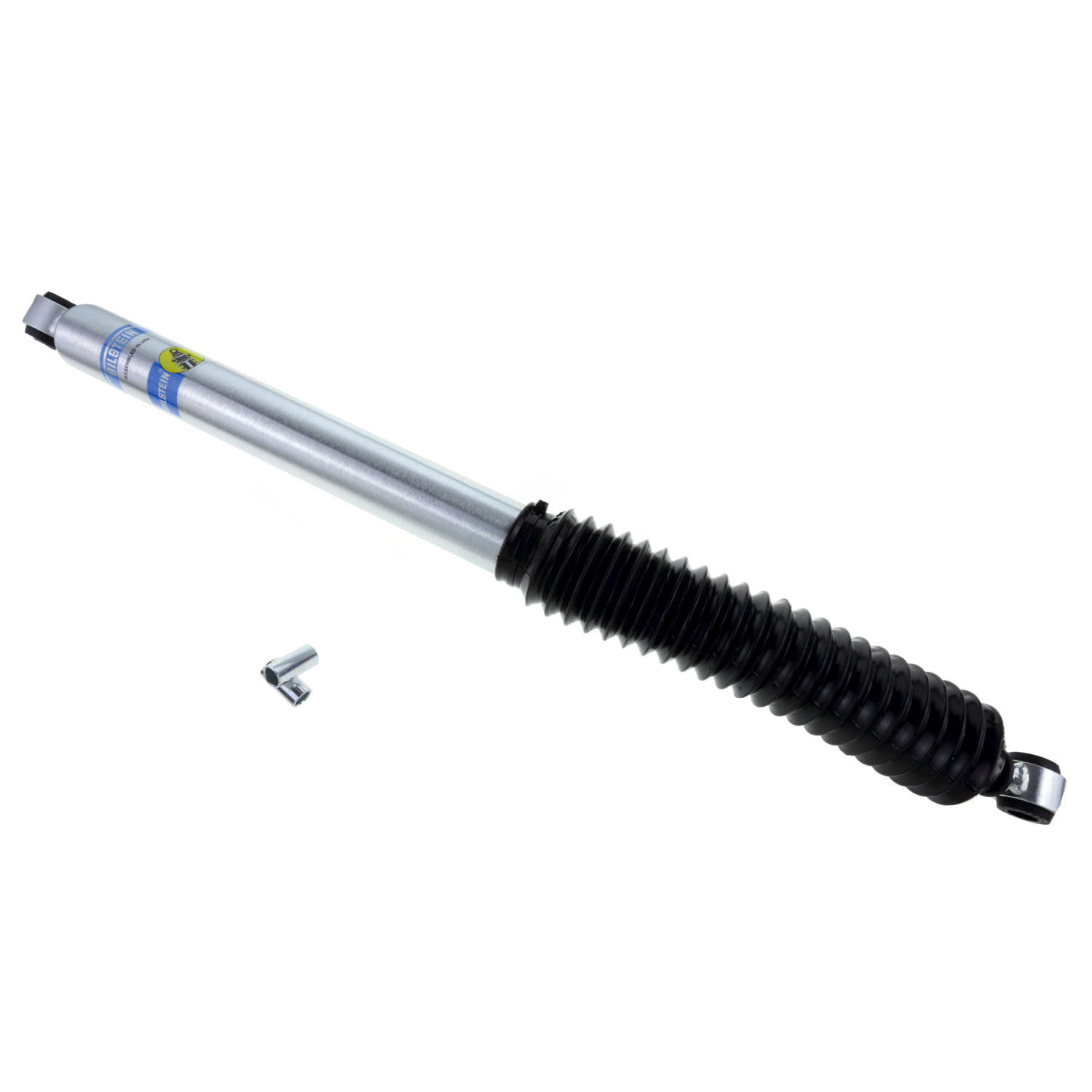

Bilstein Suspension Shock Absorber - 33-185569

B8 5125 - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-185569
Old price: $164.00
$106.13
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

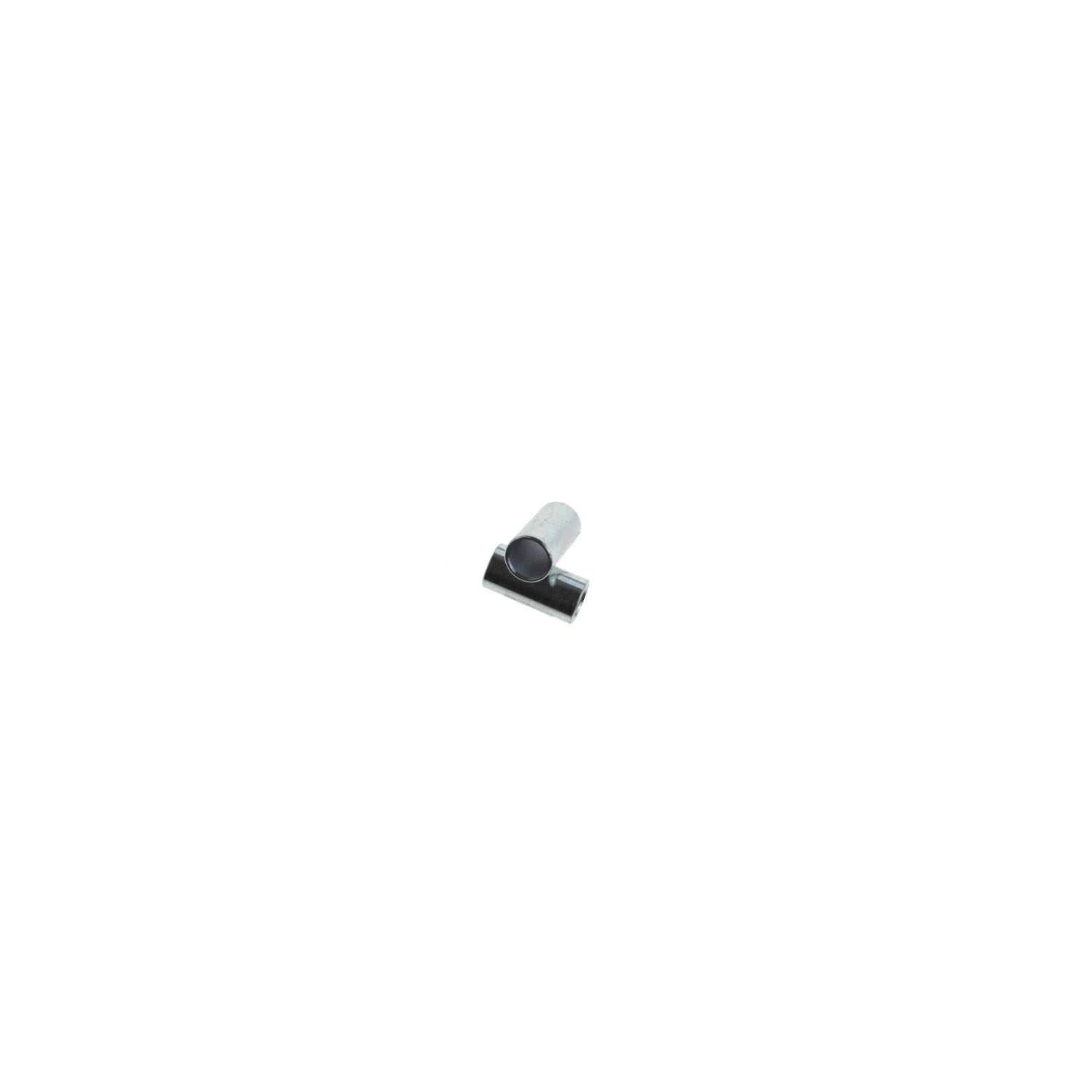

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Application: No Applications

Products specifications

Attribute name Attribute value
Body Design Smooth Body (Non-Coilover)
Lower Mount Type Eye 5/8in
Internal Design Monotube
Boot Included Black Bellows
Series B8 5125
Upper Mount Type Eye 5/8in
Collapsed Length (IN) 17.91
Finish Zinc Plated
Reservoir No
Mount Type Eye-to-Eye
Adjustable Damping Non-Adjustable
Spring Seat Included No
Segment Light Truck
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s 2495
Extended Length (IN) 29.69
Compression @0.52m/s 620
Extended Length (mm) 754.2
Collapsed Length (mm) 455.0
Piston Diameter 46mm
Stroke/Travel Length (IN) 11.78
Shaft Diameter 14mm
Stroke/Travel Length (mm) 299.2
Country of Origin MX
Condition New
Quantity per Application 2
