Bilstein Suspension Shock Absorber - 33-260051

SNS2 Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-260051
Old price: $199.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

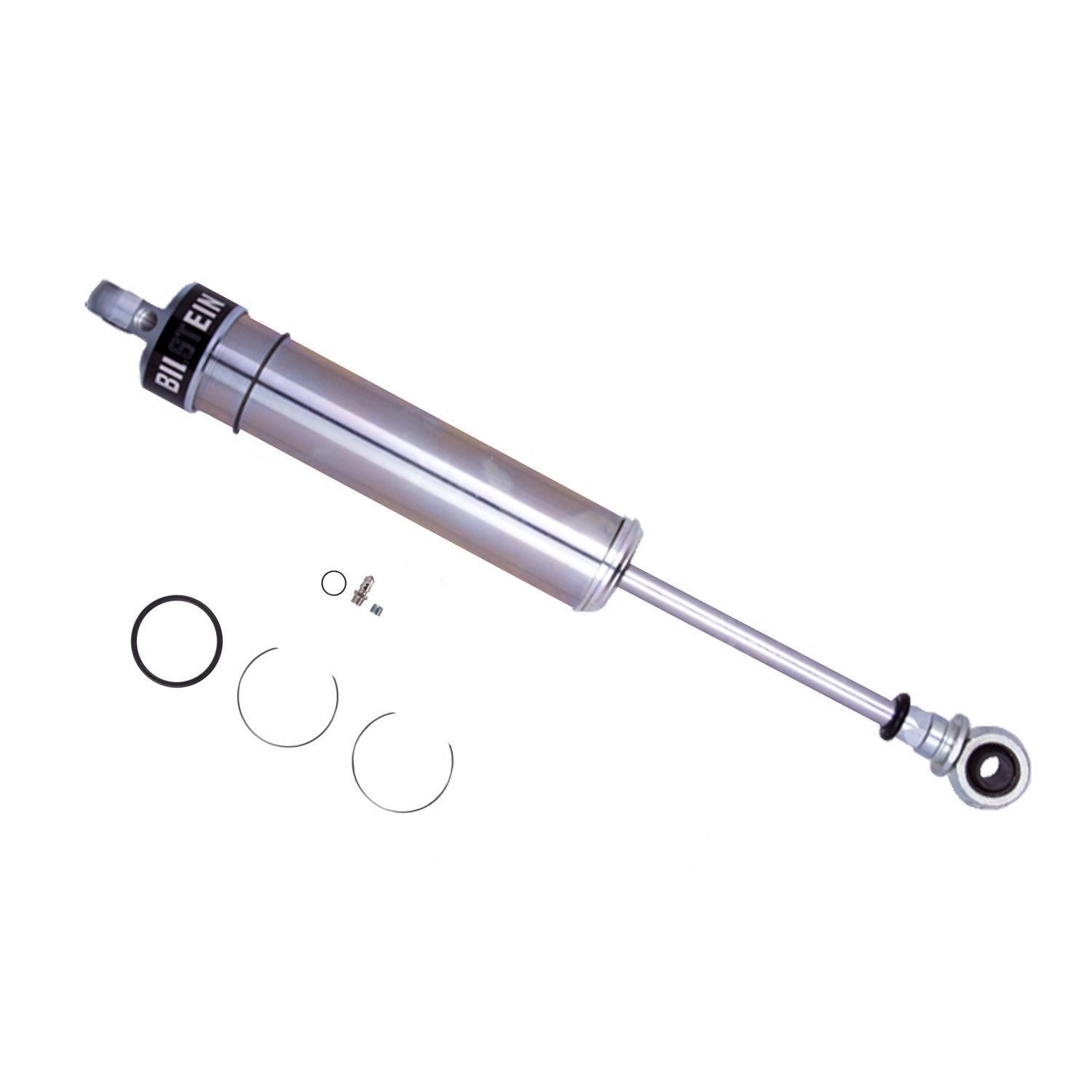

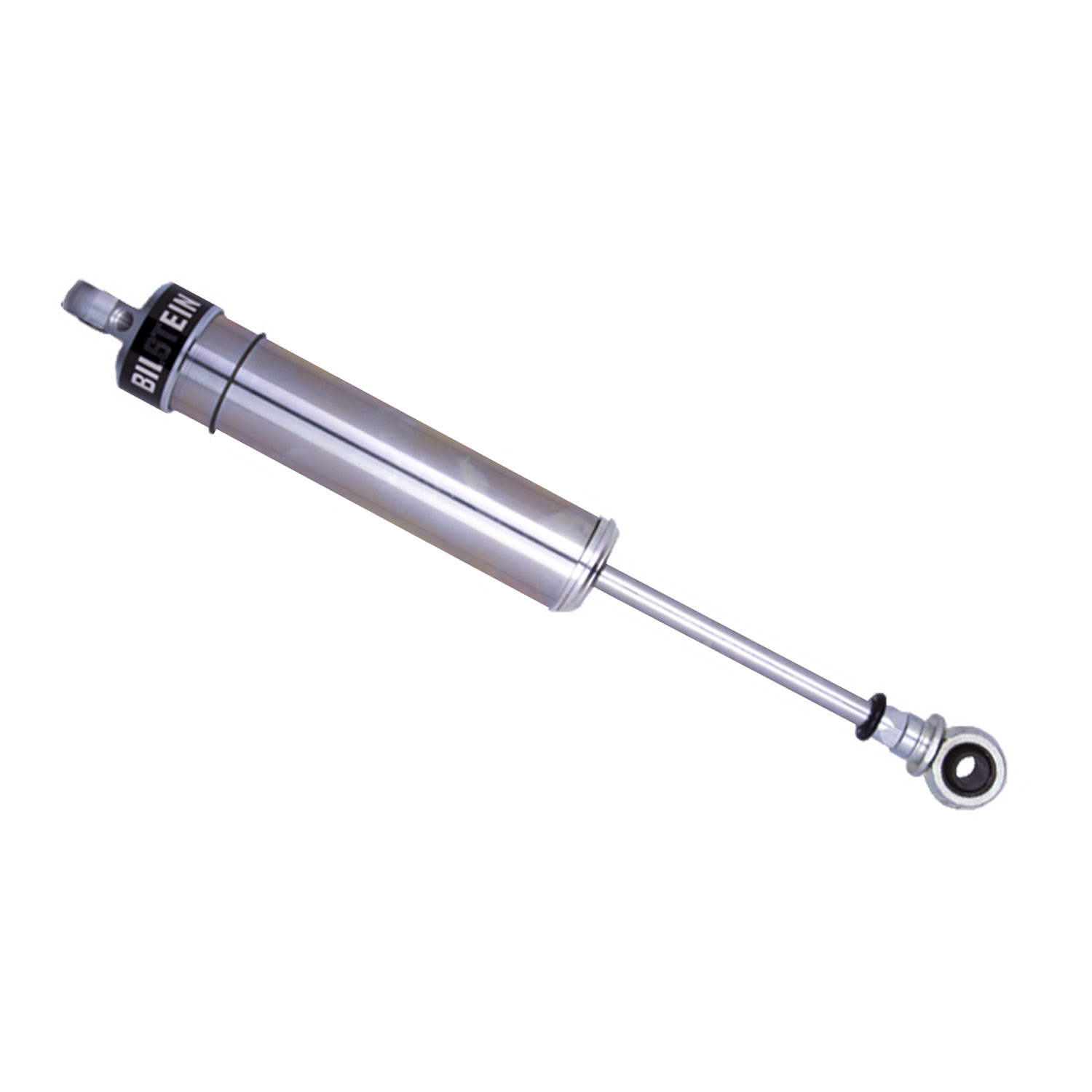

Bilstein SNS2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers feature a steel body cap and a Schrader valve or fill plug. They are upgradeable to adjustable shafts and can be converted to a coilover (kit sold separately). SNS2 Series shock absorbers are ideal for racers whose sanctioning rules require an all steel construction with rebuild capability.

Products specifications

Attribute name Attribute value
Adjustable Damping Non-Adjustable
Body Material Steel
Series SNS2 Series
Extended Length (mm) 452.3
Collapsed Length (mm) 304.8
Internal Design Monotube
Piston Type Linear
Body Design Smooth Body Screw Top (Non-coilover)
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-BOA-0000117
Collapsed Length (IN) 12.00
Piston Diameter 46mm
Stroke/Travel Length (mm) 147.6
Shaft Diameter 14mm
Stroke/Travel Length (IN) 5.81
Boot Included No
Valving Identifier Linear Dry Kit (no valving)
Finish Zinc Plated
Upper Mount Type 1/2in Heim
Extended Length (IN) 17.81
Lower Mount Type 1/2in Heim
Country of Origin US
Condition New
