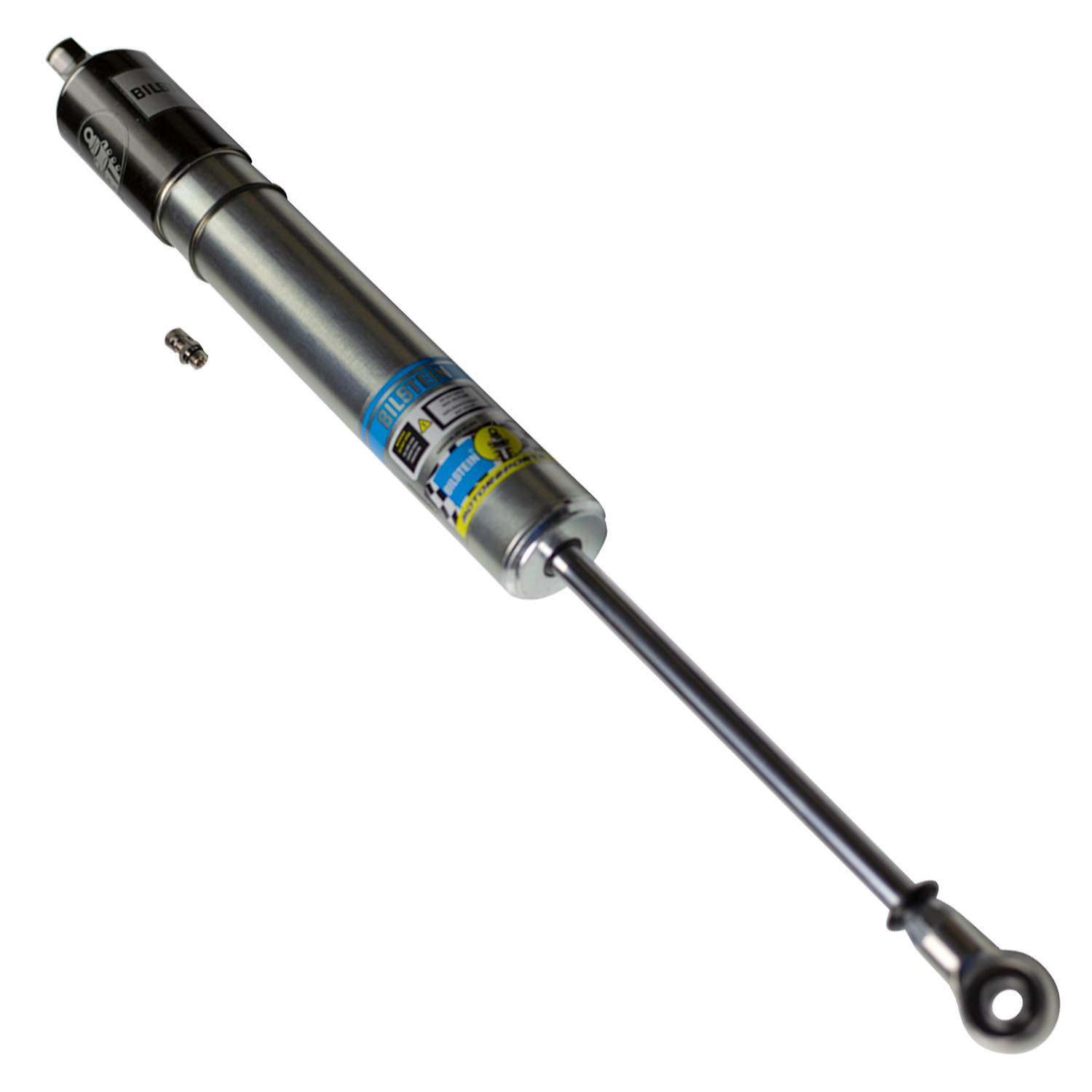

Bilstein Suspension Shock Absorber - 33-298276

SNS2 Series (BV) - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-298276
$449.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

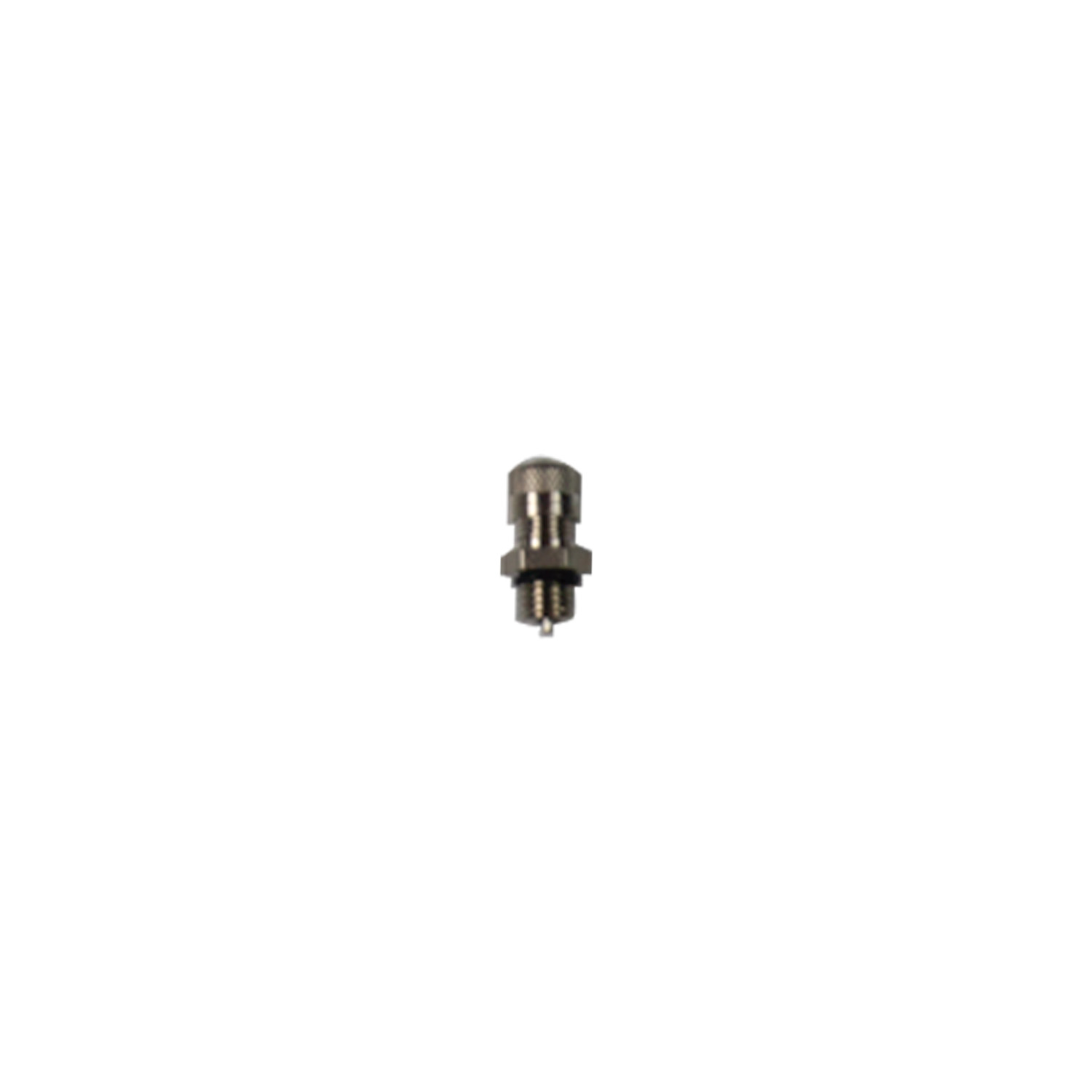

Bilstein SNS2 Series (BV) shock absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately, base valve assembly and premium Teflon heims.  These shock absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately).  SNS2 Series (BV) shock absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable dampers with extra tuning options through base valve technology.

Application: No Applications

Products specifications

Attribute name Attribute value
Collapsed Length (IN) 15.87
Internal Design Monotube
Adjustable Damping Non-Adjustable
Lower Mount Type 1/2in Heim
Boot Included No
Collapsed Length (mm) 403.2
Piston Type Digressive
Body Material Steel
Series SNS2 Series (BV)
Extended Length (IN) 23.79
Upper Mount Type 1/2in Heim
Body Design Smooth Body Screw Top (Non-coilover)
Extended Length (mm) 604.4
Finish Zinc Plated
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-BOA-0000117
Piston Diameter 46mm
Shaft Diameter 14mm
Stroke/Travel Length (mm) 201.2
Stroke/Travel Length (IN) 7.92
Country of Origin US
Condition New
