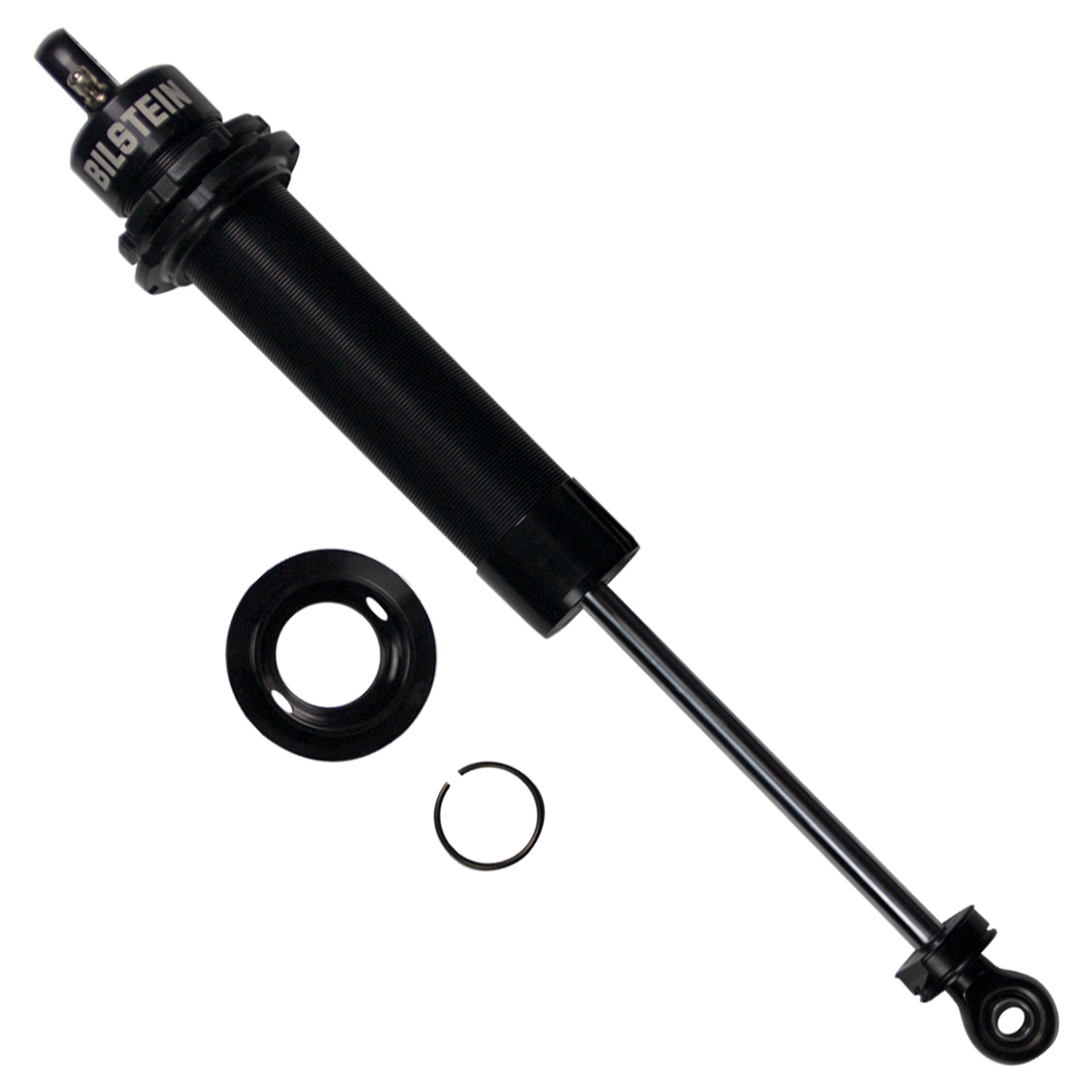

Bilstein Suspension Shock Absorber - 33-334066

AS2 Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: 33-334066
$590.58
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein AS2 Series shock absorbers are designed for motorsports applications and provide the user with the option to rebuild them. The modular aluminum design is offered in non-, single and double adjustable configurations which provide superior on-vehicle tuning capabilities. The threaded body provides precise height adjustments for coilover setups and dissipates heat quickly. The hard anodized coating reduces internal friction and improves strength and durability (pistons, piston bands and heims are sold separately to allow for a variety of combinations). AS2 Series shock absorbers are ideal for racers demanding a lightweight design with upgrade capability.

Application: No Applications

Products specifications

Attribute name Attribute value
Series AS2 Series
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Lower Mount Type 1/2in teflon heim
Upper Mount Type 1/2in teflon heim
Collapsed Length (IN) 12.78
Collapsed Length (mm) 324.6
Extended Length (mm) 502.9
Body Material Aluminum
Finish Clear Anodized
Piston Type Linear
Internal Design Monotube
Boot Included No
Adjustable Damping Non-Adjustable
Body Design Threaded Body Screw Top (Coilover)

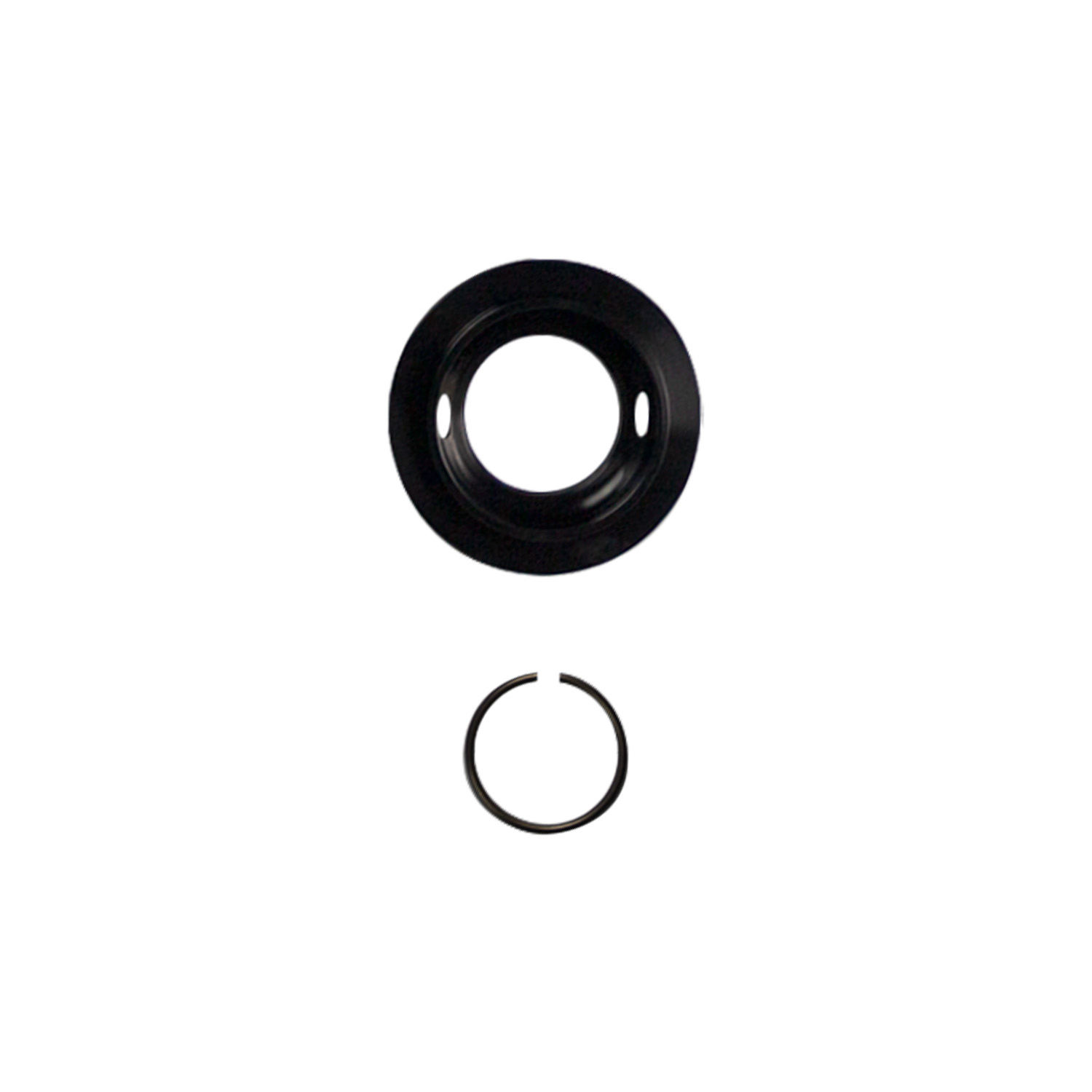

Spring Seat Included Yes
Extended Length (IN) 19.80
Piston Diameter 46mm
Shaft Diameter 14mm
Stroke/Travel Length (mm) 178.3
Stroke/Travel Length (IN) 7.02
Country of Origin US
Condition New
