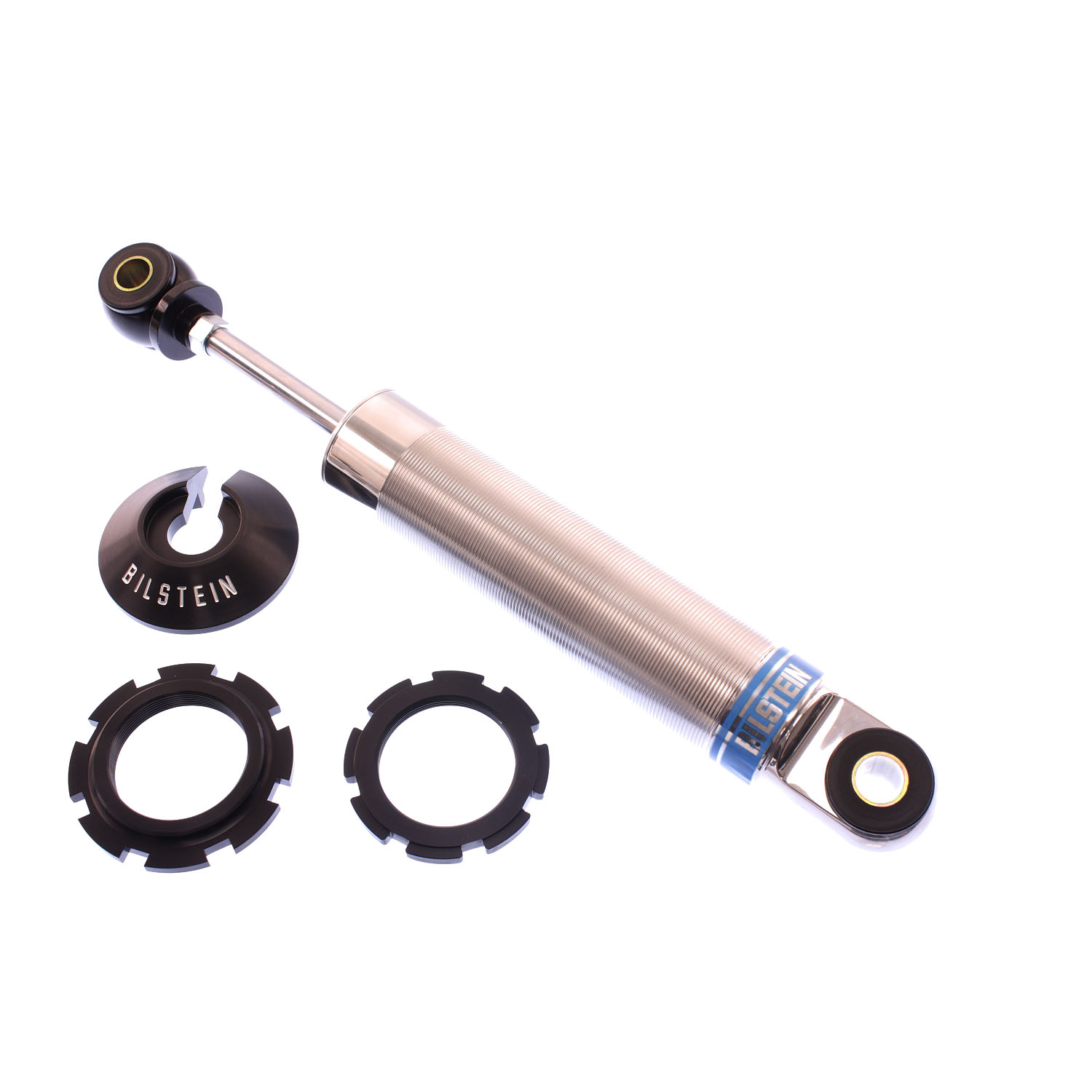

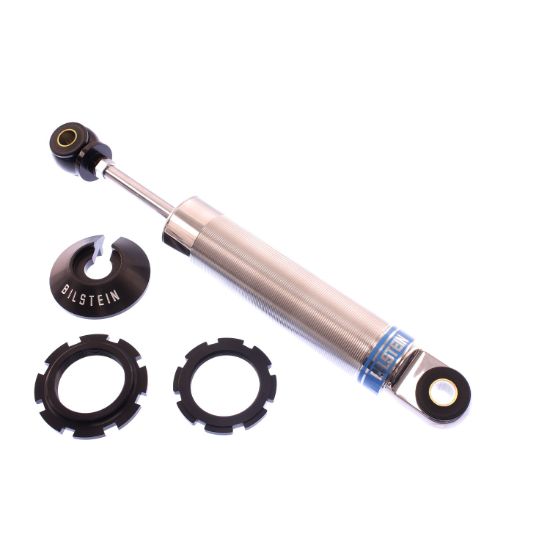

Bilstein Suspension Shock Absorber - A411152030

CA4 Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: A411152030
Old price: $324.66
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

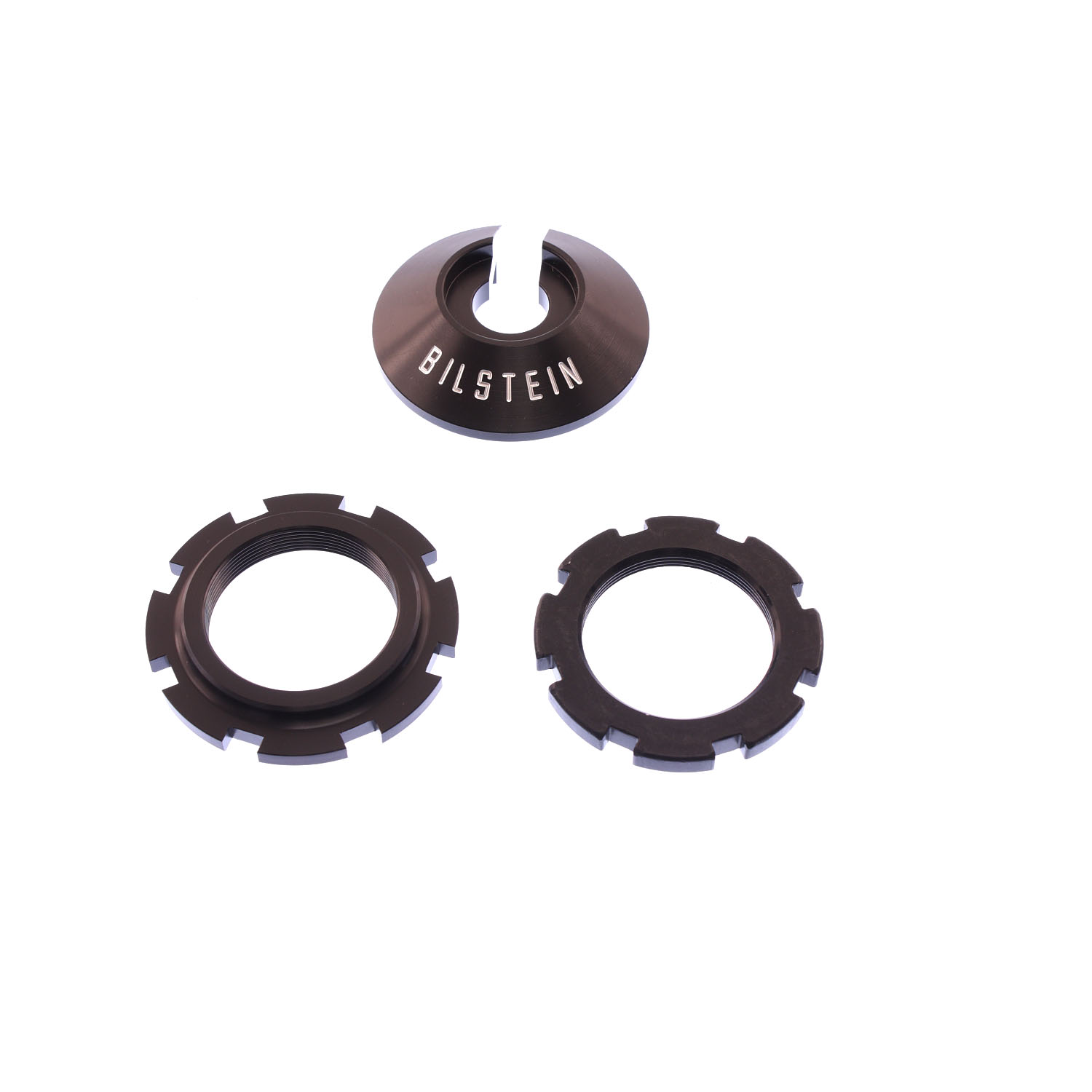

Bilstein CA4 Series shock absorbers are designed specifically for custom street rod applications that require unique lengths and valve settings for the proper chassis setup. Built around a billet aluminum monotube design, these shock absorbers feature a 46mm piston, threaded body, 5/8 inch polyurethane bushing mounts and various lengths and valve settings to choose from. Each shock absorber is supplied with a hard anodized spring seat, lock ring, and hat to accommodate a 2.5 inch ID spring. Bilstein CA4 Series shock absorbers provide a wide range of options to support any custom street rod application need.

Products specifications

Attribute name Attribute value
Series CA4 Series
Position Front
Finish Polished Aluminum
Collapsed Length (IN) 11.67
Extended Length (IN) 15.16
Internal Design Monotube
Collapsed Length (mm) 296.5
Spring Seat Included Yes
PartType Shocks / Struts
Segment Tuning
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Compression @0.52m/s 640
Recommended Mounting Length (IN) 12.50
Boot Included No
Extended Length (mm) 385.0
Rebound @0.52m/s 1750
Upper Mount Type Eye 15.9mm
Lower Mount Type Eye 15.9mm
Country of Origin US
Condition New
Quantity per Application 2
