Bilstein Suspension Shock Absorber - B46-1353R

M 7100 - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: B46-1353R
$267.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

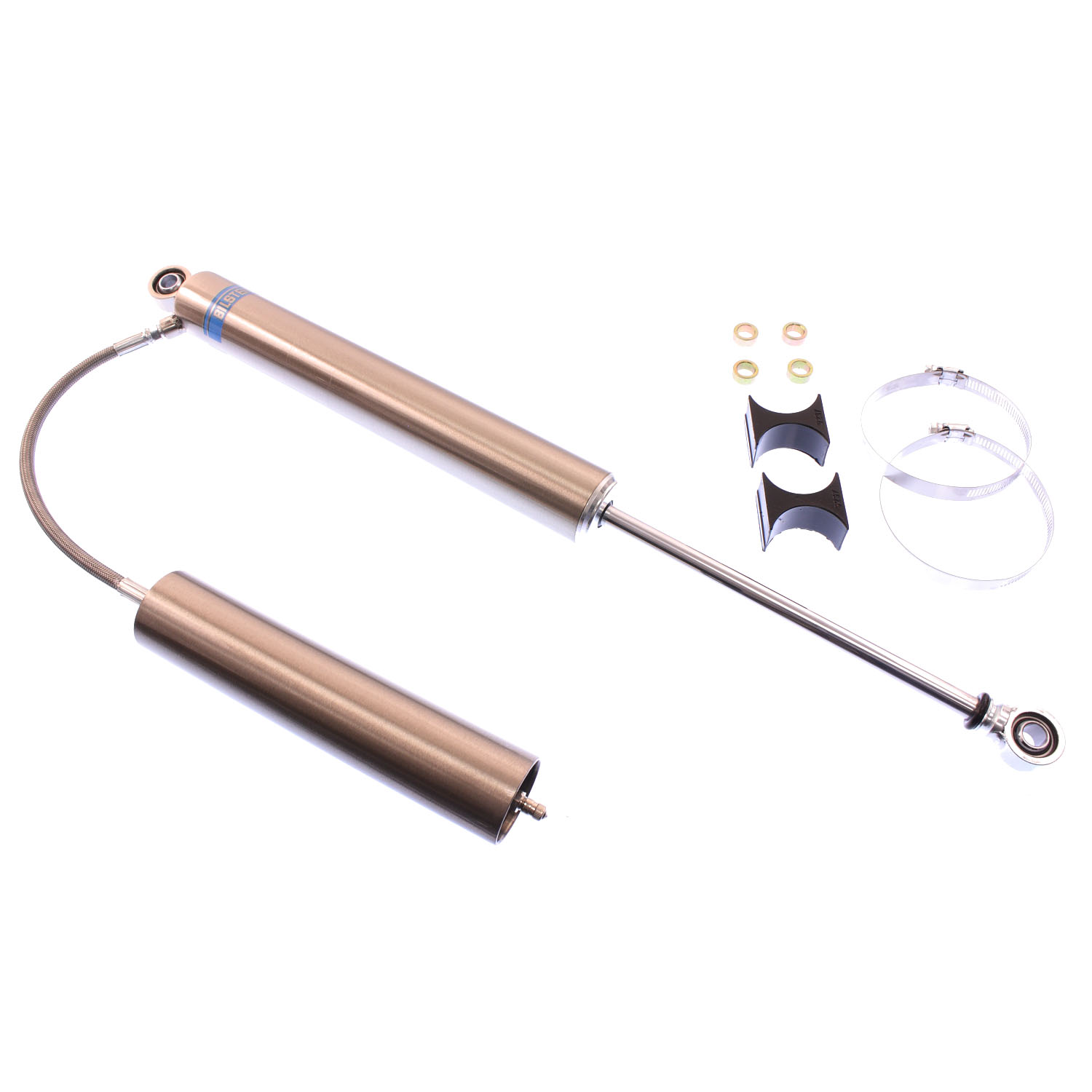

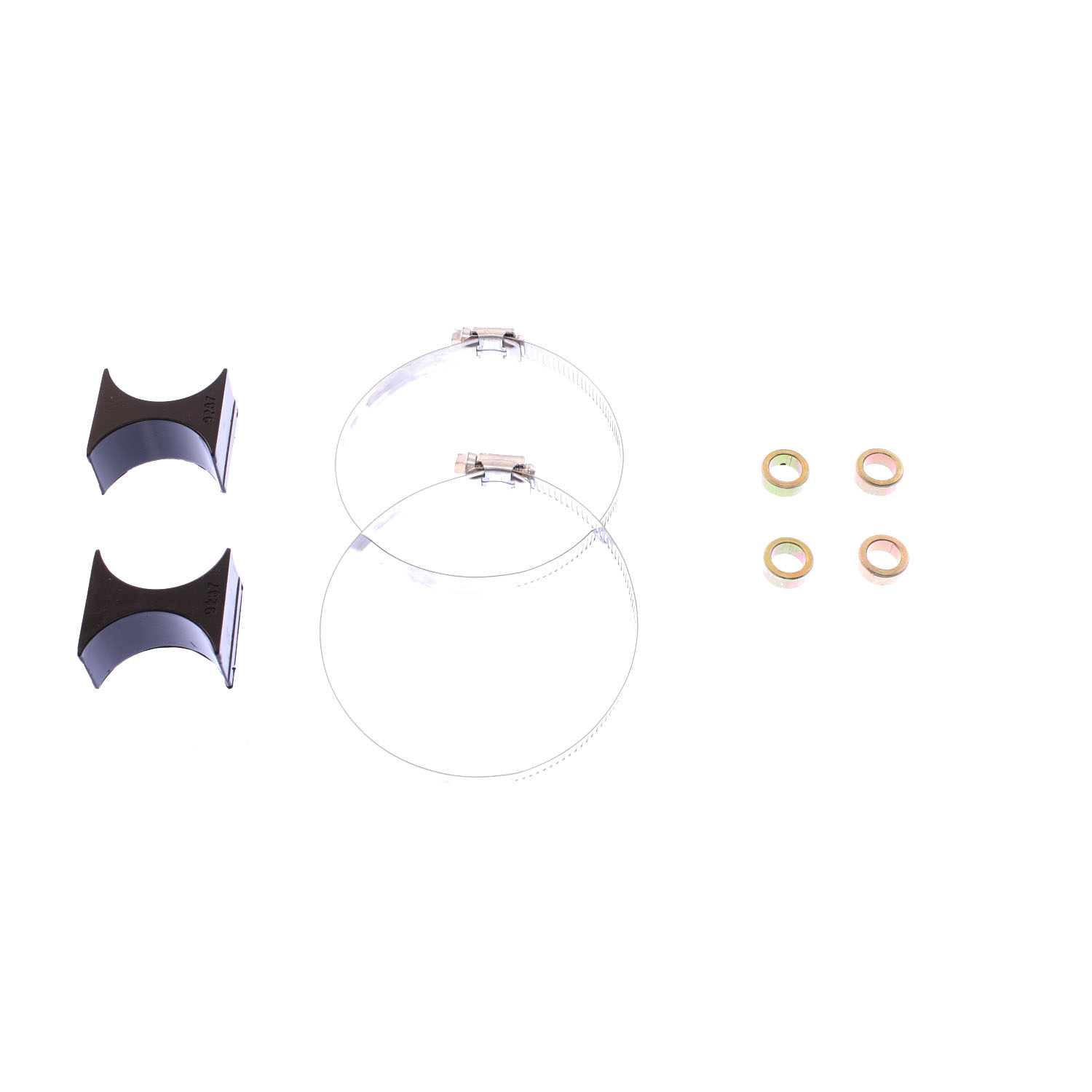

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.

Products specifications

Attribute name Attribute value
Collapsed Length (IN) 19.53
Extended Length (mm) 789.9
Optional Reservoir Clamp N/A
Mount Type Eye-to-Eye
Internal Design Monotube
Extended Length (IN) 31.10
Body Design Smooth Body (Non-Coilover)
Upper Mount Type 1/2in Heim
Reservoir Yes
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Piston Diameter 46mm
Stroke/Travel Length (IN) 11.57
Shaft Diameter (mm) 14.0
Stroke/Travel Length (mm) 293.9
Finish Nickel Plated with Clear Powder Coat
Series M 7100
Compression @0.52m/s 600
Collapsed Length (mm) 496.1
Rebound @0.52m/s 1700
Lower Mount Type 1/2in Heim
Country of Origin US
Condition New
Quantity per Application 2
