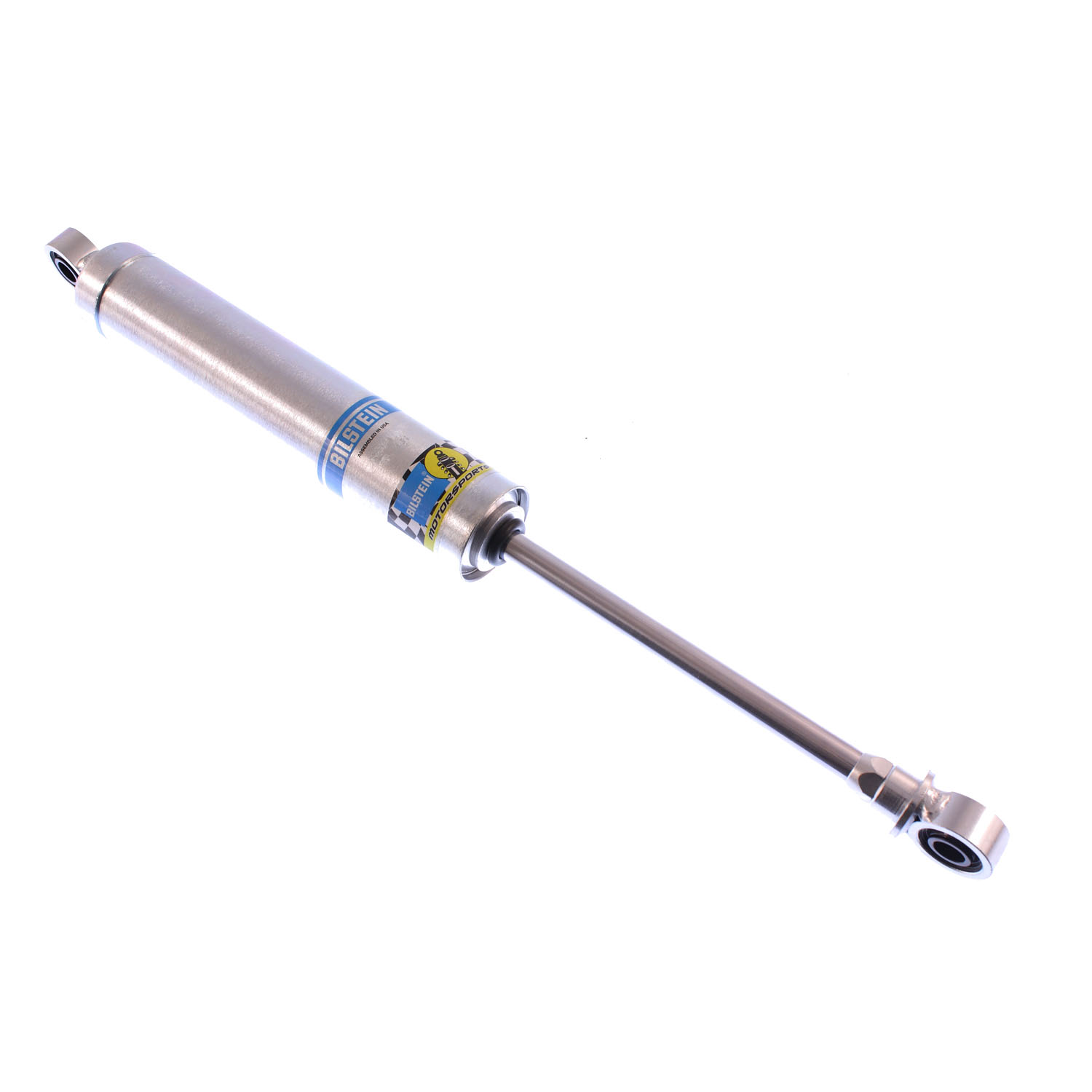

Bilstein Suspension Shock Absorber - F4-B46-0207-ZE

SZ Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: F4-B46-0207-ZE
Old price: $170.50
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Products specifications

Attribute name Attribute value
Internal Design Monotube
Adjustable Damping Non-Adjustable
Valving Identifier 3050
Collapsed Length (IN) 14.88
Extended Length (IN) 23.52
Boot Included No
Piston Type Digressive
Lower Mount Type 1/2in Heim
Body Material Steel
Upper Mount Type 1/2in Heim
Body Design Smooth Body (Non-Coilover)
Extended Length (mm) 597.5
Compression @0.26m/s 1110
Finish Zinc Plated
Rebound @0.26m/s 650
Series SZ Series
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-BOA-0000117
Collapsed Length (mm) 378.0
Piston Diameter 46mm
Shaft Diameter 14mm
Stroke/Travel Length (mm) 219.5
Stroke/Travel Length (IN) 8.64
Country of Origin US
Condition New
