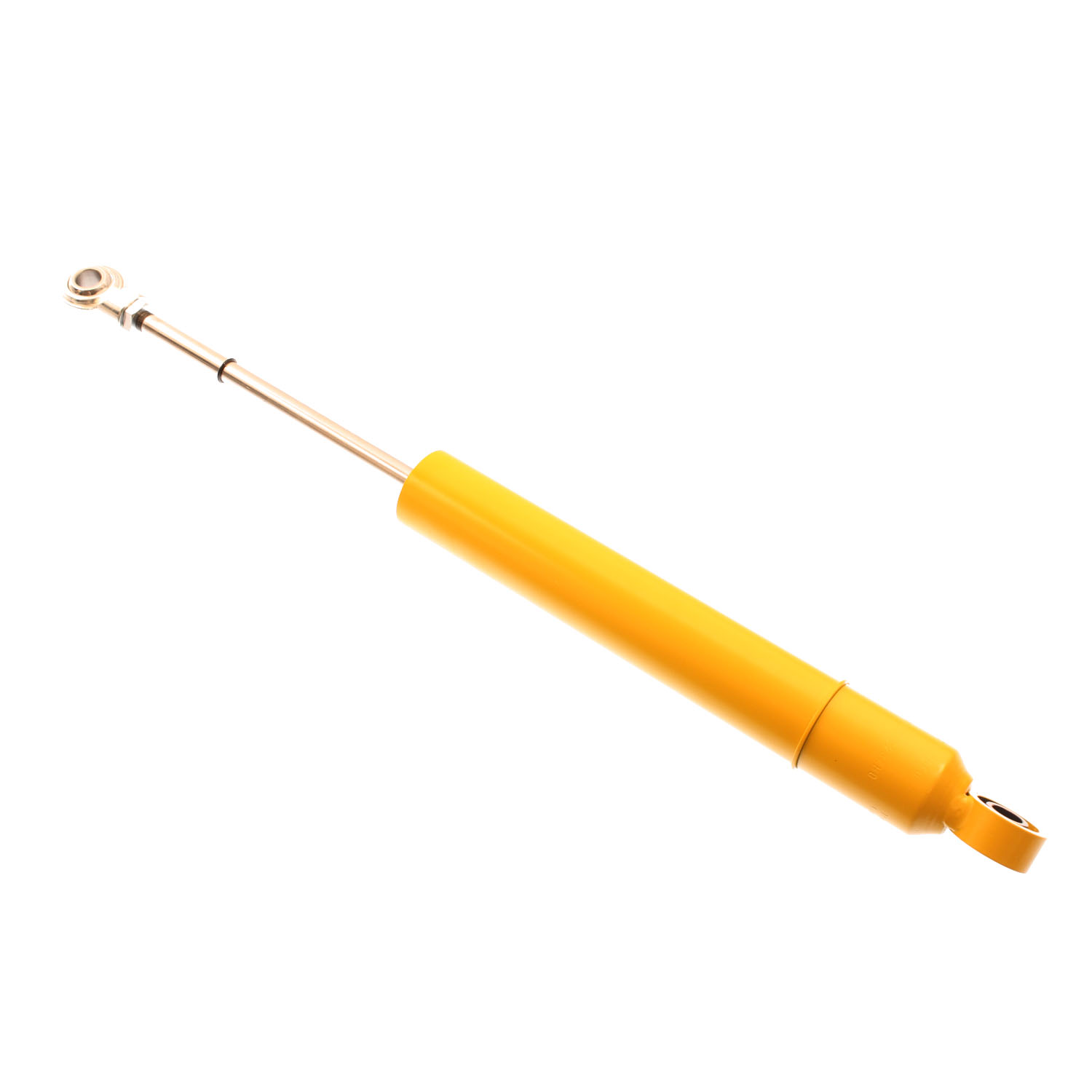

Bilstein Suspension Shock Absorber - F4-BE3-C232-H0

G Series - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: F4-BE3-C232-H0
Old price: $152.09
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein G Series shock absorbers feature a steel monotube body with a 36mm piston designed for a variety of motorsports applications. These shock absorbers are available in 6 and 7 inch strokes with multiple valve setting options that provide optimal weight transfer and feel. They can also be converted to a coilover design (kit sold separately) for multiple platforms on dirt and asphalt. G Series shock absorbers are ideal for racers needing a lightweight high performance option with fade free handling and control.

Products specifications

Attribute name Attribute value
Piston Type Digressive
Series G Series
Upper Mount Type 1/2in Heim
Extended Length (IN) 19.86
Lower Mount Type 1/2in Heim
Rebound @0.26m/s 450
Boot Included No
Compression @0.26m/s 740
Finish Yellow Paint
Adjustable Damping Non-Adjustable
Collapsed Length (IN) 12.68
Body Material Steel
Body Design Smooth Body (Non-Coilover)
Internal Design Monotube
Valving Identifier 2040
Extended Length (mm) 504.5
Spring Seat Included No
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware B4-BOA-0000187
Collapsed Length (mm) 322.0
Piston Diameter 36mm
Shaft Diameter 11mm
Stroke/Travel Length (mm) 182.6
Stroke/Travel Length (IN) 7.19
Country of Origin DE
Condition New
