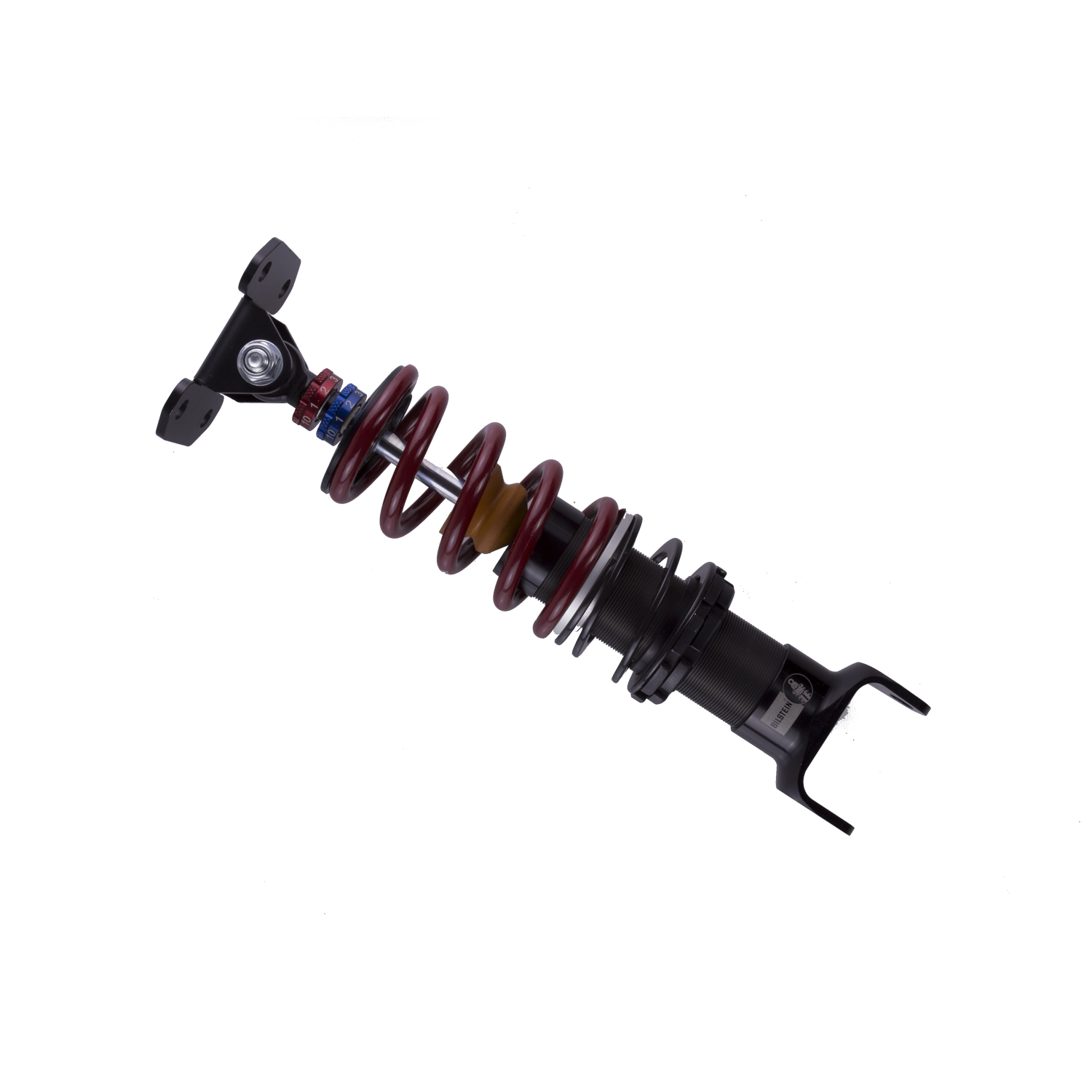

Bilstein Suspension Shock Absorber - K4-BM5-95147M0

MDS - Suspension Shock Absorber
Manufacturer: Bilstein
Manufacturer part number: K4-BM5-95147M0
Old price: $2,172.47
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Bilstein MDS (Modular Damping System) dampers are a premium motorsports product designed for professional road racing. The 2-way independent compression and rebound adjustment system provides 100 different setting variations for the ultimate in handling performance. The Easy Clip System (ECS) spring retainer system allows for rapid spring changes for easy at the track suspension tuning. MDS dampers are ideal for full-race car applications that demand exceptional versatility and fine tuning for track conditions. Bilstein MDS dampers provide proven performance and have taken many race cars to victory at races such as the 24 Hours of Le Mans and the 24 Hours of Nürburgring.

Products specifications

Attribute name Attribute value
Body Design Threaded Body (Coilover)
Rebound @0.52m/s Adjustable
Body Material Aluminum
Extended Length (IN) 14.96
Compression @0.52m/s Adjustable
Piston Type Linear
Finish Clear Anodized
Lower Mount Type Clevis
Collapsed Length (mm) 324.6
Collapsed Length (IN) 12.78
Boot Included No
Adjustable Damping Double Adjustable – Compression and Rebound
Internal Design Monotube
Extended Length (mm) 380.0
Valving Identifier N/A
Series MDS
Position Rear
Upper Mount Type 15mm Heim
Spring Seat Included Yes
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware N/A
Piston Diameter 46mm
Shaft Diameter 14mm
Stroke/Travel Length (IN) 2.18
Front Tender Spring Rate (lbs/in) 228
Stroke/Travel Length (mm) 55.4
Front Main Spring Type Linear
Country of Origin DE
Condition New
Quantity per Application 2
