Bilstein Suspension Strut Assembly - 35-212836

Universal Motorsports Strut - Suspension Strut Assembly
Manufacturer: Bilstein
Manufacturer part number: 35-212836
Old price: $549.00
$0.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

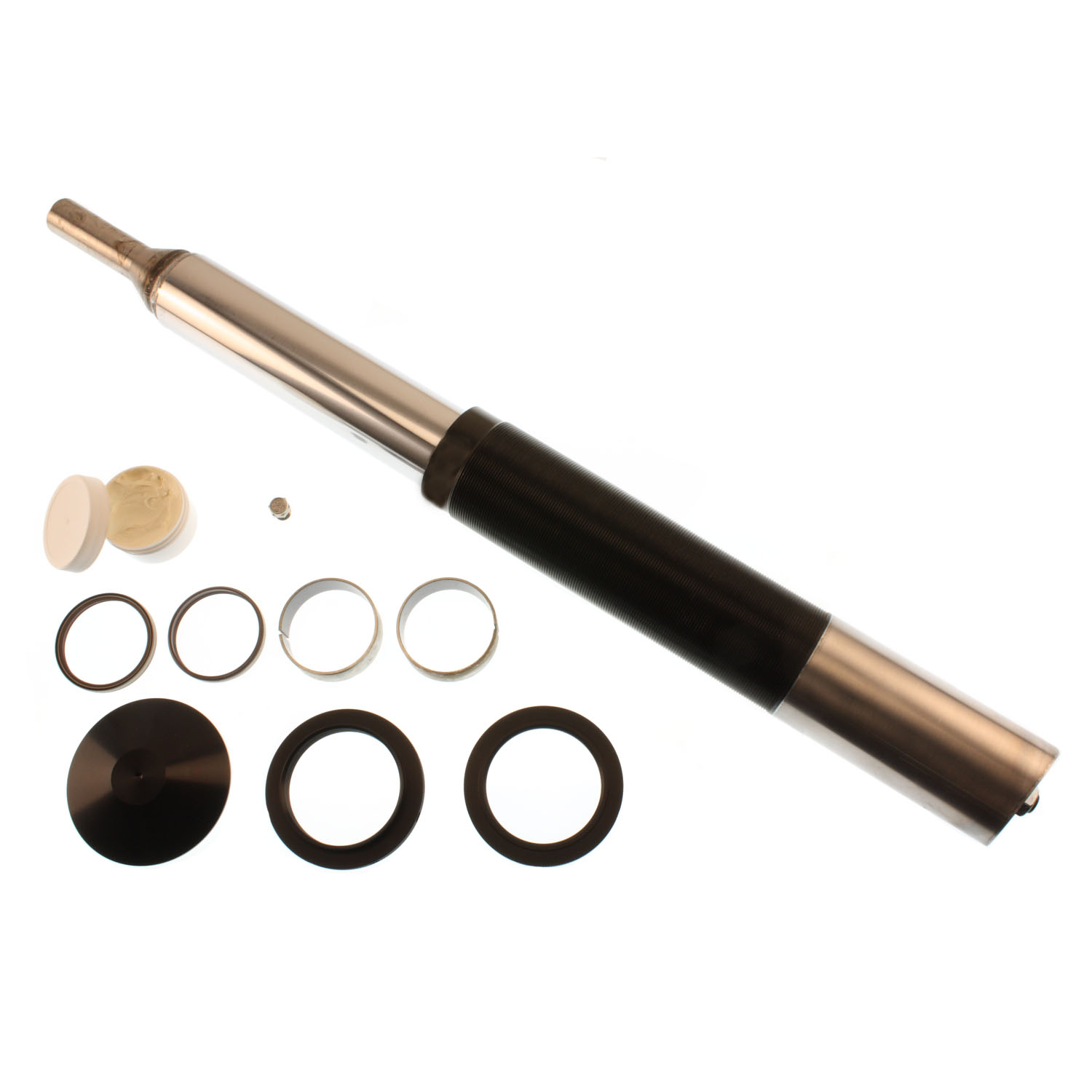

Bilstein Universal Motorsports Struts are massive 46mm I.D. inverted monotube dampers intended to be adapted to MacPherson strut style suspension systems. The strut insert is provided with a blank upper-stem that can be machined down to fit a specific top mount or camber/caster plate variations. Each strut is supplied with a matched external housing that permits the builder to fabricate weld tabs for mounting the unit to a vehicle's lower steering knuckle. Additionally, the threaded housing allows the builder to adjust the ride height of the vehicle to ensure the proper ride height is met in order for the vehicle to perform at the highest level possible.

Products specifications

Attribute name Attribute value
Collapsed Length (IN) 11.89
Internal Design Monotube
Series Universal Motorsports Strut
Spring Seat Included Yes
Segment Motorsports
PartType Shocks / Struts
Prop 65 Y/N Y
Prop 65 - Short Label WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware 2.5in
Collapsed Length (mm) 302.0
Stroke/Travel Length (mm) 148.1
Shaft Diameter 14mm
Stroke/Travel Length (IN) 5.83
Upper Mount Type Stem
Boot Included No
Extended Length (IN) 17.72
Extended Length (mm) 450.0
Finish Olive-Drab Zinc
Lower Mount Type Housing
Rebound @0.52m/s 3020
Country of Origin US
Condition New
