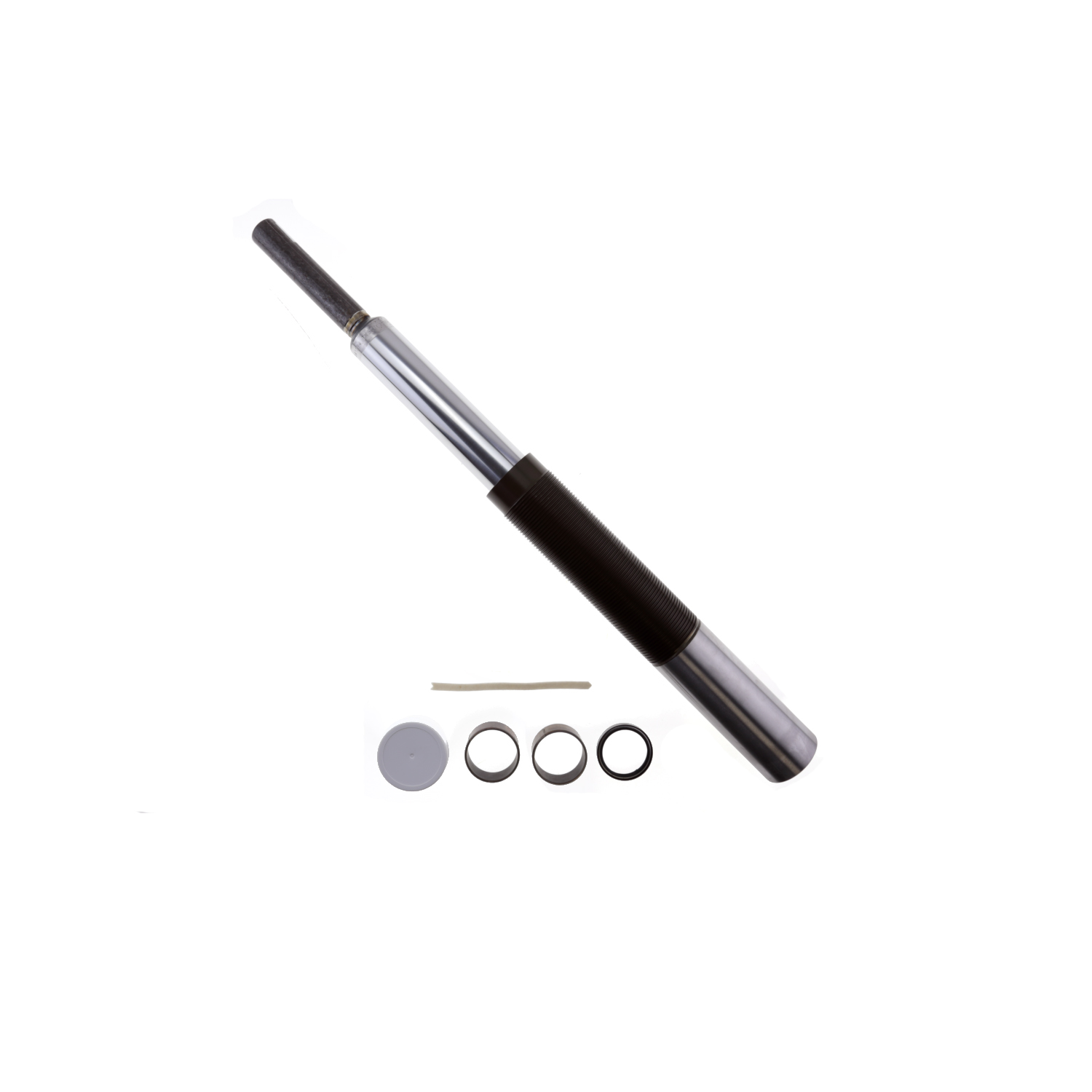

Bilstein Suspension Strut Assembly - 35-223160

Name: Bilstein Suspension Strut Assembly - 35-223160
SKU: 35-223160
Price: 0.01 USD
Availability: OutOfStock

Universal Motorsports Strut - Suspension Strut Assembly

Manufacturer: Bilstein

Manufacturer part number: 35-223160

Old price: $499.00

Price: $0.01

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Bilstein Universal Motorsports Struts feature inverted 36mm monotube dampers that are ideal for a range of MacPherson strut style motorsports applications. The semi-finished upper mounting stem and body housing allows builders to fabricate to their unique mounting needs. The Universal Motorsports Struts are ideal for racers demanding a superior performing and versatile strut design beyond what traditional OE-style designs can provide.

Products specifications

Attribute name	Attribute value
Upper Mount Type	Stem
Finish	Olive-Drab Zinc
Series	Universal Motorsports Strut
Extended Length (IN)	18.87
Adjustable Damping	Non-Adjustable
Extended Length (mm)	479.4
Collapsed Length (mm)	312.6
Compression @0.52m/s	960
Piston Type	Digressive
Boot Included	No
Rebound @0.52m/s	1735
Spring Seat Included	No
Segment	Motorsports
PartType	Shocks / Struts
Prop 65 Y/N	Y
Prop 65 - Short Label	WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Spring Hardware	N/A
Piston Diameter	36mm
Shaft Diameter	14mm
Stroke/Travel Length (mm)	166.6
Stroke/Travel Length (IN)	6.56
Body Design	Threaded Body (Coilover)
Body Material	Steel
Internal Design	Monotube
Valving Identifier	180/100
Lower Mount Type	Housing
Collapsed Length (IN)	12.31
Country of Origin	US
Condition	New
