Hella Auxiliary Light - 016773011

Name: Hella Auxiliary Light - 016773011
SKU: 016773011
Availability: OutOfStock

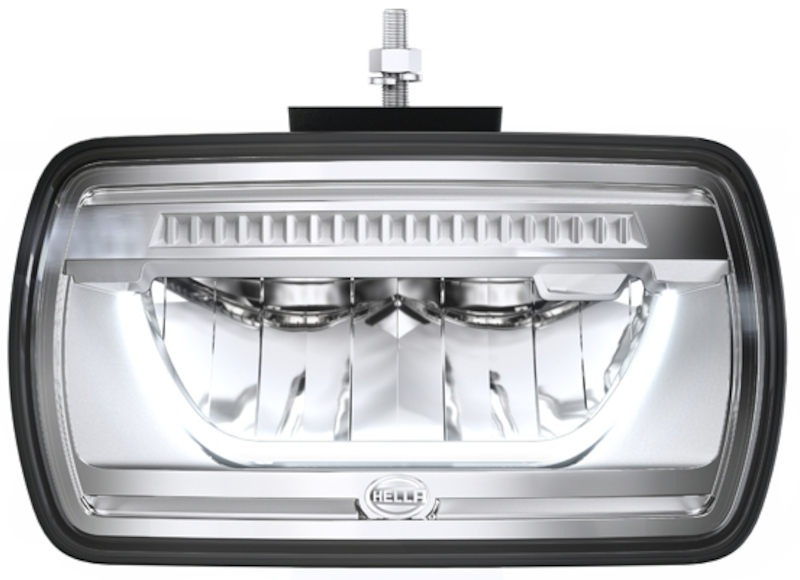

HELLA Auxiliary Light 016773011

Manufacturer: Hella

Manufacturer part number: 016773011

$0.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Auxiliary headlights from HELLA are not only technical highlights, but also outstanding design elements that give every off-road vehicle an individual look. Reason enough to provide the headlights with special protection when they are switched off in order to preserve their function and appearance in the long term. With the precisely fitting protective caps with HELLA logo, you kill two birds with one stone: when switched off, they protect the headlights from dirt and thus serve safety, because the light output can be better brought onto the track later.

Products specifications

Attribute name	Attribute value
Color Temperature [K]	5700
Light Function	2 - with High Beam (LED) / with Position Light (LED)
Single Lamp Includes	(1) LED Light Bar with mounting hardware, Mounting Instructions
Weight [g]	1100
Connection	With 3-Pin Connecting Cable 2.6 ft (800 mm) with Open Ends
Current Consumption	Position light 1.3 W and high beam 8 W (12 V), Position light 2.7 W and high beam 8 W (24V)
IP Rating	IP68/IP69K
Wattage (W)	1.3
Mounting	Upright / Pendant
Electromagnetic Compatibility (EMC)	ECE R10
Supplementary Article/Supplementary Info 2	without Top
Voltage	24.00, 12.00
Grade Type	Standard Replacement
California Proposition 65 Required	No
Bracket Material	Zinc-Coated Steel
Housing Material	ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate)
Technology	LED

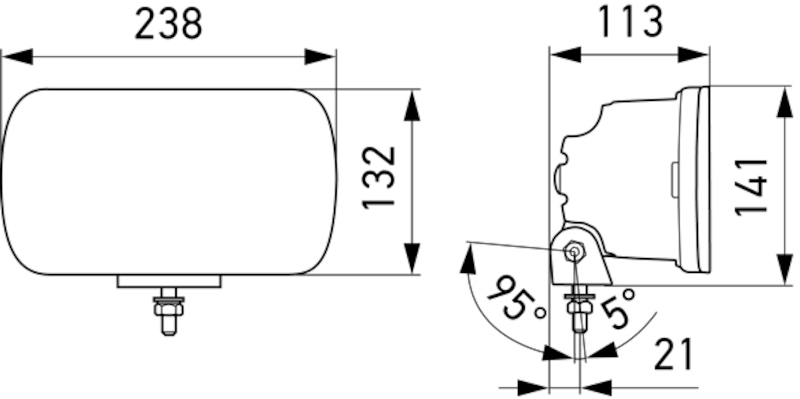

Fitting Depth [mm]	23
Width [mm]	238
Voltage [VDC]	24
Cable Length [in]	31.5
Depth (in.)	4.45
Height (in.)	5.2
Overall Height [in]	5.55
Cable Length [mm]	800
Width [in]	9.37
Housing Color	Black
Diffusing Lens Type	Clear Diffusing Lens
Lens Color	Crystal Clear
Registration Type	ECE Approved
Test Mark	ECE-R148
Lamp Type	LED
Light Design	LED
Fitting Position	Left
Mounting Type	Mounting
Diffusing Lens Material	Plastic
ECE Regulation	R148
Shape	Rectangular
Fastening Type	Swivelling Mounting Bracket
Housing Type	Synthetic Material Housing
Light Color	White
Supplementary Article/Supplementary Info	with LED
Number of light functions	2
Overall Height [mm]	141
Height [mm]	132
Depth [mm]	113
Quantity	1
Fitting Depth [in]	0.91
Assy/Disassy by Qualified Personnel Required!	.
Country of Origin	RO
