ICON Vehicle Dynamics Coilover Set - 58615-700

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle

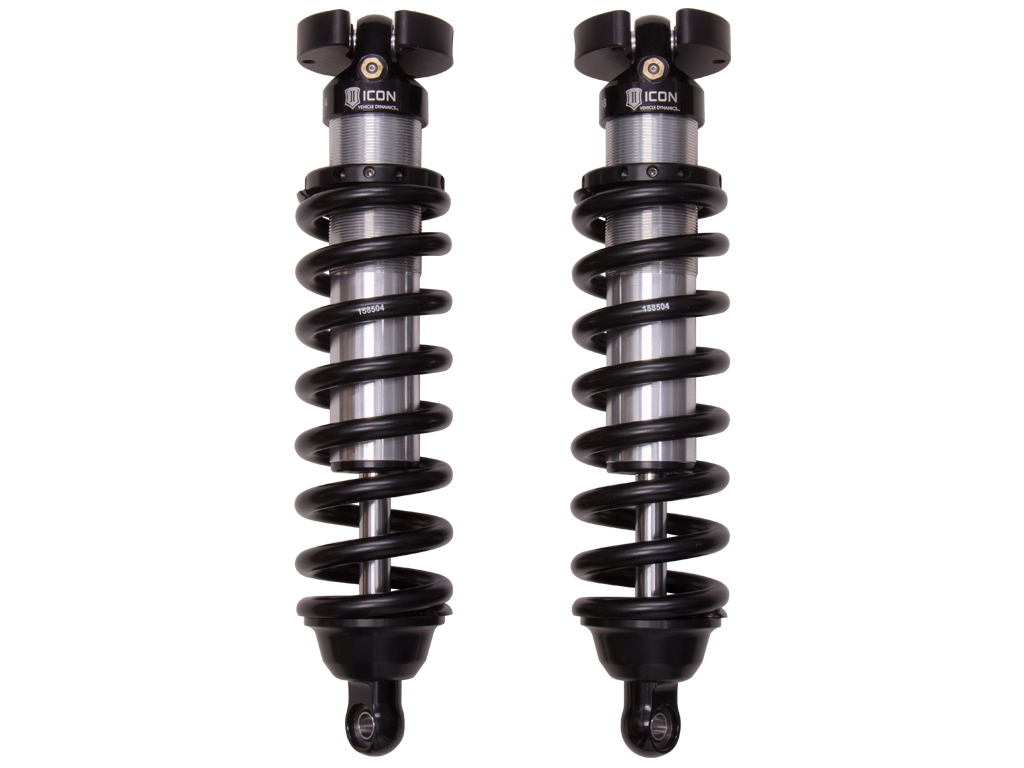

96-04 TACOMA/96-02 4RUNNER EXT TRAVEL 2.5 VS IR COILOVER KIT 700LB
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 58615-700
Old price: $1,812.67
$1,726.35
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner. These adjustable coilovers allow up to 0-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma or Toyota 4Runner.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Active or Passive Suspension Passive
Adjustable Compression No
Dust Shield Included No
Adjustable Damping No
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
California Prop 65 Warning Yes
Coil-Over Springs Included Yes
Add-On Part 198001 - BILLET SPANNER WRENCH KIT, 58400DJ - 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT, 51045 - TOYOTA .25” BUMP STOP SPACER KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 58500DJ - 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT
Maximum Ride Height Raising Distance 3
Minimum Lift 0
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset, ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset
Remote Reservoir No
Reservoir Style Internal
Self-Leveling No
Service Parts 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL, 611019 - COILOVER HARDWARE KIT PAIR, 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT, 252010 - 2.5 IFP REBUILD KIT, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252001 - 2.5 FIXED SPANNER WRENCH, 252003 - SEAL INSTALL TOOL 2.5/3.0, 252004 - ECONOMY NEEDLE CHARGING TOOL, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter 0.875
Shock Absorber Body End Measuring Point Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point Center of Eylet
Spring Color Black
Spring Material Steel
Spring Rate Type Linear
Travel Length 5.36
Upper Mount Type Mounting Plate
Valving Type Digressive
Adjustable Rebound No
Adjustable Ride Height Yes
Assembled Yes
Body Diameter 2.5
Compressed Length 14.5
Cylinder Color Silver
Cylinder Finish Cadmium Plated
Cylinder Material Steel
Damping Type Oil
Extended Length 19.85
Front Spring Rate 700
Gas Charged Yes
Grade Type Performance
Includes Bump Stop No
Internal Construction Type Single Tube
Lower Mount Type Eyelet
Material Steel, Aluminum
Maximum Lift 3
Country of Origin US
Condition New
