ICON Vehicle Dynamics Coilover Set - 58635

Name: ICON Vehicle Dynamics Coilover Set - 58635
SKU: 58635
Price: 1518.35 USD
Availability: InStock

05-23 TACOMA EXT TRAVEL 2.5 VS IR COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 58635

Old price: $1,594.27

Price: $1,518.35

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

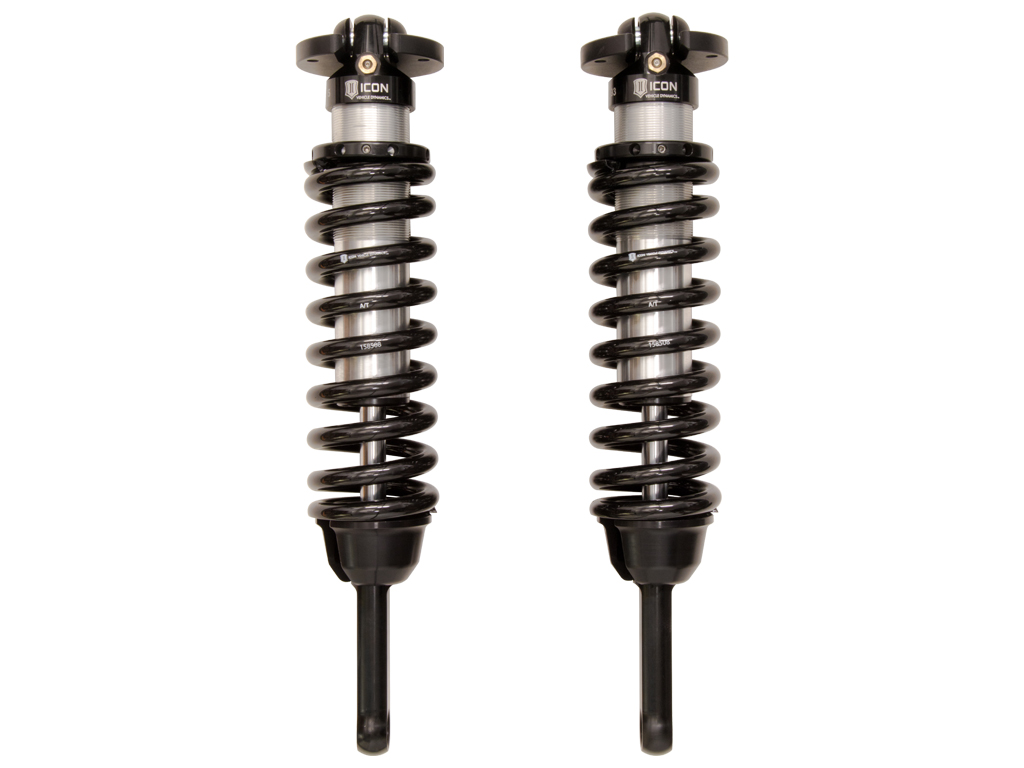

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Add-On Part	191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 198001 - BILLET SPANNER WRENCH KIT, 51051 - 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KIT
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	17.42
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Type	Oil
Dust Shield Included	No
Extended Length	22.57
Front Spring Rate	650
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Aluminum
Maximum Lift	3.5
Maximum Ride Height Raising Distance	3.5
Minimum Lift	0
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset, ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset
Remote Reservoir	No
Reservoir Style	Internal
Self-Leveling	No
Service Parts	611019 - COILOVER HARDWARE KIT PAIR, 252003 - SEAL INSTALL TOOL 2.5/3.0, 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL, 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT, 252001 - 2.5 FIXED SPANNER WRENCH, 252004 - ECONOMY NEEDLE CHARGING TOOL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252010 - 2.5 IFP REBUILD KIT
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	5.16
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Country of Origin	US
Condition	New
