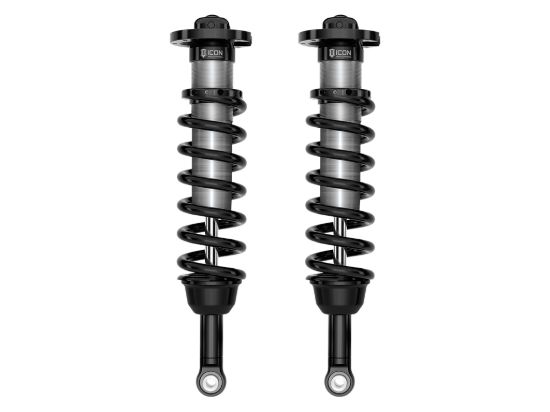

ICON Vehicle Dynamics Coilover Set - 58692

Name: ICON Vehicle Dynamics Coilover Set - 58692
SKU: 58692
Price: 1499.95 USD
Availability: InStock

25 4RUNNER 4WD FRONT 2.5 VS IR COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 58692

Old price: $1,574.95

Price: $1,499.95

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2025 Toyota 4Runner. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop on 4WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
Damping Type	Oil
Active or Passive Suspension	Passive
Cylinder Material	Steel
Add-On Part	191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5), 58452DJ - 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R TUBULAR UCA DJ PRO KIT, 198001 - BILLET SPANNER WRENCH KIT, 58552GDJ - 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R BILLET UCA DJ PRO KIT GOLD ANO, 58552DJ - 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R BILLET UCA DJ PRO KIT, 55160 - 24-25 TACOMA 4WD/24-25 LC250/25 T4R 4WD FRONT DIFF DROP KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Cylinder Finish	Cadmium Plated
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	19.2
Cylinder Color	Silver
Dust Shield	NO
Dust Shield Included	No
Extended Length	24.85
Front Spring Rate	550
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	Yes
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Steel, Aluminum
Maximum Lift	3
Maximum Ride Height Raising Distance	3
Minimum Lift	1.25
OEM Wheels & Tires Fitment	Yes
Remote Reservoir	No
Reservoir Style	Internal
Self-Leveling	No
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	5.65
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Country of Origin	US
Condition	New
