ICON Vehicle Dynamics Coilover Set - 58716-700

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
96-02 4RUNNER EXT TRAVEL 2.5 VS RR COILOVER KIT 700LB
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 58716-700
Old price: $2,183.95
$2,079.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

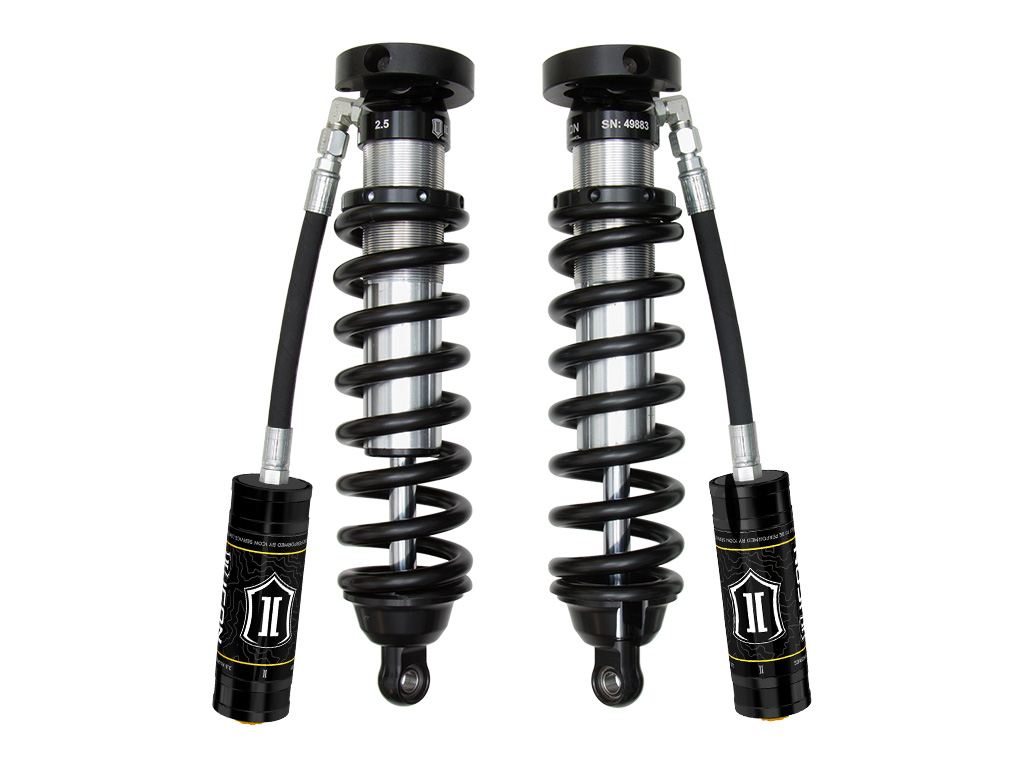

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2002 Toyota 4Runner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5" Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 4Runner.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
AAP_UDA_4 55
AAP_UDA_22 1
AAP_UDA_12 EA
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
California Prop 65 Warning Yes
Coil-Over Springs Included Yes
Adjustable Compression No
Dust Shield Included No
Adjustable Damping No
Active or Passive Suspension Passive
Add-On Part 252012 - -4 TO -10 HOSE SHIELD KIT, 51045 - TOYOTA .25” BUMP STOP SPACER KIT, 58400DJ - 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 198001 - BILLET SPANNER WRENCH KIT, 58500DJ - 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Gas Charged Yes
Grade Type Performance
Includes Bump Stop No
Internal Construction Type Single Tube
Lower Mount Type Eyelet
Material Steel, Aluminum
Maximum Lift 3
Maximum Ride Height Raising Distance 3
Minimum Lift 0
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
Remote Reservoir Yes
Reservoir Style Remote
Self-Leveling No
Service Parts 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT, 252001 - 2.5 FIXED SPANNER WRENCH, 191016 - 7.5" FINNED RESI UPGRADE KIT, 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 611019 - COILOVER HARDWARE KIT PAIR, 252003 - SEAL INSTALL TOOL 2.5/3.0, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter 0.875
Shock Absorber Body End Measuring Point Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point Center of Eylet
Spring Color Black
Spring Material Steel
Spring Rate Type Linear
Travel Length 5.36
Upper Mount Type Mounting Plate
Valving Type Digressive
Adjustable Rebound No
Adjustable Ride Height Yes
Assembled Yes
Body Diameter 2.5
Compressed Length 14.5
Cylinder Color Silver
Cylinder Finish Cadmium Plated
Cylinder Material Steel
Damping Type Oil
Extended Length 19.85
Front Spring Rate 700
Country of Origin US
Condition New
🚗 Compatible with
7 vehicles are compatible with this product · 1996–2002
