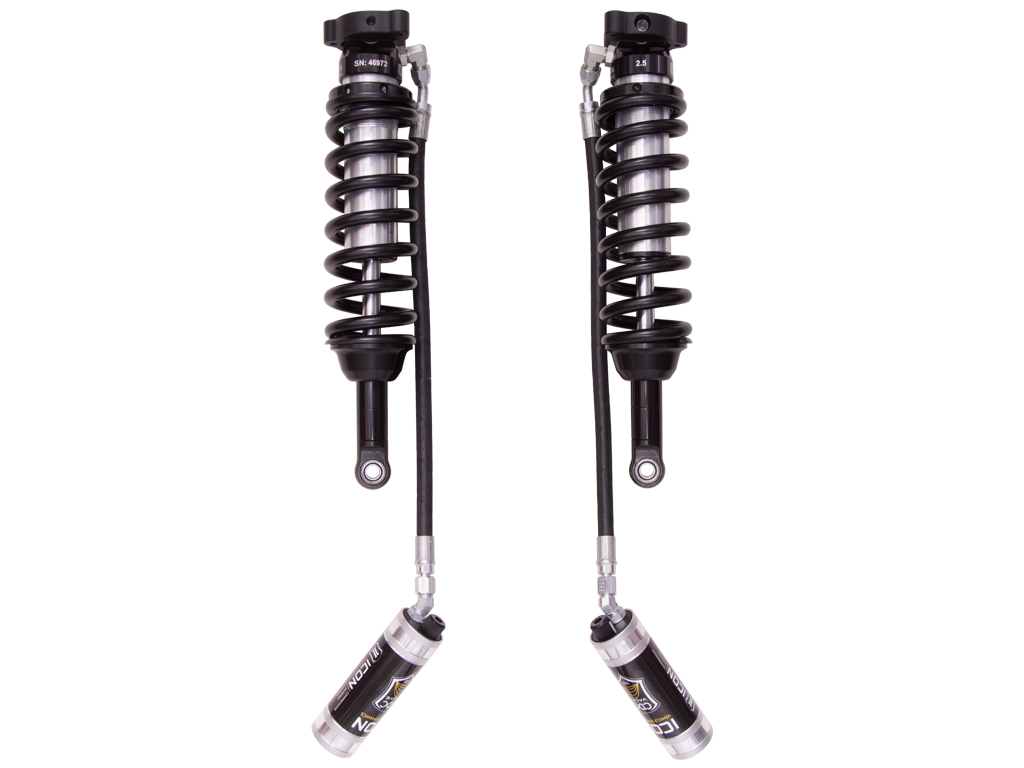

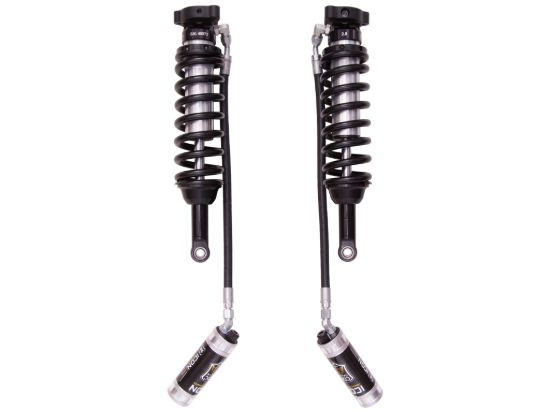

ICON Vehicle Dynamics Coilover Set - 71510C

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
15-22 COLORADO 2.5 VS RR CDCV COILOVER KIT
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 71510C
Old price: $2,395.68
$2,281.60
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

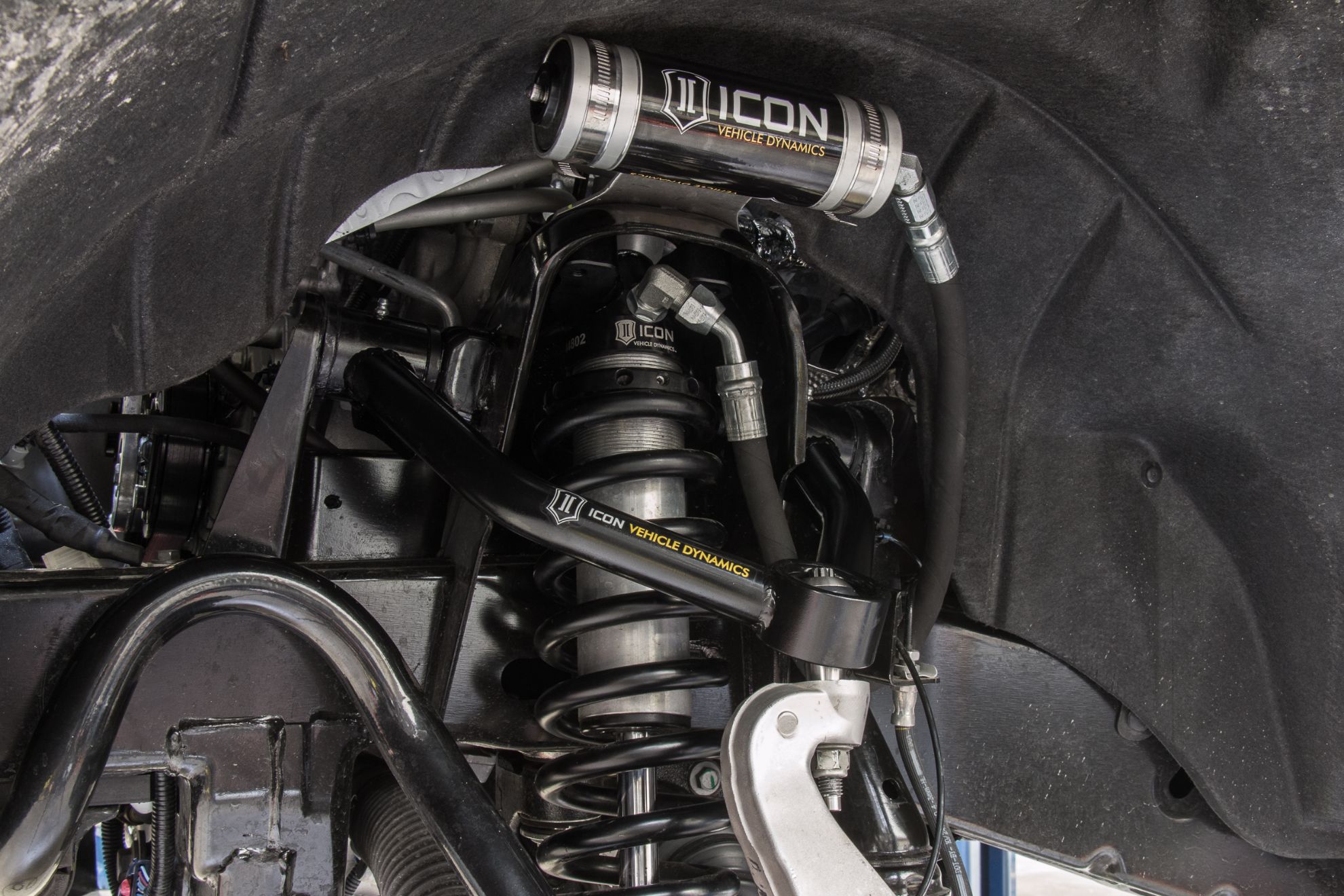

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2015-2022 Colorado / Canyon truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.75-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Colorado / Canyon.

Note: Factory Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
Add-On Part 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 198001 - BILLET SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Compression Yes
Adjustable Damping Yes
Adjustable Rebound No
Adjustable Ride Height Yes
Assembled Yes
Body Diameter 2.5
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included Yes
Compressed Length 16.05
Cylinder Color Silver
Cylinder Finish Cadmium Plated
Cylinder Material Steel
Damping Adjustment Type Manual
Damping Type Oil
Dust Shield Included No
Extended Length 21
Front Spring Rate 650
Gas Charged Yes
Grade Type Performance
Includes Bump Stop No
Internal Construction Type Single Tube
Lower Mount Type Eyelet
Material Steel, Aluminum
Maximum Lift 3
Maximum Ride Height Raising Distance 3
Minimum Lift .75
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 32" x 11.00" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
Remote Reservoir Yes
Active or Passive Suspension Passive
AAP_UDA_4 55
AAP_UDA_22 1
AAP_UDA_12 EA
Reservoir Style Remote
Self-Leveling No
Service Parts 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT, 191016 - 7.5" FINNED RESI UPGRADE KIT, 252001 - 2.5 FIXED SPANNER WRENCH, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL, 611019 - COILOVER HARDWARE KIT PAIR, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252003 - SEAL INSTALL TOOL 2.5/3.0
Shaft Diameter 0.875
Shock Absorber Body End Measuring Point Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point Center of Eylet
Spring Color Black
Spring Material Steel
Spring Rate Type Linear
Travel Length 4.95
Upper Mount Type Eyelet
Valving Type Digressive
Country of Origin US
Condition New
🚗 Compatible with
16 vehicles are compatible with this product · 2015–2022
