ICON Vehicle Dynamics Coilover Set - 91800C

Name: ICON Vehicle Dynamics Coilover Set - 91800C
SKU: 91800C
Price: 2345.88 USD
Availability: InStock

09-13 F150 4WD 1.75-2.63 2.5 VS CDCV COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 91800C

Old price: $2,463.17

Price: $2,345.88

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

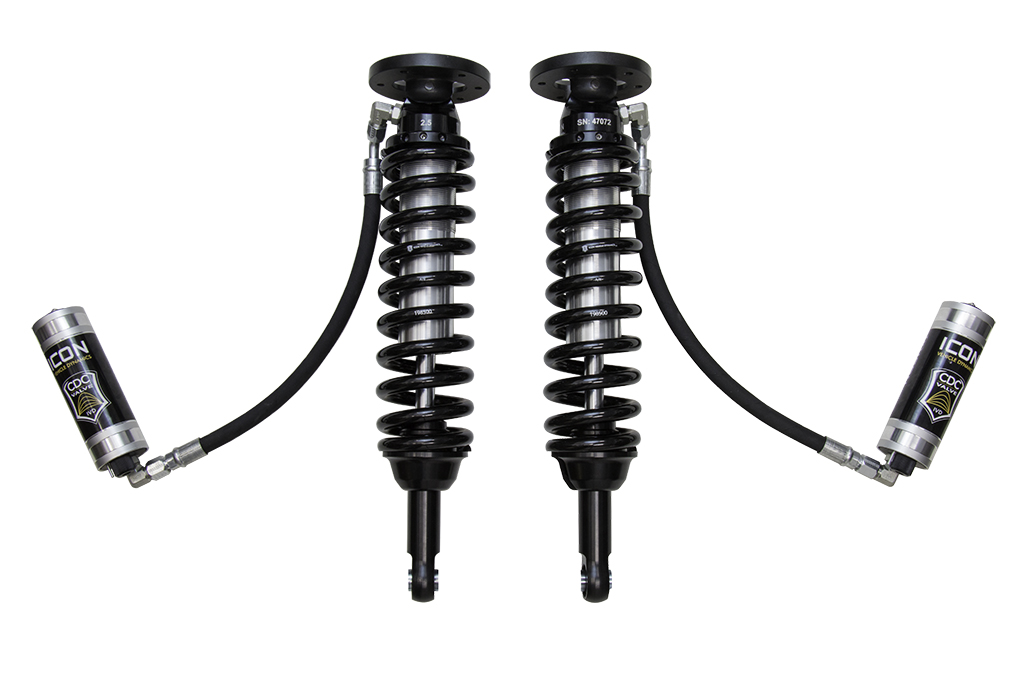

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2009-2013 Ford F150 4WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.75-2.63” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of adjustment from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Ford F150 4WD.

Note: Factory Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Adjustable Compression	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Dust Shield Included	No
Add-On Part	98500DJ - 04-20 F150/14-UP EXPEDITION TUBULAR UCA DJ KIT, 198001 - BILLET SPANNER WRENCH KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 98505DJ - 09-20 F150/14-20 EXPEDITION BILLET UCA DJ KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5), 97720CP - 09-24 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB CDCV PAIR
Adjustable Damping	Yes
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
Compressed Length	17.87
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Type	Oil
Extended Length	23.23
Front Spring Rate	600
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	Yes
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Steel, Aluminum
Maximum Lift	2.63
Maximum Ride Height Raising Distance	2.63
Minimum Lift	1.75
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset, ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset, ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Service Parts	252001 - 2.5 FIXED SPANNER WRENCH, 252003 - SEAL INSTALL TOOL 2.5/3.0, 191016 - 7.5" FINNED RESI UPGRADE KIT, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL, 611019 - COILOVER HARDWARE KIT PAIR, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	5.37
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Country of Origin	US
Condition	New
