ICON Vehicle Dynamics Suspension Lift Kit - K40016DX

Name: ICON Vehicle Dynamics Suspension Lift Kit - K40016DX
SKU: K40016DX
Price: 8609.23 USD
Availability: OutOfStock

21-23 BRONCO SASQ 2-3" LIFT STAGE 6 SUSPENSION SYSTEM CDXS BILLET HEAVY RATE

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K40016DX

Old price: $9,039.70

Price: $8,609.23

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

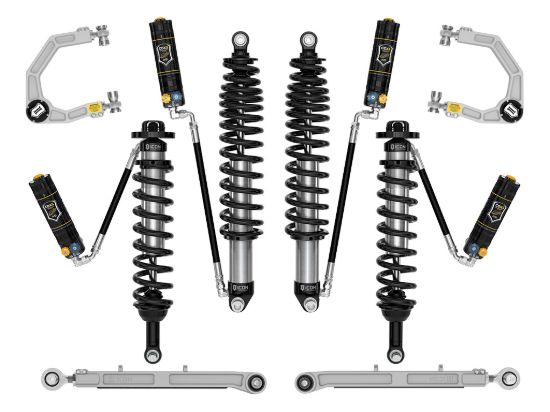

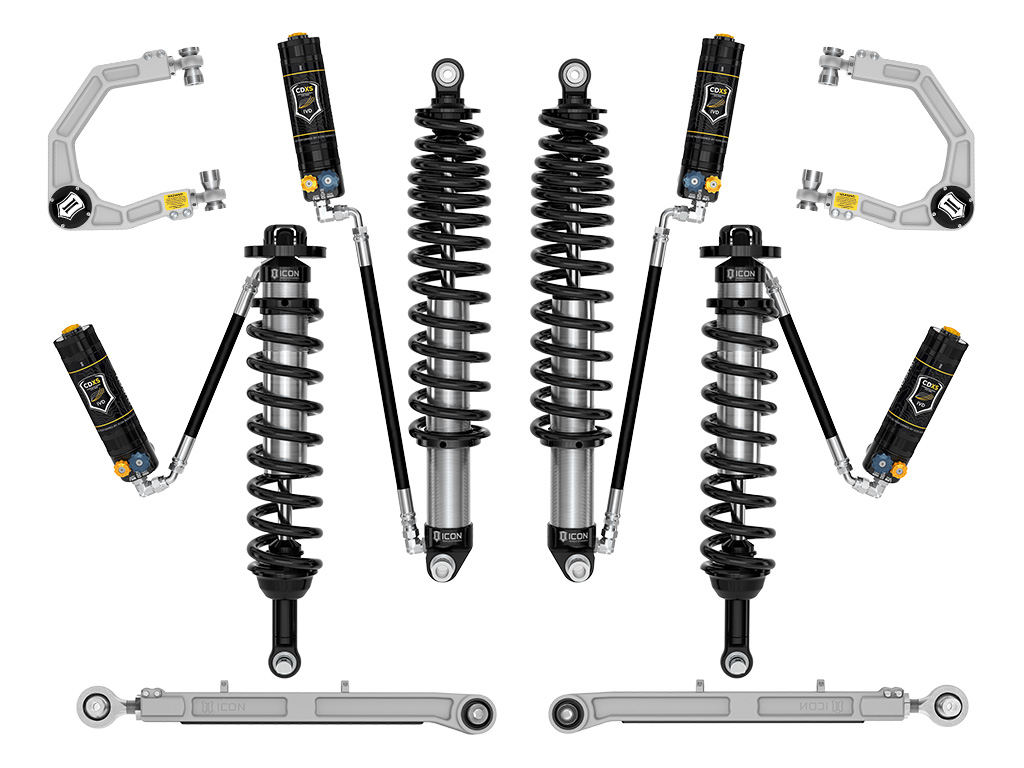

The ICON Vehicle Dynamics Stage 6 Suspension System for the 2021-2023 Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks with CDXS to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 2-3” of front lift and 1.25-2.25” of rear lift over stock 4-door Broncos equipped with the Sasquatch Package. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade, ensuring sustained shock performance at speed through rough terrain.

Note: OEM Wheels & Tires Fitment: No

Products specifications

Attribute name	Attribute value
AAP_UDA_22	1
Minimum Lift Rear	1.25
Coils Quantity Front	2
Coils Quantity Rear	2
Minimum Lift Front	2
Maximum Lift Rear	2.25
Front Shock Body Diameter	2.5
Rear Shock Body Diameter	2.5
Maximum Lift	3
Maximum Lift Front	3
Recommended Aftermarket Tires	35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)
AAP_UDA_4	55
Spring Color	Black
Damping Adjustment Type	Dual Speed/Manual
AAP_UDA_12	EA
Recommended Aftermarket Wheels	ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset, ICON Alloys - 17x8.5" w/ 4.75” BS / 0mm Offset, ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
Adjustable Rebound	No
OEM Wheels & Tires Fitment	No
Active or Passive Suspension	Passive
Grade Type	Performance
Rear Spring Rate Type	Progressive Dual Rate
Reservoir Style	Remote
Coil Spring End 1 Type	Square
Coil Spring End 2 Type	Square
Spring Material	Steel
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushings Included	Yes
Mounting Hardware Included	Yes
Shocks Included	Yes
Adjustable Compression	Yes
Adjustable Control Arm	yes
Adjustable Damping	Yes
California Prop 65 Warning	Yes
Add-On Part	191013 - NIPPLE GREASING ADAPTER KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 611074 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 3/8" TALL, 198001 - BILLET SPANNER WRENCH KIT, 44200T - 21-23 BRONCO REAR ADJ TRACK BAR KIT, 191014 - .25" COLLAR SPANNER PIN WRENCH, 45212 - 21-23 BRONCO XD TIE ROD KIT, 611075 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 1/2" TALL, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Front Spring Rate Type	Linear
Country of Origin	US
Condition	New
