ICON Vehicle Dynamics Suspension Lift Kit - K53233

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53233
SKU: K53233
Price: 2605.37 USD
Availability: OutOfStock

23-25 SEQUOIA 3-3.75" STAGE 3 SUSPENSION SYSTEM

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53233

Old price: $2,735.63

Price: $2,605.37

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

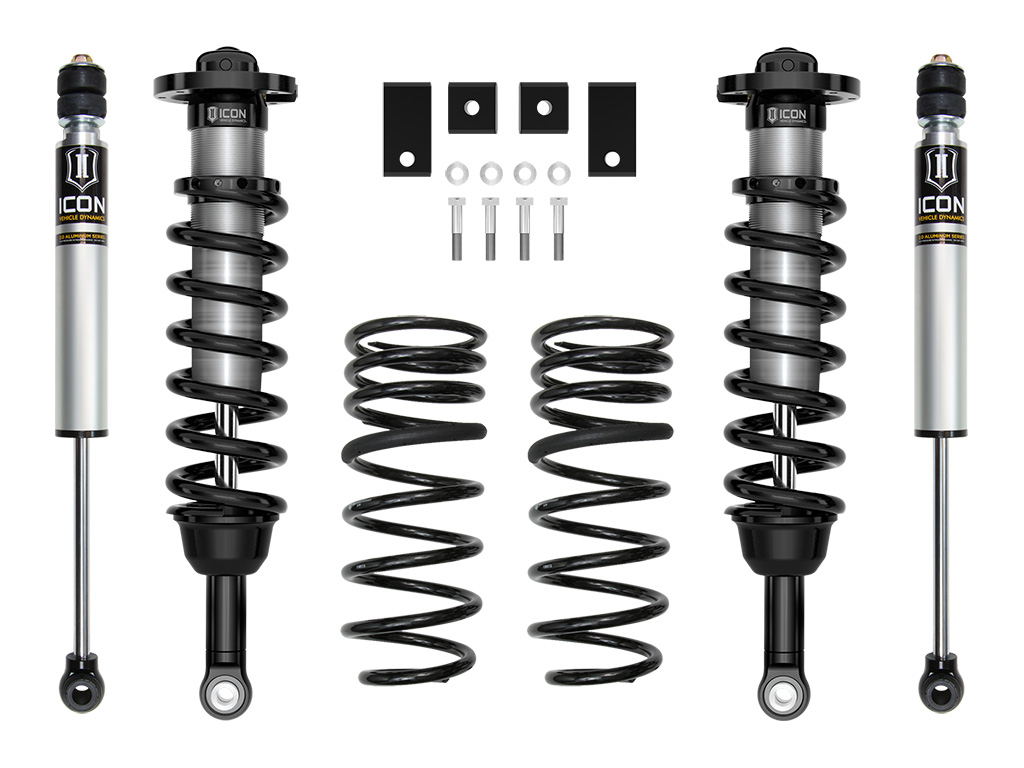

The ICON Vehicle Dynamics Stage 3 complete suspension system for the 2023-2025 Toyota Sequoia is our most basic system that features complete ICON threaded-body V.S. 2.5 Series Coilovers in the front, providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks and sway bar drop kit for the front of the truck along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
Bushings Included	Yes
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Active or Passive Suspension	Passive
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
California Prop 65 Warning	Yes
Minimum Lift Rear	0
Rear Shock Body Diameter	2
Front Shock Body Diameter	2.5
Maximum Lift	3
Maximum Lift Rear	3
Minimum Lift Front	3
Maximum Lift Front	3.75
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Spring Color	Black
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset, ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Front Reservoir Style	Internal
Rear Reservoir Style	Internal
Reservoir Style	Internal
Grade Type	Performance
Rear Spring Rate Type	Progressive Dual Rate
Spring Material	Steel
Mounting Hardware Included	Yes
Shocks Included	Yes
OEM Wheels & Tires Fitment	Yes
Front Spring Rate Type	Linear
Add-On Part	198001 - BILLET SPANNER WRENCH KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 58561DJ - 22-25 TUNDRA/23-25 SEQUOIA BILLET UCA DJ PRO KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 58461DJ - 22-25 TUNDRA/23-25 SEQUOIA TUBULAR UCA DJ PRO KIT
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Coils Quantity Front	2
Coils Quantity Rear	2
Country of Origin	US
Condition	New
