ICON Vehicle Dynamics Suspension Lift Kit - K53241S

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53241S
SKU: K53241S
Price: 7699.71 USD
Availability: InStock

23-25 SEQUOIA 3-4.5" STAGE 11 SUSPENSION SYSTEM BILLET (TRD)

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53241S

Old price: $8,084.70

Price: $7,699.71

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

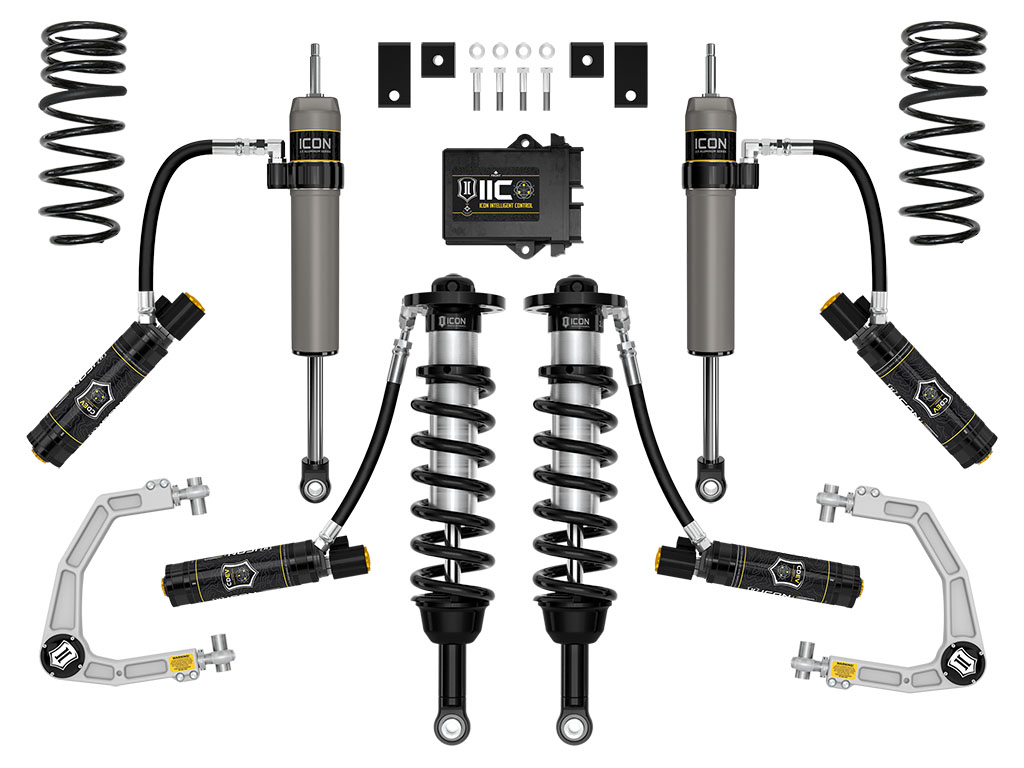

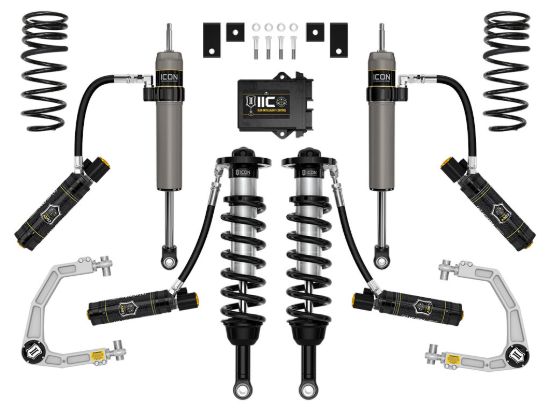

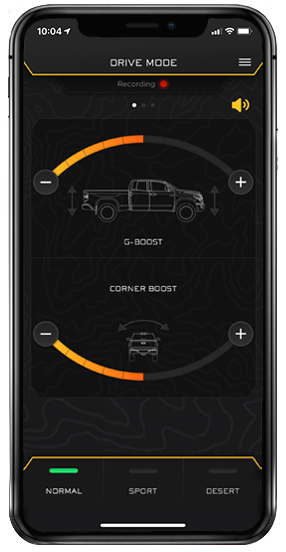

The ICON Vehicle Dynamics Stage 11 complete suspension system for the 2023-2025 Toyota Sequoia Is the first stage to include CDEV equipped 2.5 Series coilovers and rear shocks. This system offers improved on- and off-road performance, with active electronic shock damping adjustment, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Active
Adjustable Compression	Yes
Adjustable Control Arm	yes
Adjustable Damping	Yes
Adjustable Rebound	No
Bushings Included	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front	2
Coils Quantity Front	2
Coils Quantity Rear	2
Damping Adjustment Type	Electronic
Front Reservoir Style	Remote
Front Shock Body Diameter	2.5
Grade Type	Performance
Maximum Lift	4.5
Maximum Lift Front	4.5
Maximum Lift Rear	4
Minimum Lift Front	3
Mounting Hardware Included	Yes
OEM Wheels & Tires Fitment	Yes
Rear Reservoir Style	Remote
Rear Shock Body Diameter	2.5
Rear Spring Rate Type	Progressive Dual Rate
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Reservoir Style	Remote
Shocks Included	Yes
Spring Color	Black
Spring Material	Steel
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset, ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Add-On Part	198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 191014 - .25" COLLAR SPANNER PIN WRENCH, 252012 - -4 TO -10 HOSE SHIELD KIT, 191013 - NIPPLE GREASING ADAPTER KIT, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 198001 - BILLET SPANNER WRENCH KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
Front Spring Rate Type	Linear
Country of Origin	US
Condition	New
