ICON Vehicle Dynamics Suspension Lift Kit - K62595L

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
23 FORD F250/F350 GAS 2.5" STAGE 5 SUSPENSION SYSTEM W/ EXPANSION PACKS
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: K62595L
Old price: $6,400.46
$6,095.68
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

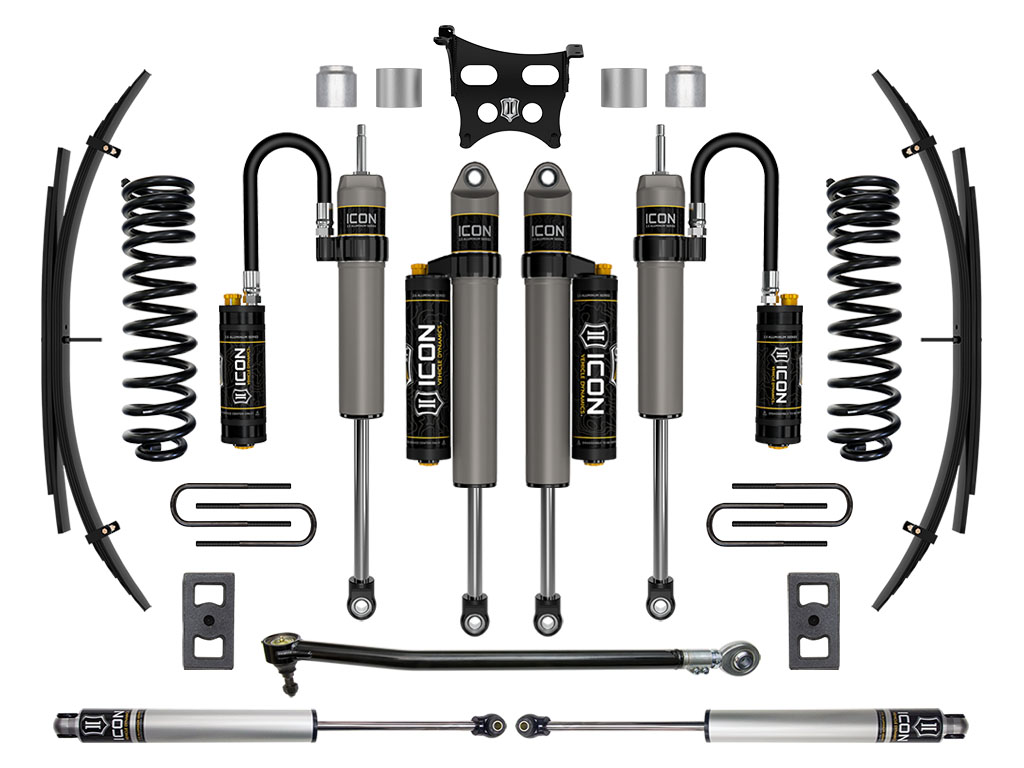

This ICON Vehicle Dynamics 2.5” suspension system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 5 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. ICON's Stage 5 System is comprised of dual rate coil springs optimized for trucks equipped with gasoline engines, dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers, on-vehicle adjustable front track bar, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.5 Aluminum Series CDCV remote reservoir front and CDCV piggyback reservoir rear shocks, for those desiring an easy way to tune the ride externally with 10 settings, from soft to hard. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Front Spring Rate Type Progressive Dual Rate
Grade Type Performance
Leaf Spring Color Black
Leaf Spring Leaf Quantity 7
Leaf Spring Material Steel
Maximum Lift 2.5
Maximum Lift Front 2.5
Maximum Lift Height Front 2.5
Maximum Lift Height Rear .5
Maximum Lift Rear .5
Minimum Lift Front 1.5
Mounting Hardware Included Yes
OEM Wheels & Tires Fitment Yes
Rear Reservoir Style Piggyback
Rear Shock Body Diameter 2.5
Recommended Aftermarket Tires 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset, ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Shocks Included Yes
Spring Color Black
Spring Material Steel
Active or Passive Suspension Passive
Add-On Part 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT, 611081 - F-SERIES DYNAMIC HEADLAMP REAR SENSOR KIT, 61111 - 17-25 FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT, 191014 - .25" COLLAR SPANNER PIN WRENCH
Adjustable Compression Yes
Adjustable Damping Yes
Adjustable Rebound No
Bushings Included Yes
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front 2
Coil Spring Color Black
Coil Spring Material Steel
Coils Quantity Front 2
Damping Adjustment Type Manual
Front Reservoir Style Remote
Front Shock Body Diameter 2.5
Country of Origin US
Condition New
🚗 Compatible with
2 vehicles are compatible with this product · 2023–2023
