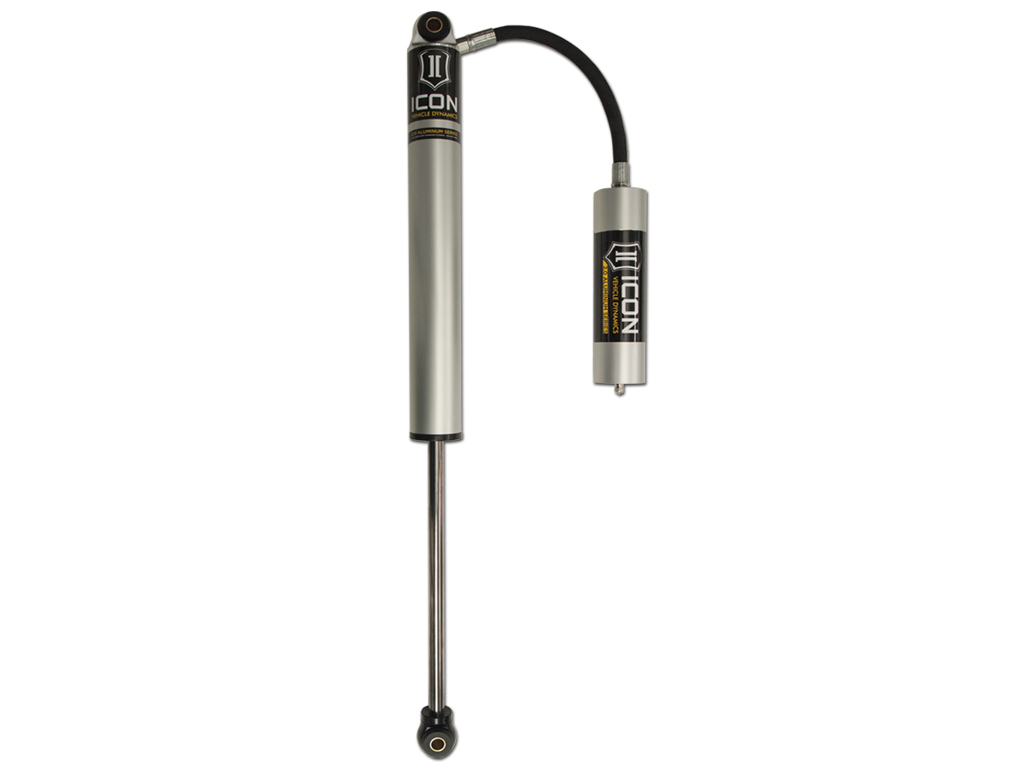

ICON Vehicle Dynamics Suspension Shock Absorber - 206511R

Name: ICON Vehicle Dynamics Suspension Shock Absorber - 206511R
SKU: 206511R
Price: 308.95 USD
Availability: InStock

UNIVERSAL 7.5" TRAVEL 2.0 RR IFSV

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 206511R

Old price: $324.40

Price: $308.95

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades. The 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.

Application: ICON UNIVERSAL 7.5" TRAVEL 2.0 RR IFSV

Note: TECH NOTE: Not application specific and may require custom fabrication to mount to vehicle.

Products specifications

Attribute name	Attribute value
AAP_UDA_4	55
Body Color	Gray
Body Diameter	2
Boot Included	No
AAP_UDA_22	1
AAP_UDA_12	EA
Adjustable	No
Adjustable Damping	No
Bushing Color	Black
Bushing Included	yes
Bushing Material	Polyurethane
Mounting Width	1.5" x 1/2" Bolt (Upper&Lower)
Lower Mount Type	Eyelet
Upper Mount Type	Eyelet
Cylinder Color	Grey
Mounting Hardware Included	No
Dust Shield Included	No
Includes Bump Stop	No
Hydraulic Lockout	No
Coil-Over Springs Included	No
Dust Shield	NO
Damping Type	Oil
Grade Type	Performance
Internal Construction Type	Single Tube
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Gas Charged	Yes
Remote Reservoir	Yes
Internal Rebound Bumper	Yes
California Prop 65 Warning	Yes
Compressed Length	11.55
Extended Length	19
Travel Length	7.45
Shock Stroke	7.45
Finish	Anodized
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Shock Absorber Body End Measuring Point	CENTER OF EYELET
Add-On Part	252012 - -4 TO -10 HOSE SHIELD KIT, 614600 - 2.0 ICON BILLET RESI CLAMP KIT
Cylinder Material	Aluminum
Service Parts	254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Country of Origin	US
Condition	New
Quantity per Application	2
