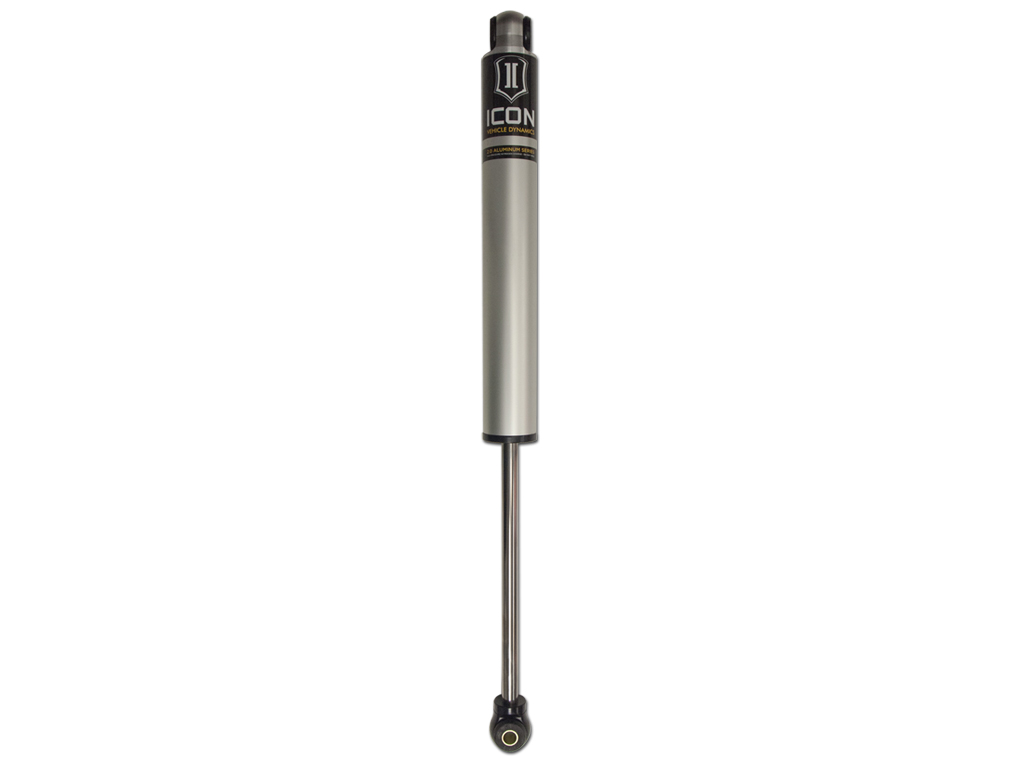

ICON Vehicle Dynamics Suspension Shock Absorber - 56502

96-04 TACOMA 4WD 0-1.5" REAR 2.0 VS NR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 56502

Old price: $205.43

Price: $195.65

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable.

Note: APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle

Products specifications

Attribute name	Attribute value
Active or Passive Suspension	Passive
Add-On Part	614700 - 2.0 SHOCK BOOT KIT (EACH)
Adjustable Compression	No
Adjustable Rebound	No
Adjustable Ride Height	No
Attributed Description	ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 12.975 IN; Fully Open Length: 21.80 IN; Shock Stroke: 8.82 IN; Travel Length: 8.82 IN
Body Color	Gray
Body Diameter	2
Body Material	Aluminum
Boot Included	No
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Bushing Included	yes
Bushing Material	Polyurethane
Adjustable Damping	No
Bore Diameter	1.75
Bushing Color	Black
Maximum Ride Height Raising Distance	1.5
Cylinder Outside Diameter	2
Finish	Anodized
Cylinder Finish	Anodized
Quantity	1
Lower Mount Type	Eyelet
Dust Shield Included	No
Dust Boot Included	No
Dust Shield	NO
External Reservoir	No
Remote Reservoir	No
Damping Type	Oil
Grade Type	Performance
Configuration	Performance
Internal Construction Type	Single Tube
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Gas Charged	Yes
Internal Rebound Bumper	Yes
California Prop 65 Warning	Yes
Internal Rebound Spring	No
Coil Spring Insulator(s) Included	No
Includes Bump Stop	No
Hydraulic Lockout	No
Coil-Over Springs Included	No
Cylinder Color	Gray
Mounting Hardware Included	No
Color	Black, Silver, Gray
Material	Steel, Aluminum
Rod Diameter	.625
Self-Leveling	No
Suspension Type	Spring
Shaft Diameter	0.625
Shock Absorber Bore Size	1.75
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Shock Absorber Body End Measuring Point	CENTER OF EYELET
Reservoir Type	Emulsion
Upper Mount Type	Eyelet
Valving Type	Digressive, Linear
Service Parts	254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252004 - ECONOMY NEEDLE CHARGING TOOL
Shaft Material	Chrome
Cylinder Material	Aluminum
Country of Origin	US
Condition	New
Quantity per Application	2
