ICON Vehicle Dynamics Suspension Shock Absorber - 56522R

Name: ICON Vehicle Dynamics Suspension Shock Absorber - 56522R
SKU: 56522R
Price: 308.95 USD
Availability: OutOfStock

24-25 LC250/24-25 GX550 0-3" PASS REAR 2.0 VS RR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 56522R

Old price: $324.40

Price: $308.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

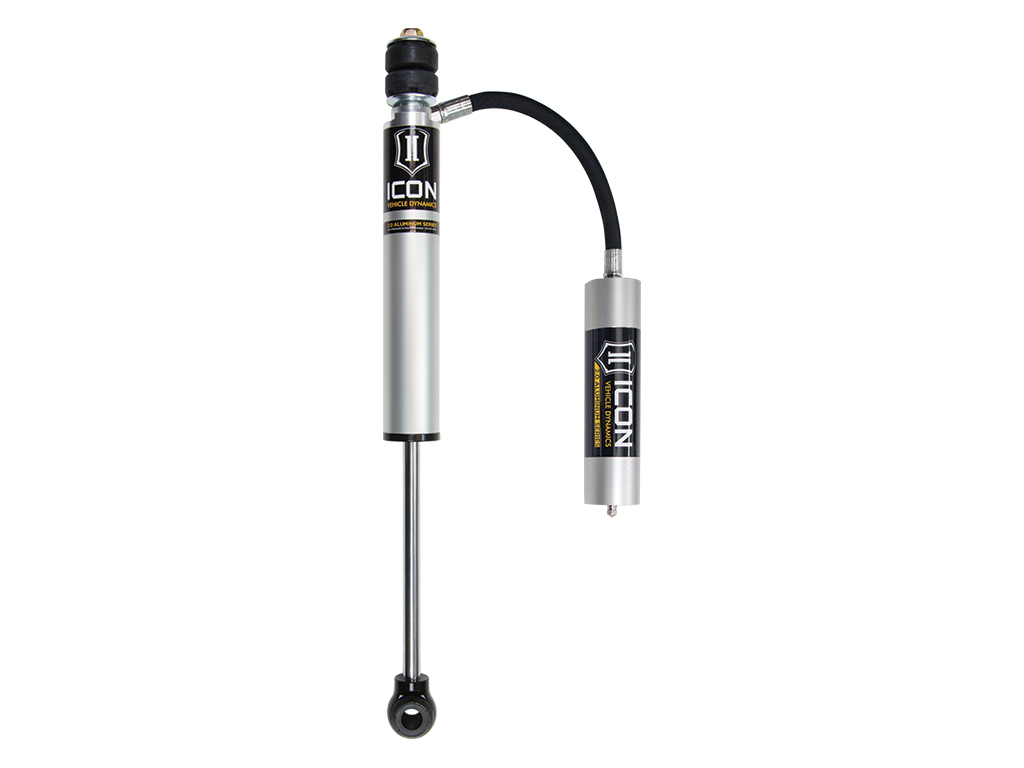

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Aluminum Series shock to handle extra abuse and punishment your suspension will need to endure.

Note: APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.

Products specifications

Attribute name	Attribute value
Active or Passive Suspension	Passive
Bushing Material	Polyurethane, Rubber
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Color	Gray, Silver
Cylinder Color	Gray
Cylinder Finish	Anodized
Cylinder Material	Aluminum
Cylinder Outside Diameter	2
Damping Type	Oil
Dust Boot Included	Yes
Dust Shield	NO
Dust Shield Included	Yes
Dust Shield Material	Rubber
External Reservoir	Yes
Finish	Anodized
Gas Charged	Yes
Grade Type	Performance
Hydraulic Lockout	No
Includes Bump Stop	No
Internal Construction Type	Single Tube
Internal Rebound Bumper	Yes
Internal Rebound Spring	No
Lower Mount Sleeve Inside Diameter	.75
Lower Mount Sleeve Overall Length	1.825
Lower Mount Type	Eyelet
Material	Aluminum, Steel
Maximum Ride Height Raising Distance	3
Minimum Ride Height Raising Distance	0
Mounting Hardware Included	No
Remote Reservoir	Yes
Reservoir Diameter	2
Reservoir Hose Inside Diameter	.25
Reservoir Hose Length	29
Reservoir Length	8
Reservoir Type	Remote
Rod Diameter	.625
Self-Leveling	No
Service Parts	202003 - 2.0 REMOTE RESI REBUILD KIT
Shaft Diameter	0.625
Shaft Material	Chrome
Shock Absorber Body End Measuring Point	Shoulder of Stem
Shock Absorber Bore Size	1.75
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Suspension Type	Spring
Upper Mount Type	Stem
Valving Type	Digressive, Linear
Add-On Part	56100 - 07-14 FJ/03-24 4RUNNER/22-24 TUNDRA/23-24 SEQUOIA REAR SHIN GUARDS, 56520R - 24-25 LC250/24-25 GX550 0-3" DRIVER REAR 2.0 VS RR, 52752 - 24-25 LC250/24-25 GX550 2" DUAL RATE REAR SPRING KIT, 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable	No
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Adjustable Ride Height	No
Body Color	Gray
Body Diameter	2
Body Material	Aluminum
Boot Color	Black
Boot Included	No
Bore Diameter	1.75
Bushing Color	Black
Bushing Included	yes
Country of Origin	US
Condition	New
Quantity per Application	2
