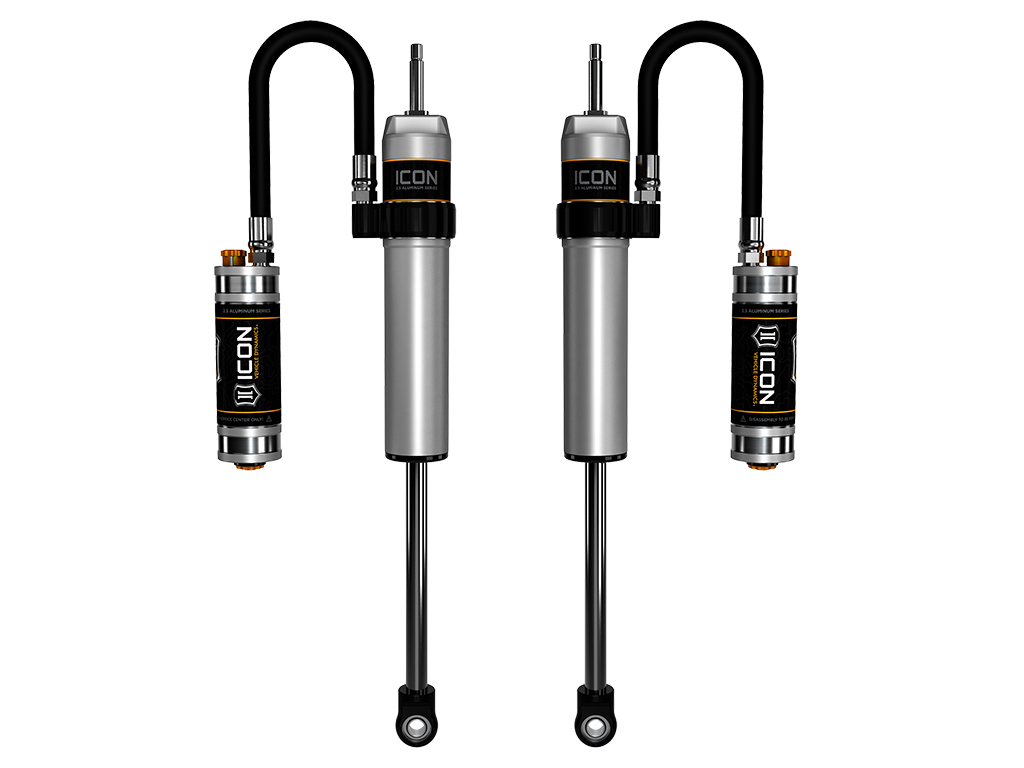

ICON Vehicle Dynamics Suspension Shock Absorber Set - 217803CP

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
14-UP RAM 2500 4.5" FRONT 2.5 VS RR CDCV PAIR
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 217803CP
Old price: $1,579.35
$1,504.15
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

Products specifications

Attribute name Attribute value
Add-On Part 252012 - -4 TO -10 HOSE SHIELD KIT
AAP_UDA_4 55
AAP_UDA_12 EA
AAP_UDA_22 1
Adjustable Yes
Boot Included No
Bore Diameter 2.25
Shaft Diameter 0.875
Grade Type Performance
Shock Absorber Body End Measuring Point Shoulder of Stem
Cylinder Color Silver
Upper Mount Type Stem
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Mounting Hardware Included Yes
Gas Charged Yes
California Prop 65 Warning Yes
External Reservoir Yes
Tube Outside Diameter 2.5
Cylinder Material Aluminum
Shock Absorber Rod End Measuring Point CENTER OF EYELET
Shaft Material Chrome
Lower Mount Type Eyelet
Damping Type Oil
Service Parts 252003 - SEAL INSTALL TOOL 2.5/3.0, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 611006 - 9/16 HD STEM BUSHING KIT, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252001 - 2.5 FIXED SPANNER WRENCH, 191016 - 7.5" FINNED RESI UPGRADE KIT, 257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Country of Origin US
Condition New
🚗 Compatible with
19 vehicles are compatible with this product · 2013–2022
Looking for fitment details? Add your vehicle and we'll show you instantly whether this part fits. + Add Vehicle
