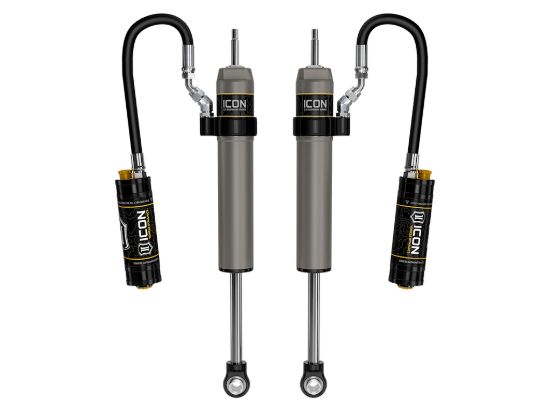

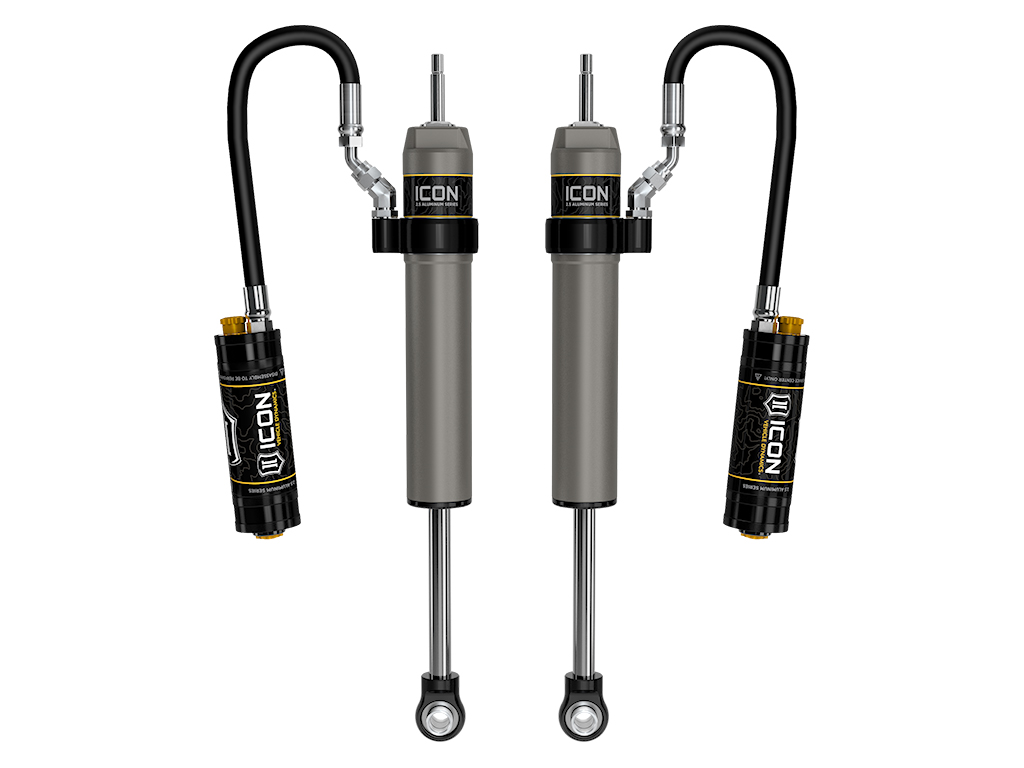

ICON Vehicle Dynamics Suspension Shock Absorber Set - 57827CP

22-23 LC 300 0-2" REAR 2.5 VS RR CDCV PAIR
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 57827CP
Old price: $1,625.13
$1,547.75
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

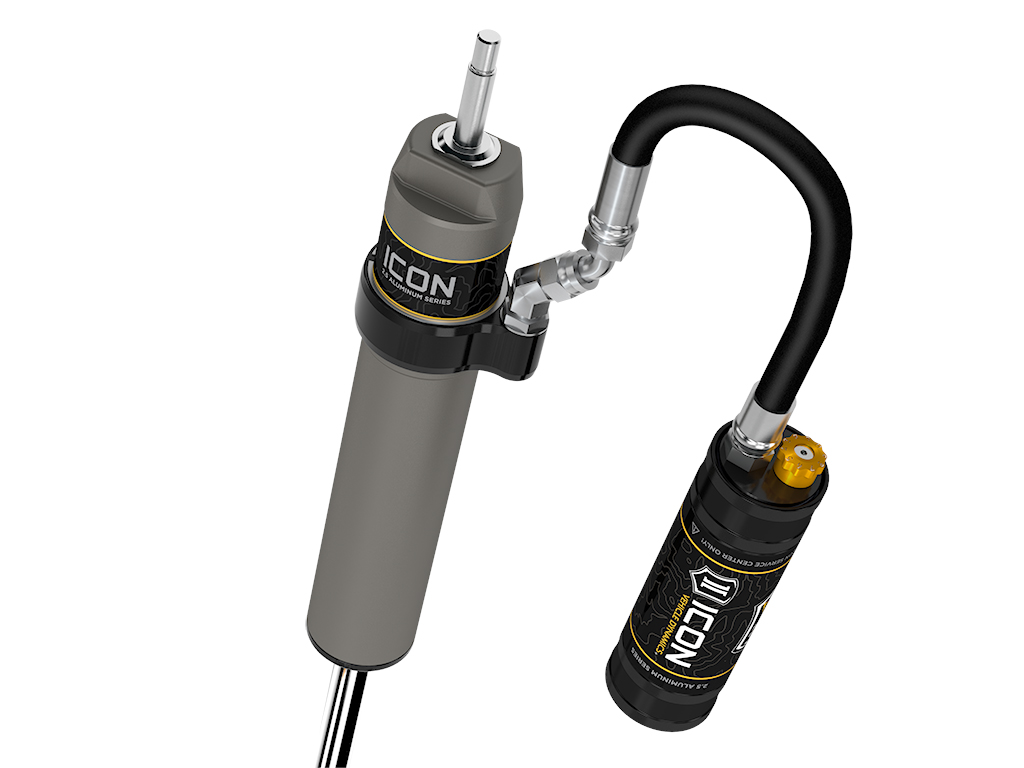

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series CDCV shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

Application: ICON 22-23 LC 300 0-2" REAR 2.5 VS RR CDCV PAIR

Note: TECH NOTE: Compatible with Land Cruiser 300 Series equipped with 0-2" of rear lift over stock

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Adjustable Damping Yes
Boot Included No
Bore Diameter 2.25
Shaft Diameter 0.875
Tube Outside Diameter 2.5
Cylinder Material Aluminum
Shock Absorber Rod End Measuring Point Center of Eylet
Shaft Material Chrome
Lower Mount Type Eyelet
Cylinder Color Grey
Damping Adjustment Type Manual
Damping Type Oil
Grade Type Performance
Shock Absorber Body End Measuring Point Shoulder of Stem
Upper Mount Type Stem
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Mounting Hardware Included Yes
Gas Charged Yes
California Prop 65 Warning Yes
External Reservoir Yes
Service Parts 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252003 - SEAL INSTALL TOOL 2.5/3.0, 611007 - 9/16 MEDIUM DUTY STEM BUSHING KIT, 191016 - 7.5" FINNED RESI UPGRADE KIT, 257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL, 252001 - 2.5 FIXED SPANNER WRENCH, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Add-On Part 252012 - -4 TO -10 HOSE SHIELD KIT, 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
Country of Origin US
Condition New
