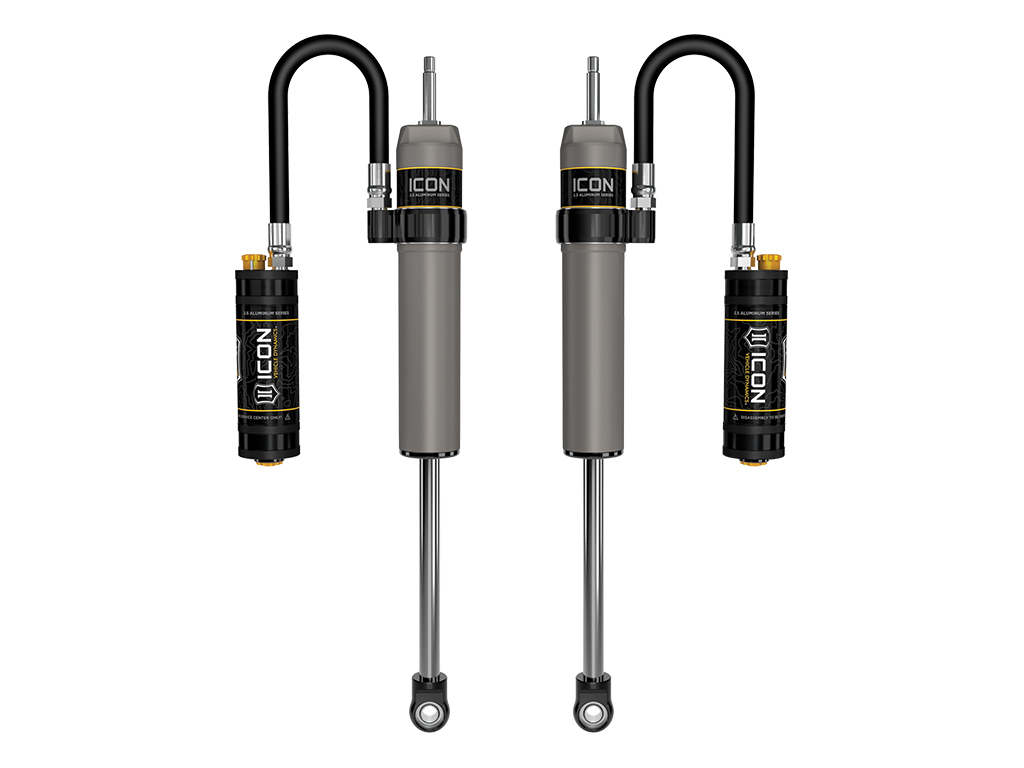

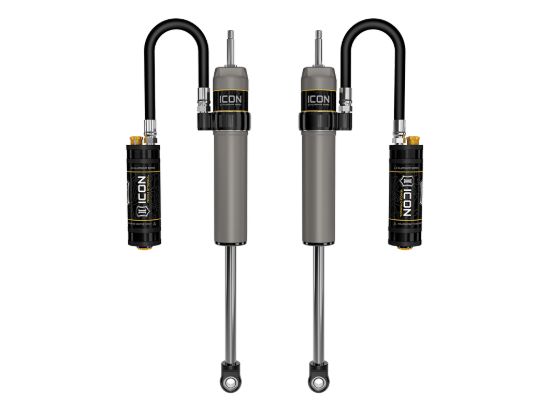

ICON Vehicle Dynamics Suspension Shock Absorber Set - 57870CP

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
24-25 LC250/24-25 GX550 0-3" REAR 2.5 VS RR CDCV PAIR
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 57870CP
Old price: $1,579.35
$1,504.15
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.

Note: APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.

Products specifications

Attribute name Attribute value
Adjustable Compression Yes
Adjustable Damping Yes
Adjustable Rebound No
Boot Included Yes
Bore Diameter 2.25
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color Gray
Cylinder Diameter 2.5
Cylinder Material Aluminum
Damping Adjustment Type Manual
Damping Type Oil
External Reservoir Yes
Gas Charged Yes
Grade Type Performance
Includes Bump Stop No
Lower Mount Type Eyelet
Mounting Hardware Included Yes
Reservoir Type Remote
Service Parts 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Shaft Diameter 0.875
Shaft Material Chrome
Shock Absorber Body End Measuring Point Shoulder of Stem
Shock Absorber Rod End Measuring Point Center of Eylet
Tube Outside Diameter 2.5
Upper Mount Type Stem
Valving Type Digressive
Active or Passive Suspension Passive
Add-On Part 56100 - 07-14 FJ/03-24 4RUNNER/22-24 TUNDRA/23-24 SEQUOIA REAR SHIN GUARDS, 252012 - -4 TO -10 HOSE SHIELD KIT, 52752 - 24-25 LC250/24-25 GX550 2" DUAL RATE REAR SPRING KIT
Adjustable Yes
Country of Origin US
Condition New
🚗 Compatible with
4 vehicles are compatible with this product · 2024–2025
