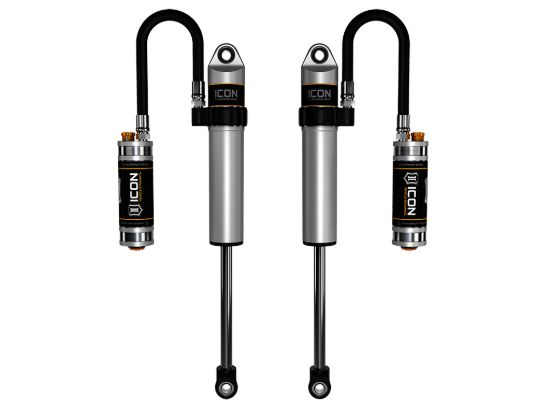

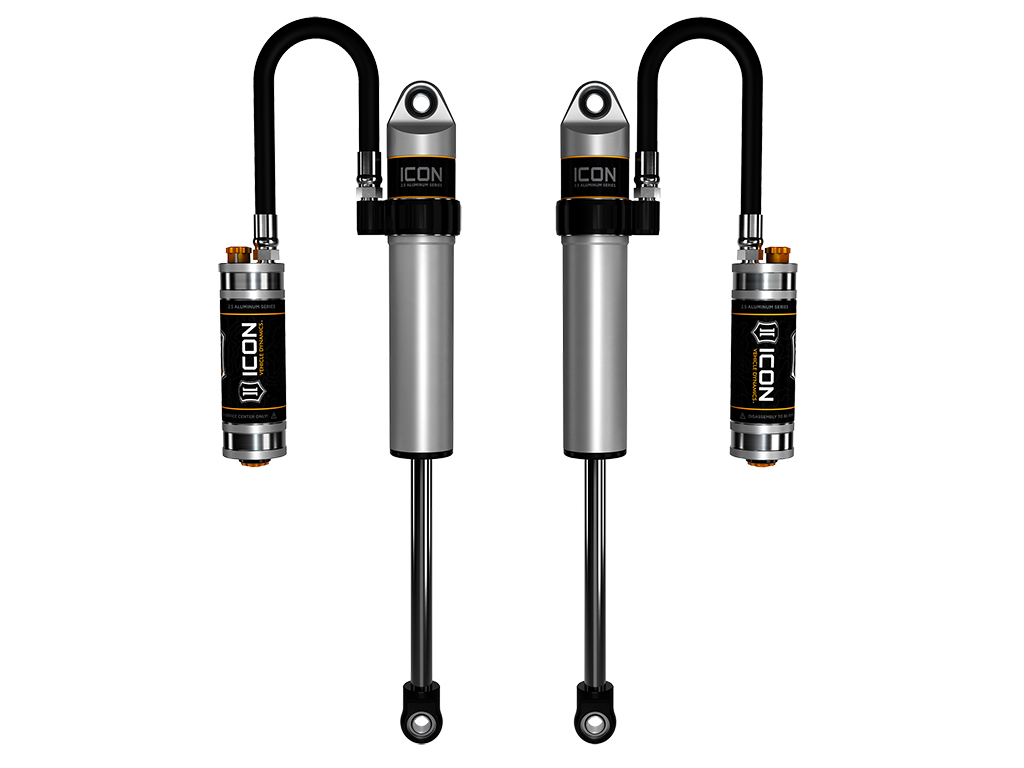

ICON Vehicle Dynamics Suspension Shock Absorber Set - 59706CP

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
TOYOTA S2 SECONDARY 2.5 RR CDCV PAIR
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 59706CP
Old price: $1,716.69
$1,634.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.

Note: TECH NOTE: Fits ICON S2 Secondary Shock System only. May not fit other aftermarket stock width front lower control arm kits with secondary shock compatibility and matching secondary shock hoop. See ICON part number 59702CP-CB for other brand secondary shock kit compatibility.

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Adjustable Yes
Adjustable Damping Yes
Boot Included No
Bore Diameter 2.25
Shaft Diameter 0.875
Tube Outside Diameter 2.5
Cylinder Diameter 2.5
Cylinder Material Aluminum
Shock Absorber Rod End Measuring Point Center of Eylet
Shock Absorber Body End Measuring Point Center of Eylet
Shaft Material Chrome
Lower Mount Type Eyelet
Upper Mount Type Eyelet
Cylinder Color Grey
Damping Adjustment Type Manual
Damping Type Oil
Grade Type Performance
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Mounting Hardware Included Yes
Gas Charged Yes
California Prop 65 Warning Yes
External Reservoir Yes
Service Parts 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL, 252003 - SEAL INSTALL TOOL 2.5/3.0, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252001 - 2.5 FIXED SPANNER WRENCH, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 191016 - 7.5" FINNED RESI UPGRADE KIT, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Add-On Part 252012 - -4 TO -10 HOSE SHIELD KIT, 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
Country of Origin US
Condition New
🚗 Compatible with
56 vehicles are compatible with this product · 2003–2024
