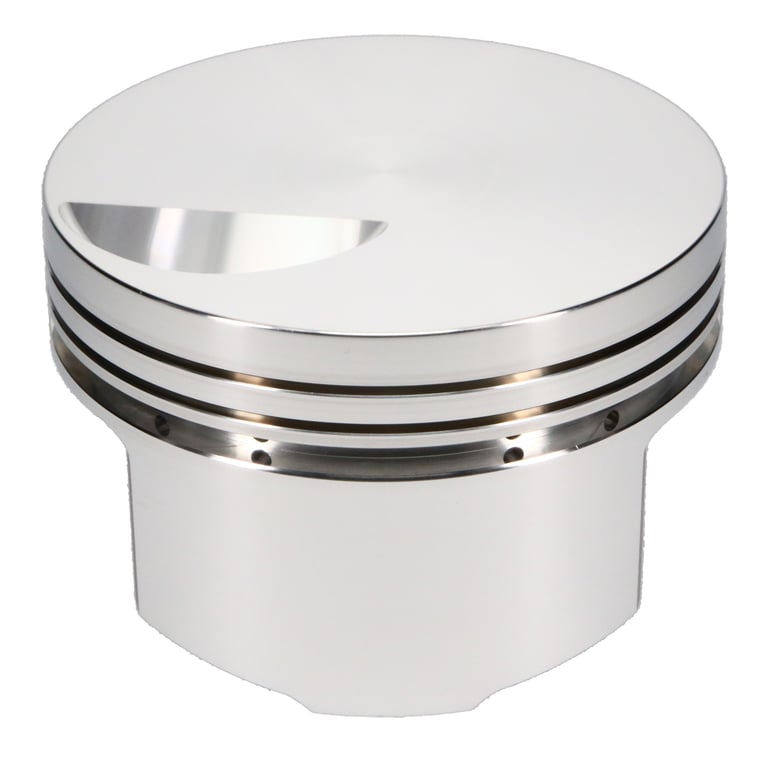

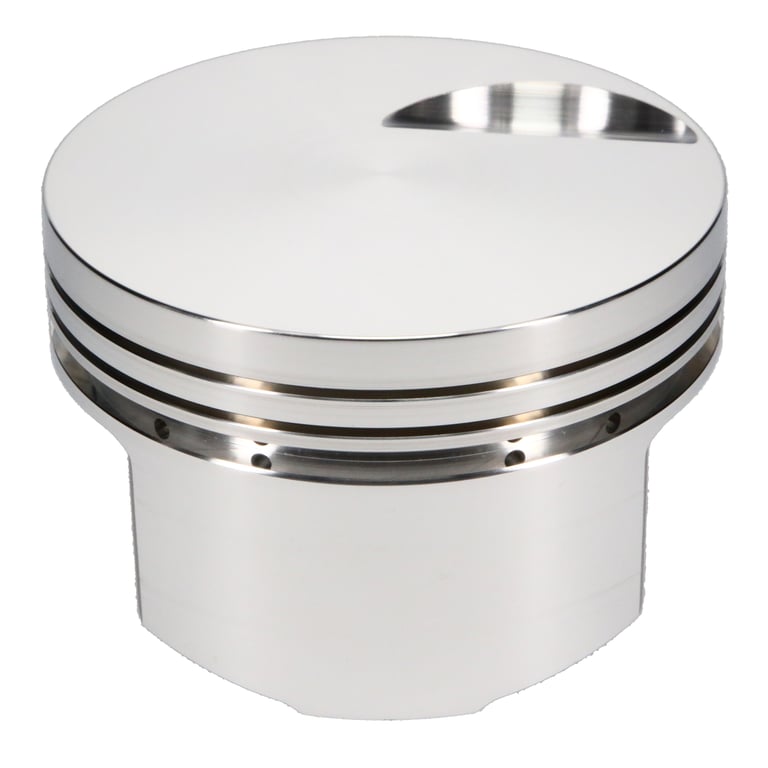

JE Pistons Engine Piston Kit - 142983

Piston Set, 4032, Flat Top, 4.470 Bore, 1.270 CD, 0.990 Pin, Set of 8.
Manufacturer: JE Pistons
Manufacturer part number: 142983
$724.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.

Application: Chevrolet Big Block 454

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name Attribute value
Piston Average Weight 578
Wrist Pin Wall Thickness 0.150
Product Type Engine Piston Kit
Category Hierarchy Auto>All Piston Kits
Piston Series SRP
Cylinder Head OPEN CHAMBER
Bore Diameter 4.470
Piston Head Type Flat
Compression Height 1.270
Piston Volume 3.00
Material 4032
Forging Type FSR
Ring Set Included No
Top Compression Ring Thickness 0.0640
Second Compression Ring Thickness 0.0640
Oil Ring Thickness 0.218
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter 0.990
Wrist Pin Length 2.930
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Prop 65 - Short Label prop65warninglabel.jpg
Bore Diameter - Web 4.470 IN
EBAY Category ID 33623
Country of Origin US
Condition New
