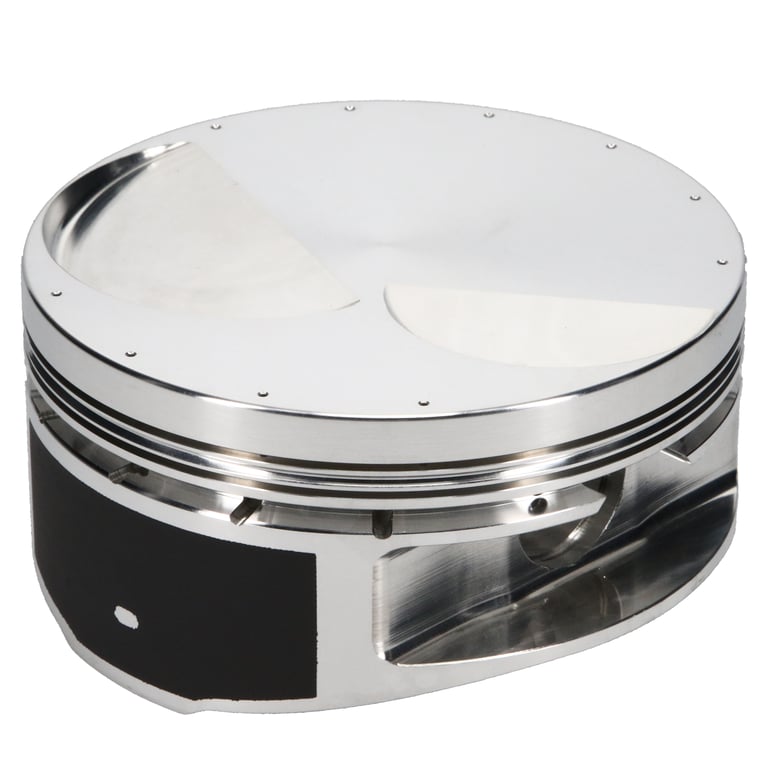

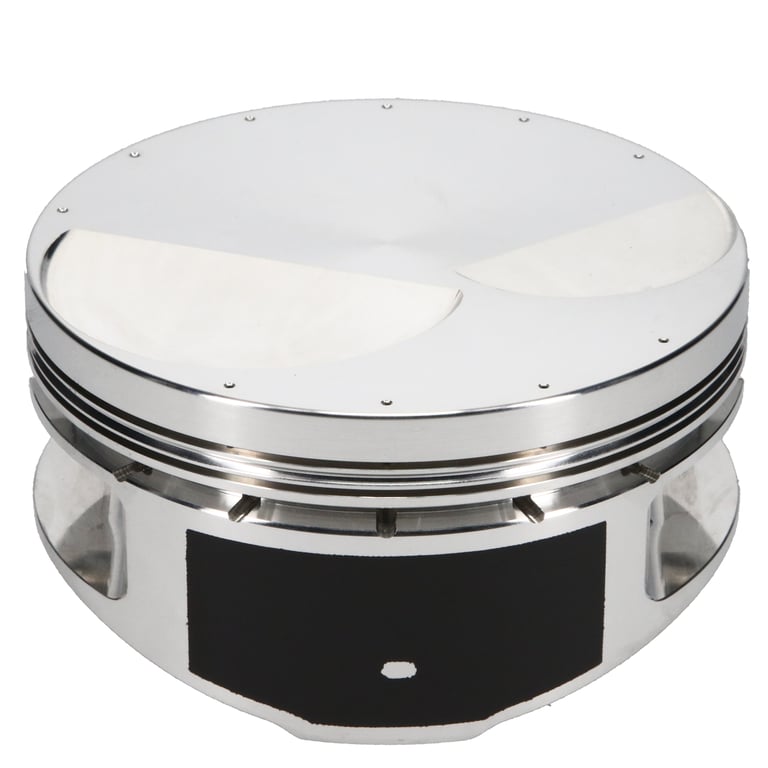

JE Pistons Engine Piston Kit - 280263

Piston Set, 2618, Flat Top, 4.600 Bore, 1.120 CD, 0.990 Pin, Set of 8.
Manufacturer: JE Pistons
Manufacturer part number: 280263
$1,199.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Chevrolet Big Block 632

Note: JE designs are specifically engineered for extreme upplications up to, and including, professional competition

Products specifications

Attribute name Attribute value
Category Hierarchy Auto>All Piston Kits
Product Type Engine Piston Kit
Wrist Pin Wall Thickness 0.180
Wrist Pin Length 2.930
Wrist Pin Outer Diameter 0.990
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Oil Ring Thickness 0.149
Second Compression Ring Thickness 0.0440
Top Compression Ring Thickness 0.0435
Ring Set Included No
Piston Average Weight 570
Forging Type Round
Piston Quantity 8
Material 2618
Piston Volume 7.00
Compression Height 1.120
Piston Head Type Flat
Bore Diameter 4.600
Cylinder Head BIG CHIEF 12 DEG/14 DEG
Piston Series JE Pistons
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Prop 65 - Short Label prop65warninglabel.jpg
Bore Diameter - Web 4.600 IN
EBAY Category ID 33623
Country of Origin US
Condition New
