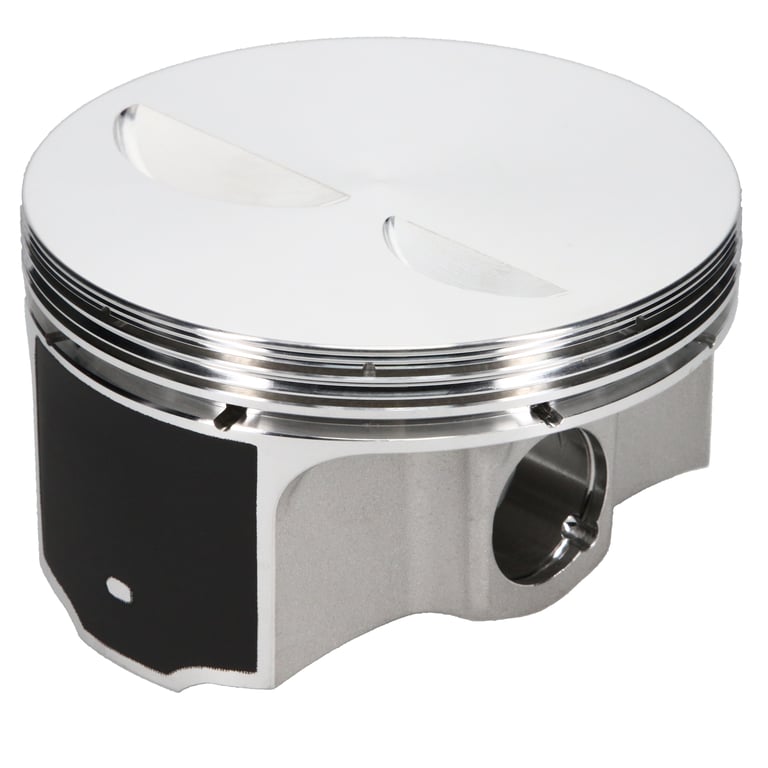

JE Pistons Engine Piston Kit - 300253

Name: JE Pistons Engine Piston Kit - 300253
SKU: 300253
Price: 1099.99 USD
Availability: OutOfStock

Piston Set, 2618, Flat Top, 4.035 Bore, 1.550 CD, 0.927 Pin, Set of 8.

Manufacturer: JE Pistons

Manufacturer part number: 300253

$1,099.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Chevrolet Small Block 350

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name	Attribute value
Second Compression Ring Thickness	0.0440
Oil Ring Thickness	0.119
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Top Compression Ring Thickness	0.0435
Ring Set Included	No
Piston Average Weight	369
Forging Type	FSR
Piston Quantity	8
Material	2618
Piston Volume	-1.80
Compression Height	1.550
Piston Head Type	Flat
Bore Diameter	4.035
Cylinder Head	STD CHEVROLET 23 DEG
Piston Series	JE Pistons
Category Hierarchy	Auto>All Piston Kits
Product Type	Engine Piston Kit
Wrist Pin Wall Thickness	0.150
Wrist Pin Length	2.350
Wrist Pin Outer Diameter	0.927
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.035 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
