JE Pistons Engine Piston Kit - 312088

Name: JE Pistons Engine Piston Kit - 312088
SKU: 312088
Price: 949.99 USD
Availability: OutOfStock

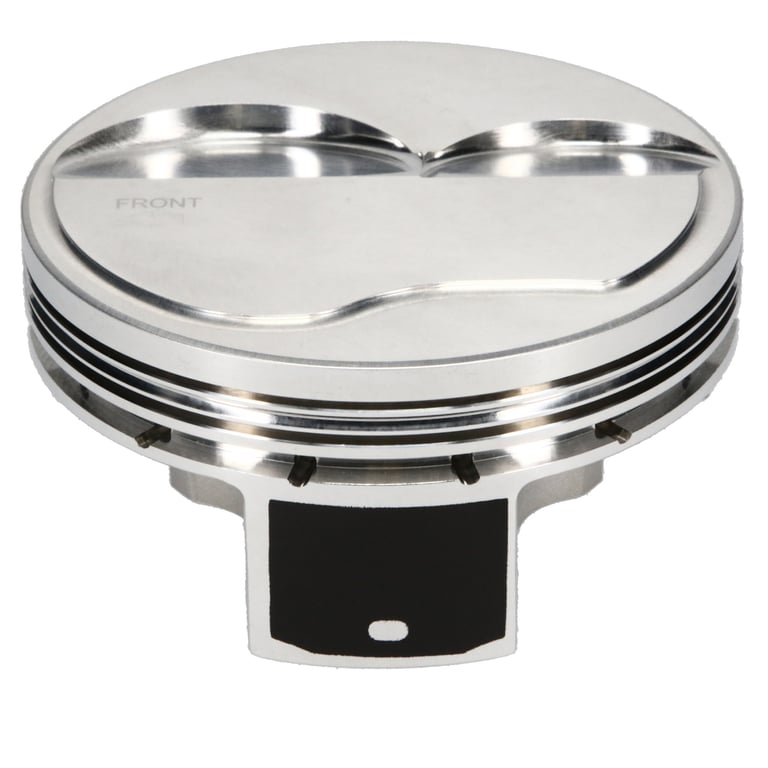

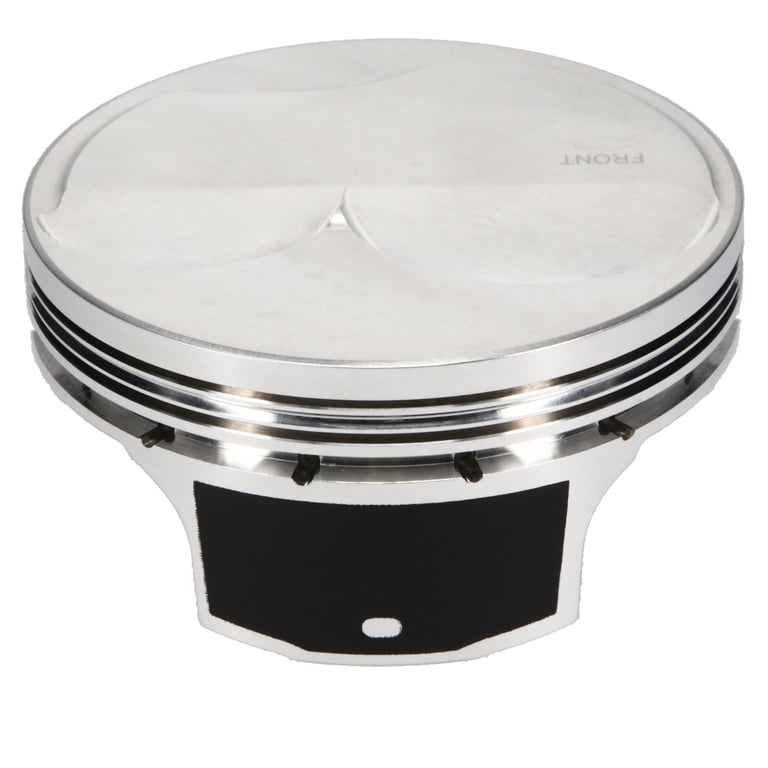

Piston Set, 2618, Dome, 4.010 Bore, 1.340 CD, 0.945 Pin, Set of 8.

Manufacturer: JE Pistons

Manufacturer part number: 312088

$949.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Chevrolet LS

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name	Attribute value
Category Hierarchy	Auto>All Piston Kits
Piston Series	JE Pistons
Cylinder Head	GM LS1 15 DEG
Bore Diameter	4.010
Piston Head Type	Dome
Compression Height	1.340
Piston Volume	11.70
Material	2618
Piston Quantity	8
Forging Type	FSR
Piston Average Weight	457
Ring Set Included	No
Top Compression Ring Thickness	0.0480
Product Type	Engine Piston Kit
Oversized Amount	0.010
Compression Ratio	13.20:1 / 64.00 CC Head
Engine Family	LS
Pro Seal Head Gasket	GM1016-051
Piston Sub-Series	LS Dome - 15? Head
OEM Bore Diameter	4.000
Ring Set - Recommended	JG3108-4010-4
Oversized	Yes
Ring Set Thickness	1.20 MM x 1.50 MM x 3.00 MM
Deck Height	9.240
Connecting Rod Length	6.098
Engine Stroke	3.622
Engine Displacement	366
Wrist Pin Retainer Part Number	927-073-MW
Wrist Pin Retainer Included	Yes
Wrist Pin Wall Thickness	0.150
Wrist Pin Length	2.250
Wrist Pin Outer Diameter	0.945
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Part Number	945-2250-15-51C
Wrist Pin Included	Yes
Oil Ring Thickness	0.1175
Second Compression Ring Thickness	0.0600
EBAY Category ID	33623
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.010 IN
Country of Origin	US
Condition	New
