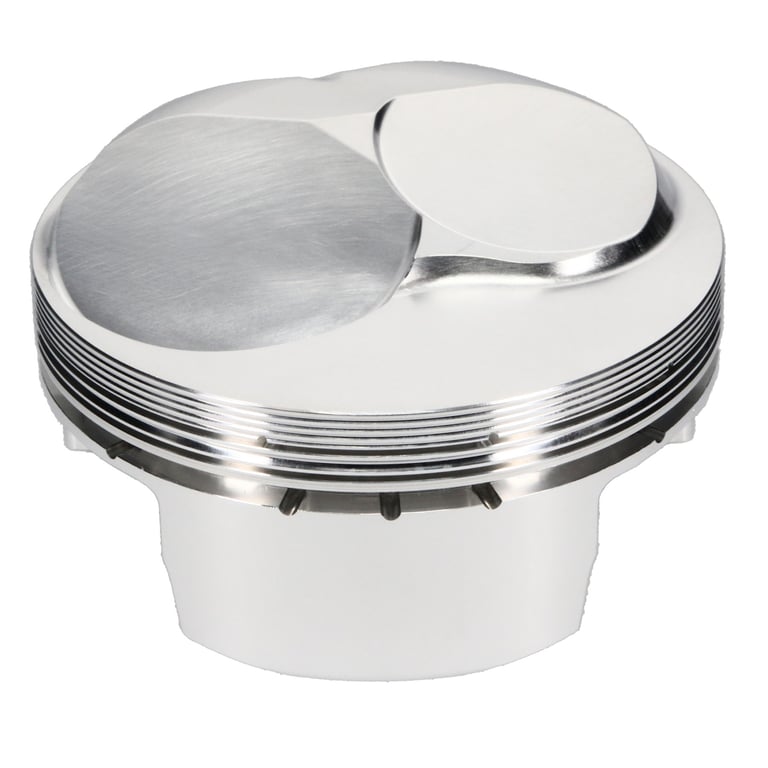

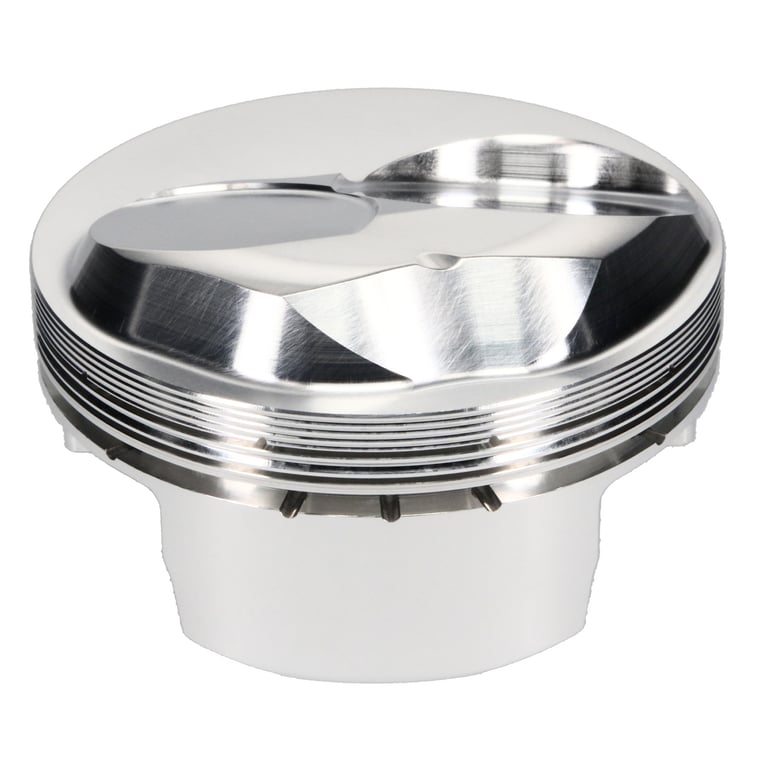

JE Pistons Engine Piston Kit - 330127

Piston Set, 2618, Dome, 4.530 Bore, 1.120 CD, 0.990 Pin, Set of 8.
Manufacturer: JE Pistons
Manufacturer part number: 330127
$1,199.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Chevrolet Big Block 502

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name Attribute value
Wrist Pin Length 2.500
Wrist Pin Wall Thickness 0.180
Product Type Engine Piston Kit
Category Hierarchy Auto>All Piston Kits
Piston Series JE Pistons
Cylinder Head OPEN CHAMBER
Bore Diameter 4.530
Piston Head Type Dome
Compression Height 1.120
Piston Volume 42.00
Material 2618
Piston Quantity 8
Forging Type FSR
Piston Average Weight 619
Ring Set Included No
Top Compression Ring Thickness 0.0440
Second Compression Ring Thickness 0.0440
Oil Ring Thickness 0.149
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter 0.990
Bore Diameter - Web 4.530 IN
EBAY Category ID 33623
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Prop 65 - Short Label prop65warninglabel.jpg
Country of Origin US
Condition New
