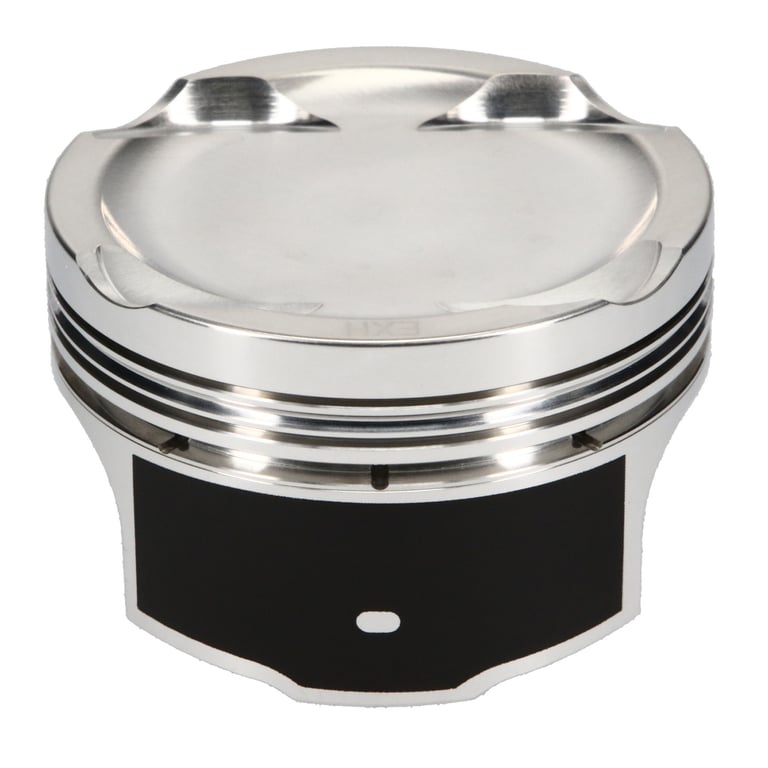

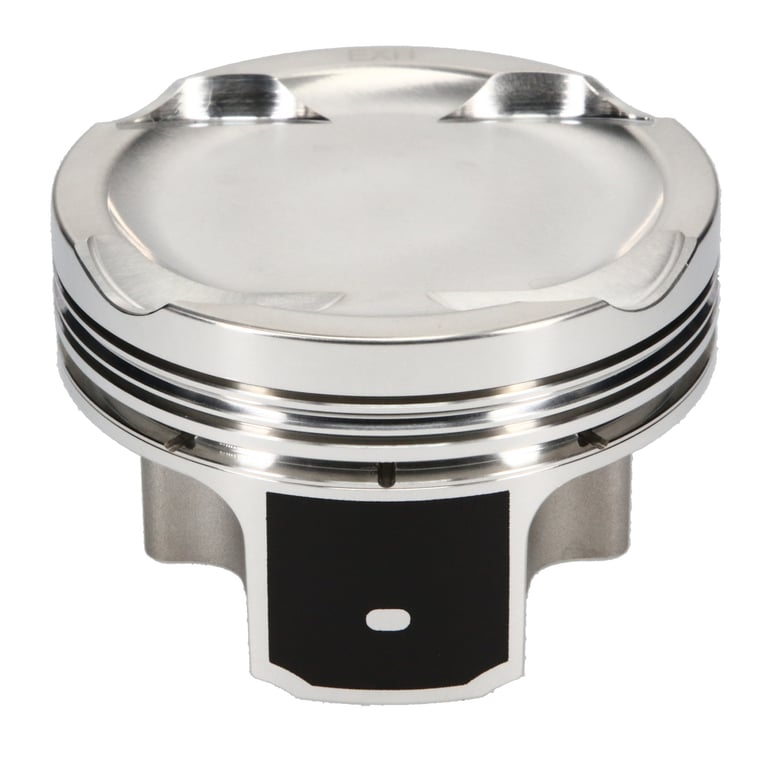

JE Pistons Engine Piston Kit - 352360

Piston Set, 2618, Inv Dome/Dish, 3.425 Bore, 1.367 CD, 0.866 Pin, Set of 4.
Manufacturer: JE Pistons
Manufacturer part number: 352360
$899.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Mitsubishi 4G64 with 4G63 Head

Note: JE designs are specifically engineered for extreme upplications up to, and including, professional competition

Products specifications

Attribute name Attribute value
Wrist Pin Length 2.250
Wrist Pin Wall Thickness 0.150
Engine Detail 4G64 with 4G63 Head 22 mm Pin
Product Type Engine Piston Kit
Category Hierarchy Auto>All Piston Kits
Piston Series JE Pistons
Cylinder Head 4G63
Bore Diameter 87.00
Piston Head Type Dish
Compression Height 1.367
Piston Volume 22.30
Material 2618
Piston Quantity 4
Forging Type Round
Ring Set Included Yes
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter 0.866
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Prop 65 - Short Label prop65warninglabel.jpg
Bore Diameter - Web 87.00 MM
EBAY Category ID 33623
Country of Origin US
Condition New
