JE Pistons Engine Piston Kit - 367167

Name: JE Pistons Engine Piston Kit - 367167
SKU: 367167
Price: 799.99 USD
Availability: OutOfStock

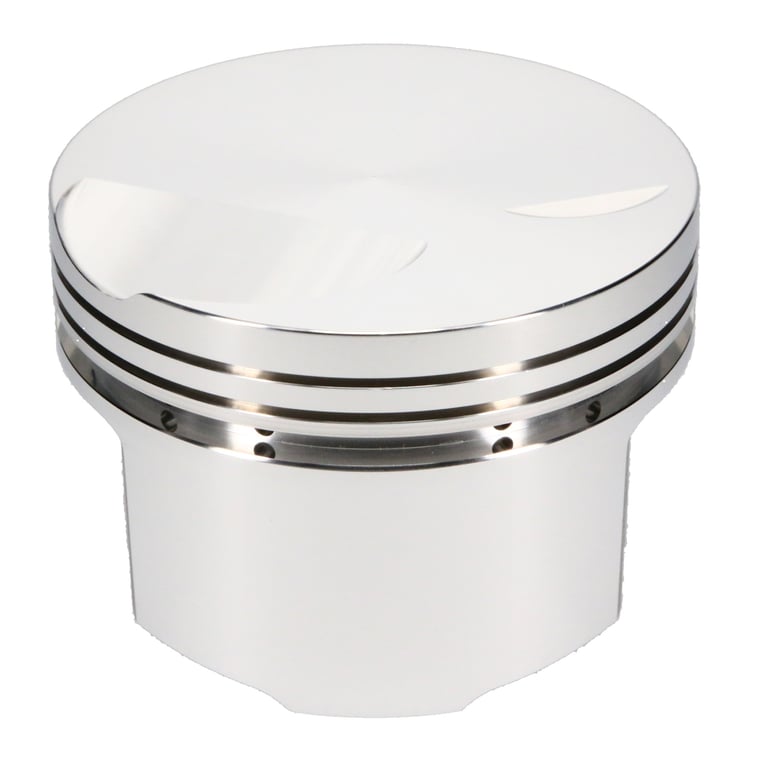

Piston Set, 2618, Flat Top, 4.060 Bore, 1.230 CD, 0.927 Pin, Set of 8.

Manufacturer: JE Pistons

Manufacturer part number: 367167

$799.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

JE Pistons SRP Pro 2618 line expands on the premium features of the SRP Pro series with the addition of extremely strong, 2618 forged aluminum material. All piston kits include gas-nitrided, carbon-steel pistons rings, pins, and locks. SRP Pro 2618 pistons maximize piston strength and maximize value, whether you?re building rowdy small block or a flame-spitting big block. As with all JE Pistons products, SRP pistons are made 100% in the USA.

Application: Ford Small Block 351W Windsor

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name	Attribute value
Piston Series	SRP Pro 2618
Cylinder Head	SMALL BLOCK FORD 20 DEG
Bore Diameter	4.060
Piston Head Type	Flat
Compression Height	1.230
Piston Volume	-5.00
Material	2618
Forging Type	FSR
Piston Average Weight	427
Ring Set Included	Yes
Top Compression Ring Thickness	0.0480
Second Compression Ring Thickness	0.0600
Oil Ring Thickness	0.119
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.250
Wrist Pin Wall Thickness	0.170
Product Type	Engine Piston Kit
Category Hierarchy	Auto>SRP Pistons>SRP Pro 2618
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.060 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
