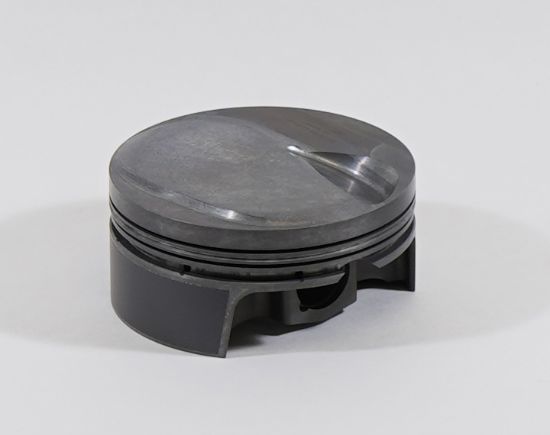

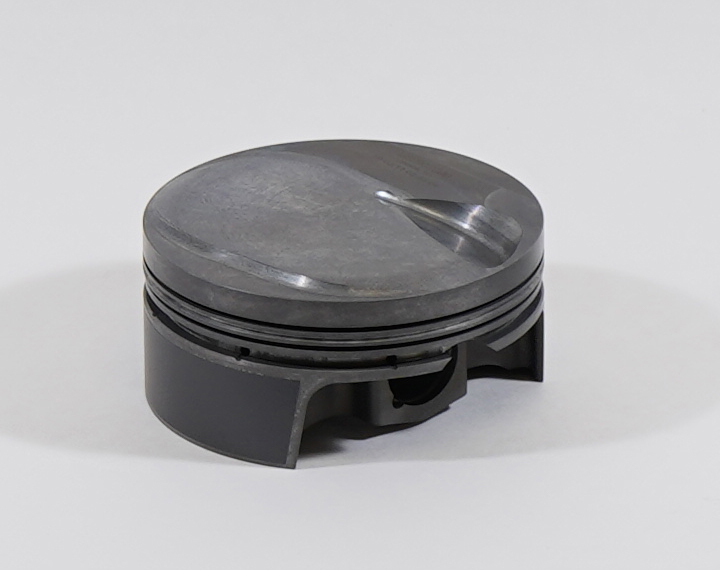

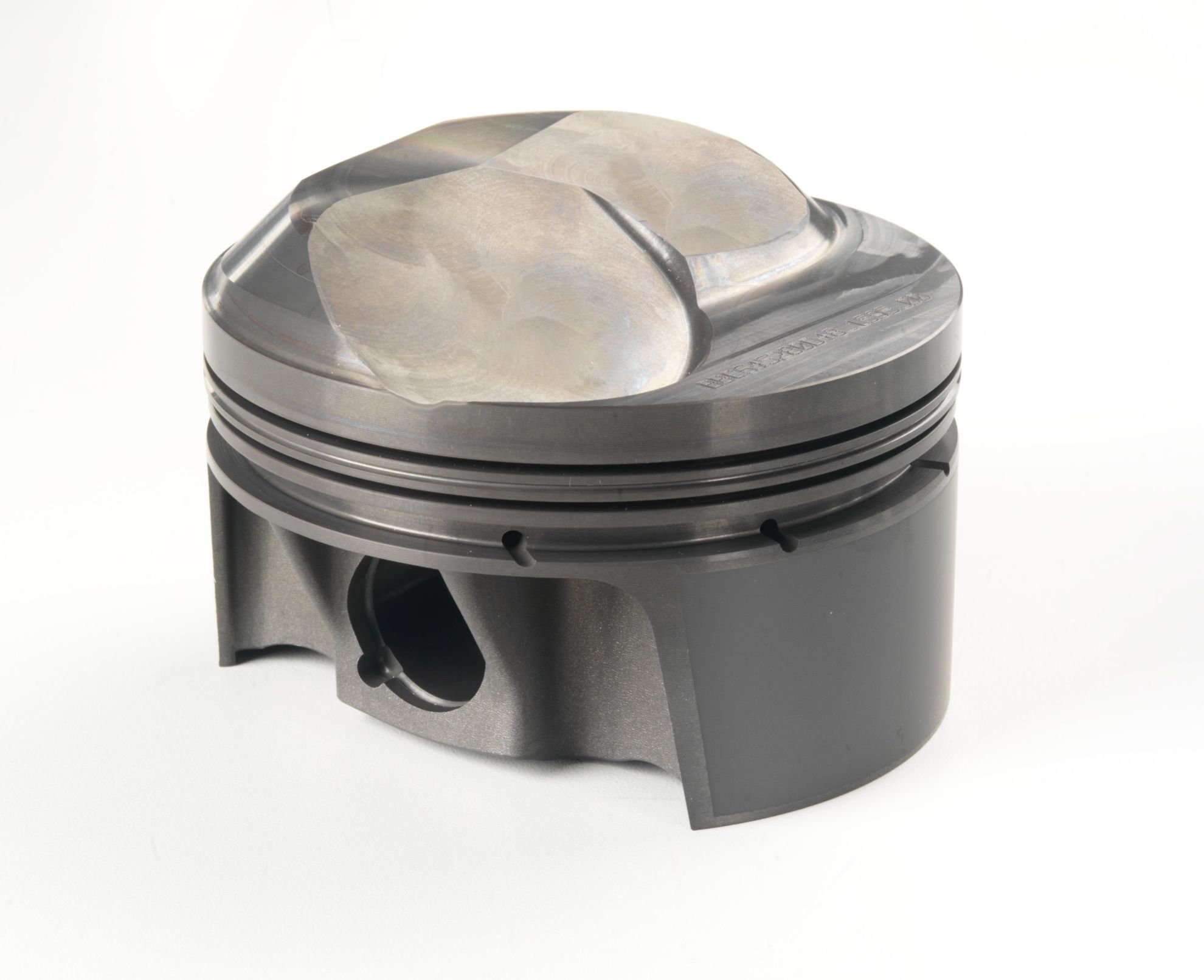

Mahle Motorsport Engine Piston - 929906910-1

Name: Mahle Motorsport Engine Piston - 929906910-1
SKU: 929906910-1
Price: 92.69 USD
Availability: InStock

Piston (ea) - BIG BLOCK CHEVY DOME (STD DECK 9.800)

Manufacturer: Mahle Motorsport

Manufacturer part number: 929906910-1

Old price: $100.75

Price: $92.69

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

511cid 4.310 x 1.215RCH, 4.375stroke,6.385rod,0.990pin,41.0cc,580g,13.1CR, 2618, SINGLE PISTON

Note: Replacement piston for kit 929906910, bare piston only, components must be ordered separately

Products specifications

Attribute name	Attribute value
Pin Wall Thickness	0.18
LCR Thickness	1.5mm
UCR Thickness	1.5mm
Piston Ring Thickness	1.5mm, 1.5mm, 3.0mm
Pin Mass	148g
Pin Diameter	25.146mm
OCR Thickness	3.0mm
Crown Volume	41.0cc
Piston Mass	580g
Pin Length	64.0mm
LCR Material	Cast Iron
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
Piston Style	Dome, w/ INT valve relief
UCR Material	Ductile Iron
Pin Style	Floating
Material	Forged, 2618
Clips Included	N
Pins Included	N
Rings Included	N
LCR Coating	Phosphate
UCR Coating	Plasma Moly
Clip Style	Round Wire
Package Quantity	Sold as a set of 1
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
File Fit	Y
Prop 65 Yes/No	Yes
Country of Origin	US
Quantity per Application	8
