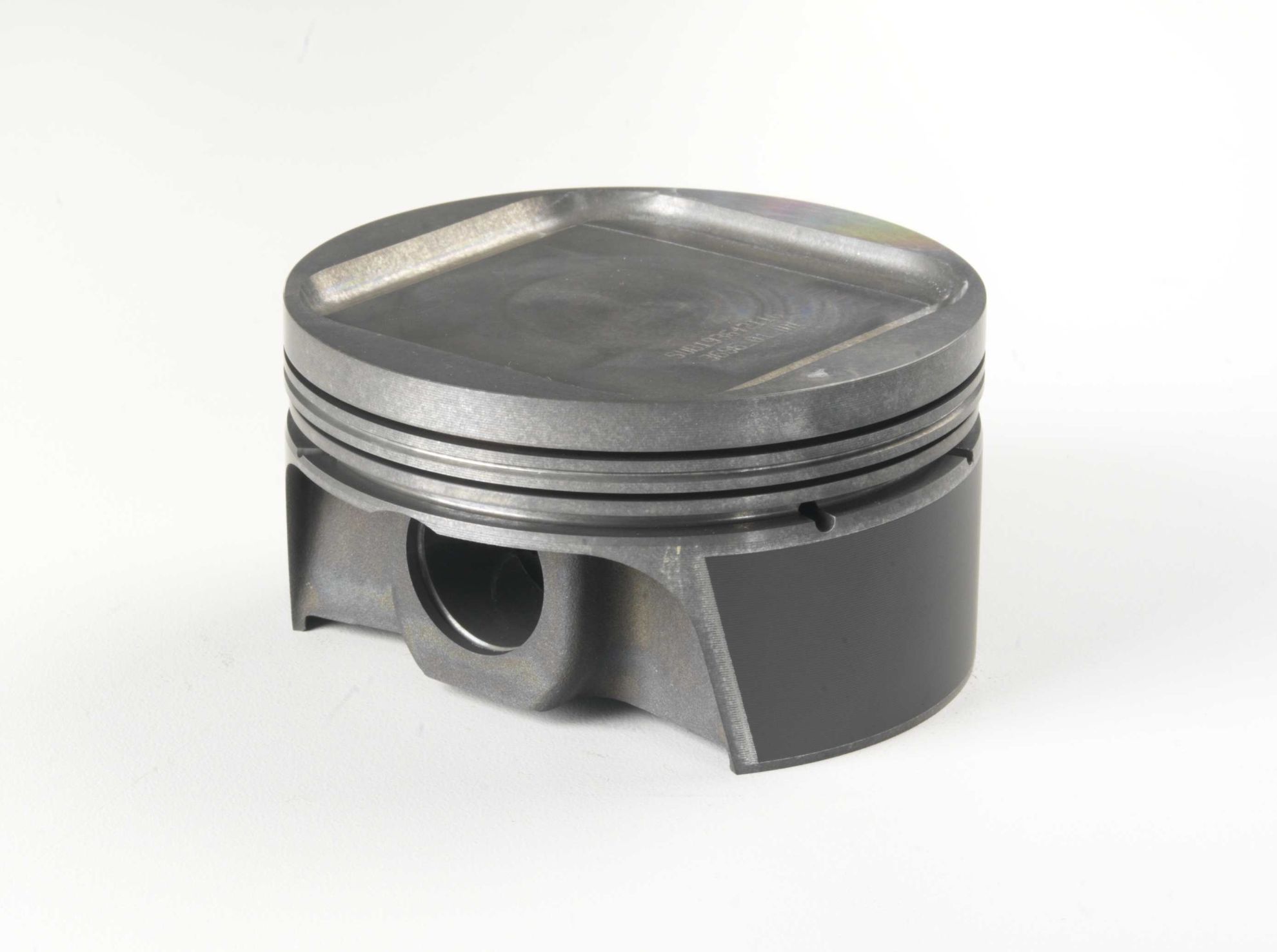

Mahle Motorsport Engine Piston - 930020322-1

Name: Mahle Motorsport Engine Piston - 930020322-1
SKU: 930020322-1
Price: 144.80 USD
Availability: InStock

Piston (ea) - SUBARU 2.0L EJ20

Manufacturer: Mahle Motorsport

Manufacturer part number: 930020322-1

Old price: $157.39

Price: $144.80

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

92.00mm x 32.7mm CH, 75.0mm stroke,130.5mm rod,23mm pin,-12.0cc,346g,8.4CR, 4032, SINGLE PISTON

Note: Replacement piston for kit 930020322, bare piston only, components must be ordered separately

Products specifications

Attribute name	Attribute value
Crown Volume	12.0cc
Pin Wall Thickness	0.187
LCR Thickness	1.2mm
UCR Thickness	1.2mm
Piston Ring Thickness	1.2mm, 1.2mm, 2.5mm
Pin Mass	124g
OCR Thickness	2.5mm
Pin Diameter	23.0mm
Piston Mass	346g
Pin Length	57.404mm
LCR Material	Cast Iron
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
Piston Style	Dish, w/ 4 valve reliefs
Pin Style	Floating
Material	Forged, 4032
UCR Coating	Gas Nitrided
Clips Included	N
File Fit	N
Pins Included	N
Rings Included	N
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 1
UCR Material	Stainless Steel
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Yes/No	Yes
Country of Origin	US
Quantity per Application	4
