Mahle Motorsport Engine Piston - 930261990-1

Name: Mahle Motorsport Engine Piston - 930261990-1
SKU: 930261990-1
Price: 92.69 USD
Availability: InStock

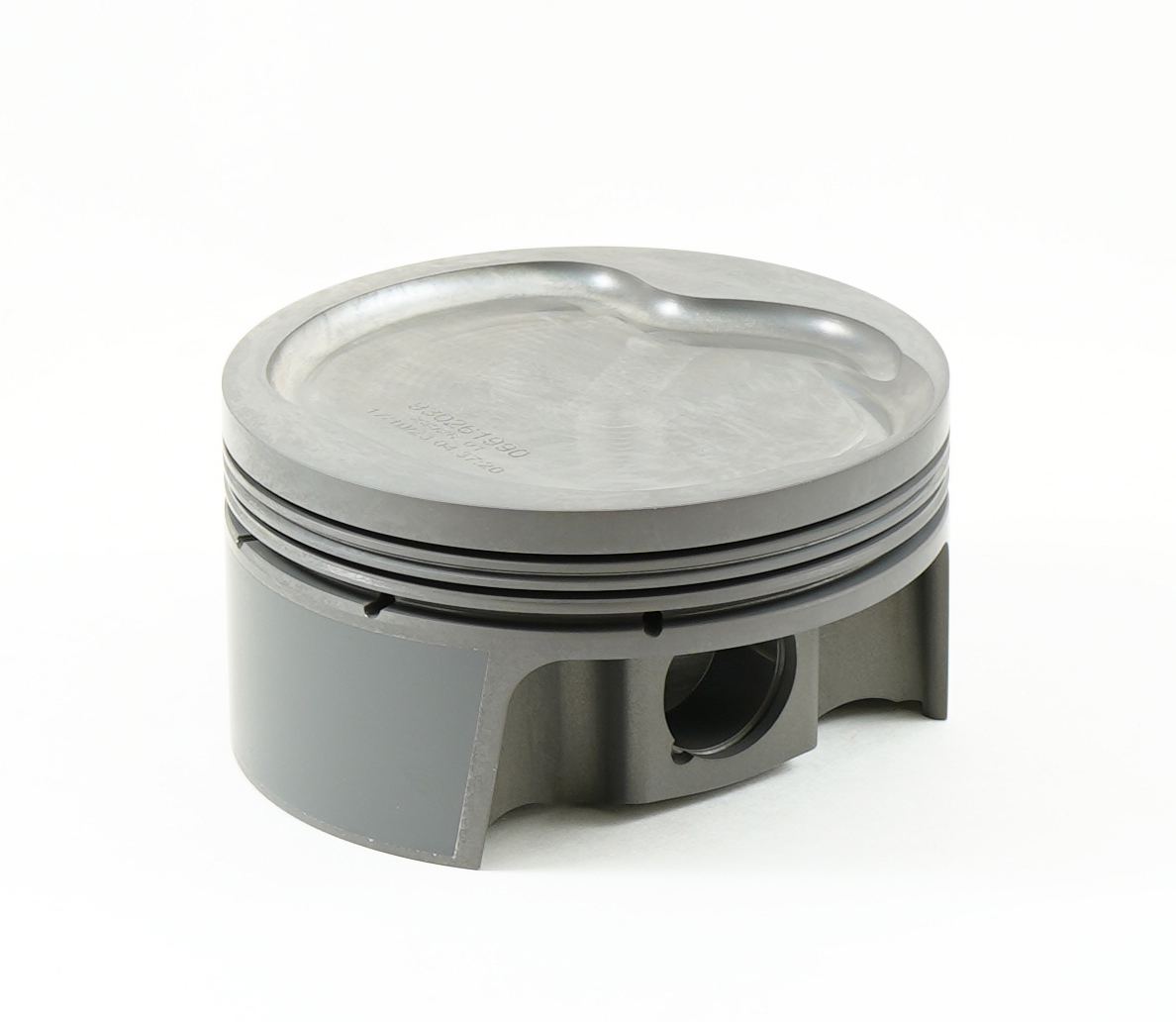

Piston (ea) - BIG BLOCK FORD

Manufacturer: Mahle Motorsport

Manufacturer part number: 930261990-1

Old price: $100.75

Price: $92.69

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

503cid 4.390 x 1.525CH, 4.150stroke,6.700rod,0.990pin,-28cc,537g,9.7CR, 4032, SINGLE PISTON

Note: Replacement piston for kit 930261990, bare piston only, components must be ordered separately

Products specifications

Attribute name	Attribute value
Crown Volume	-28cc
Pin Wall Thickness	0.18
LCR Thickness	1.5mm
UCR Thickness	1.5mm
Piston Ring Thickness	1.5mm, 1.5mm, 3.0mm
Pin Mass	148g
Pin Diameter	25.146mm
OCR Thickness	3.0mm
Piston Mass	537g
Pin Length	64.0mm
LCR Material	Cast Iron
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
UCR Material	Ductile Iron
Pin Style	Floating
Material	Forged, 4032
Piston Style	Inverted Dome, w/ INT valve relief
Clips Included	N
Pins Included	N
Rings Included	N
LCR Coating	Phosphate
UCR Coating	Plasma Moly
Clip Style	Round Wire
Package Quantity	Sold as a set of 1
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
File Fit	Y
Prop 65 Yes/No	Yes
Country of Origin	US
Quantity per Application	8
