Mahle Motorsport Engine Piston Set - 929986135

Name: Mahle Motorsport Engine Piston Set - 929986135
SKU: 929986135
Price: 805.41 USD
Availability: InStock

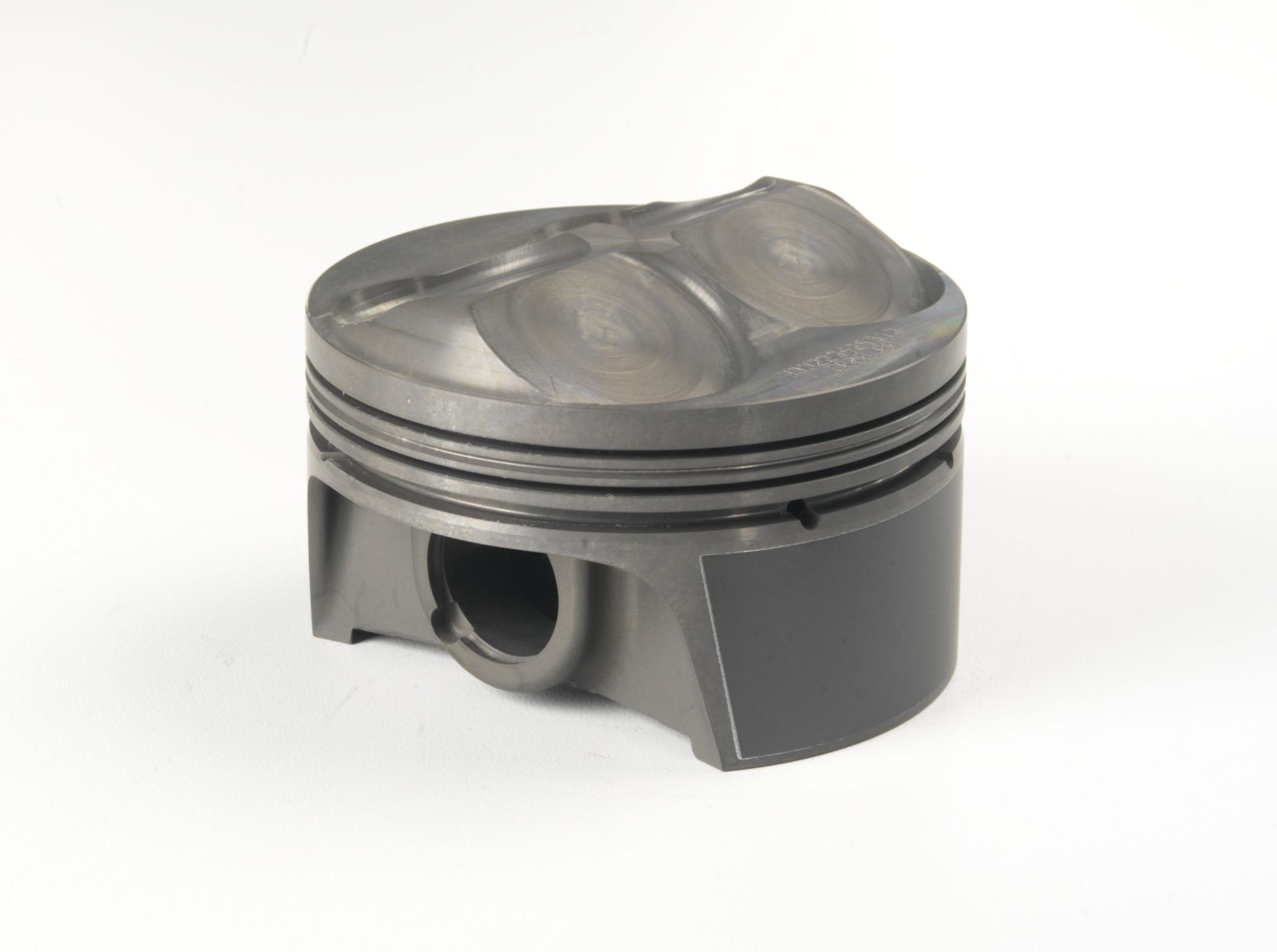

Piston (set) - HONDA S2000 F20C 2.0L GOLD SERIES

Manufacturer: Mahle Motorsport

Manufacturer part number: 929986135

Old price: $875.45

Price: $805.41

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

87.25mm x 30mm CH, 84.0mm stroke,153mm rod,23mm pin,9.0cc,334g,12.5CR, 4032

Note: FOR USE IN FACTORY FRM (FIBER REINFORCED MATRIX) CYLINDERS ONLY

Products specifications

Attribute name	Attribute value
Pin Wall Thickness	0.197
LCR Thickness	1.2mm
UCR Thickness	1.2mm
Piston Ring Thickness	1.2mm, 1.2mm, 2.8mm
Pin Mass	109g
OCR Thickness	2.8mm
Pin Diameter	23.0mm
Piston Mass	334g
Pin Length	50.0mm
Crown Volume	9.0cc
LCR Material	Cast Iron
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
Piston Style	Dome, w/ 4 valve reliefs
Pin Style	Floating
Material	Forged, 4032
UCR Coating	Gas Nitrided
File Fit	N
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 4
UCR Material	Stainless Steel
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Clips Included	Y
Pins Included	Y
Rings Included	Y
Prop 65 Yes/No	Yes
Country of Origin	US
