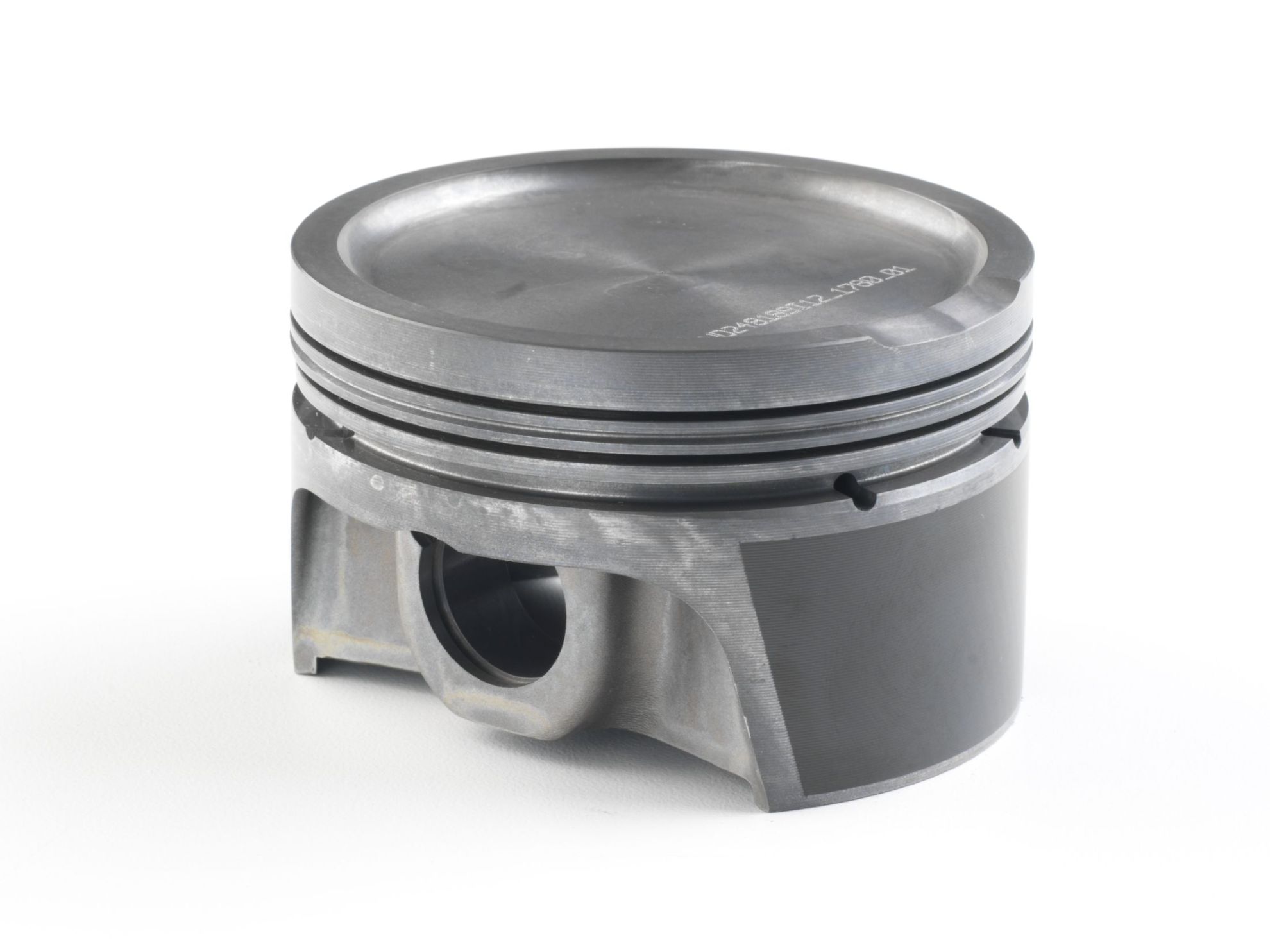

Mahle Motorsport Engine Piston Set - 930070509T

Name: Mahle Motorsport Engine Piston Set - 930070509T
SKU: 930070509T
Price: 1024.29 USD
Availability: InStock

Piston (set) - VOLKSWAGEN/AUDI B5 S4 2.7L 6-cyl. 5V Turbo

Manufacturer: Mahle Motorsport

Manufacturer part number: 930070509T

Old price: $1,113.36

Price: $1,024.29

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

81.50mm x 30.7mm CH, 86.4mm stroke,154mm rod,21mm pin,-7.2cc,295g,9.0CR, 4032, TBC coated

Note: Coatings: Phosphate + Grafal + Hard Anodized top ring groove + TBC

Products specifications

Attribute name	Attribute value
Crown Volume	-7.2cc
Pin Wall Thickness	0.197
UCR Thickness	1.0mm
Piston Ring Thickness	1.0mm, 1.2mm, 2.8mm
LCR Thickness	1.2mm
OCR Thickness	2.8mm
Pin Diameter	21.0mm
Piston Mass	295g
Pin Length	50.0mm
Pin Mass	98g
LCR Material	Cast Iron
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
Piston Style	Dish, w/ 1 valve reliefs
Pin Style	Floating
Material	Forged, 4032
UCR Coating	Gas Nitrided
File Fit	N
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 6
UCR Material	Stainless Steel
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Clips Included	Y
Pins Included	Y
Rings Included	Y
Prop 65 Yes/No	Yes
Country of Origin	US
