Mahle Motorsport Engine Piston Set - 930202640

Name: Mahle Motorsport Engine Piston Set - 930202640
SKU: 930202640
Price: 970.82 USD
Availability: InStock

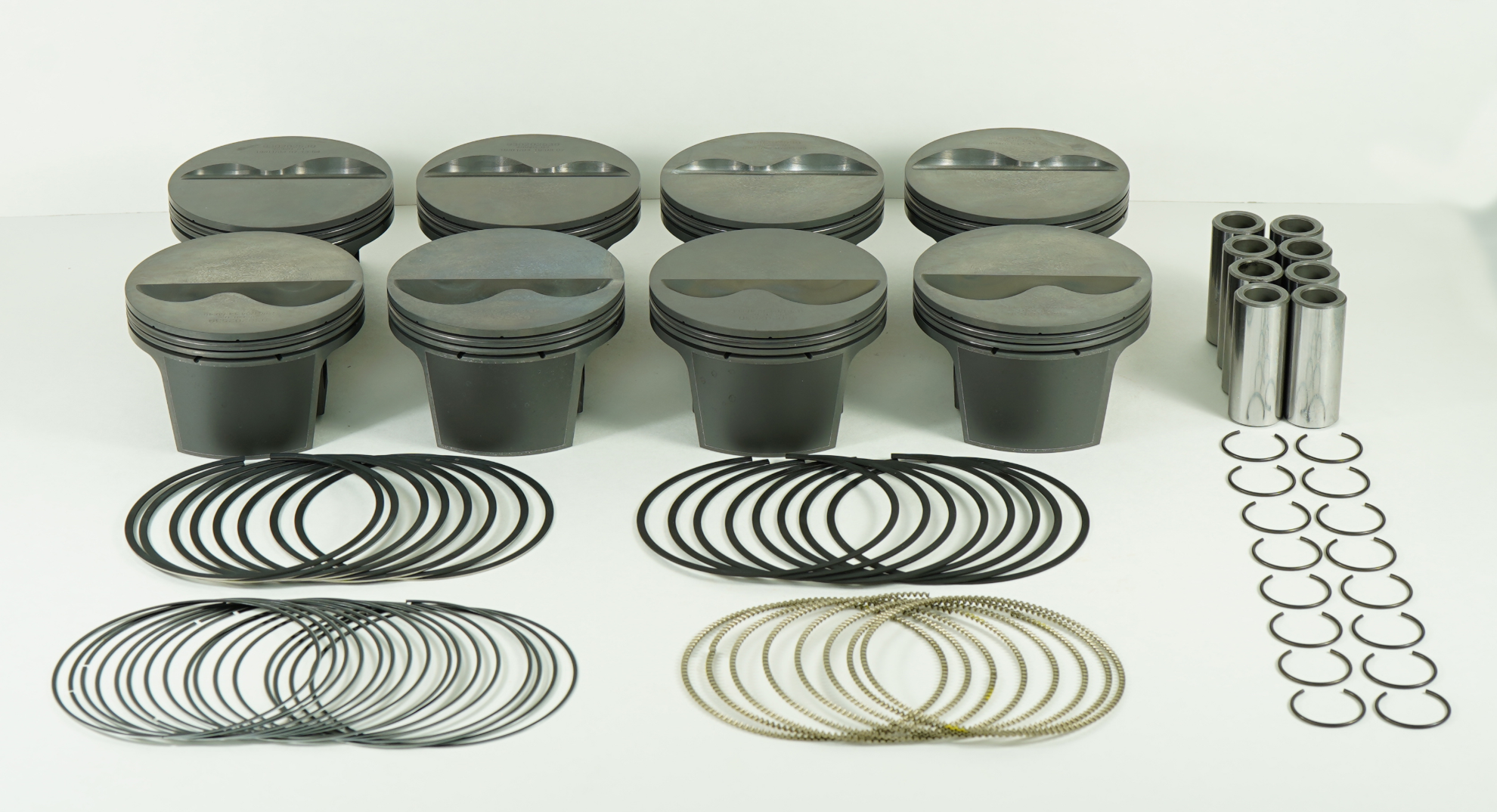

Piston (set) - SMALL BLOCK CHEVY HIGH OUTPUT

Manufacturer: Mahle Motorsport

Manufacturer part number: 930202640

Old price: $1,055.24

Price: $970.82

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

359cid 4.040 x 1.250CH, 3.500stroke,6.000rod,0.927pin,- 4.1cc,397g,10.6CR, 4032

Note: For 2bbl 22 Deg/23 Deg FLAT TOP Gasported / Asymmetrical Valve Pockets

Products specifications

Attribute name	Attribute value
Crown Volume	-4.1cc
Pin Wall Thickness	0.129
LCR Thickness	1.0mm
UCR Thickness	1.0mm
Piston Ring Thickness	1.0mm, 1.0mm, 2.0mm
OCR Thickness	2.0mm
Pin Diameter	23.55mm
Piston Mass	397g
Pin Length	58.1mm
LCR Material	9254 Steel
UCR Material	9254 Steel
Pin Mass	93g
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
Piston Style	Flattop, w/ 2 valve reliefs
Pin Style	Floating
Material	Forged, 4032
UCR Coating	HV385
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 8
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Clips Included	Y
File Fit	Y
Pins Included	Y
Rings Included	Y
Prop 65 Yes/No	Yes
Country of Origin	US
