Mahle Motorsport Engine Piston Set - 930217698

Name: Mahle Motorsport Engine Piston Set - 930217698
SKU: 930217698
Price: 829.60 USD
Availability: InStock

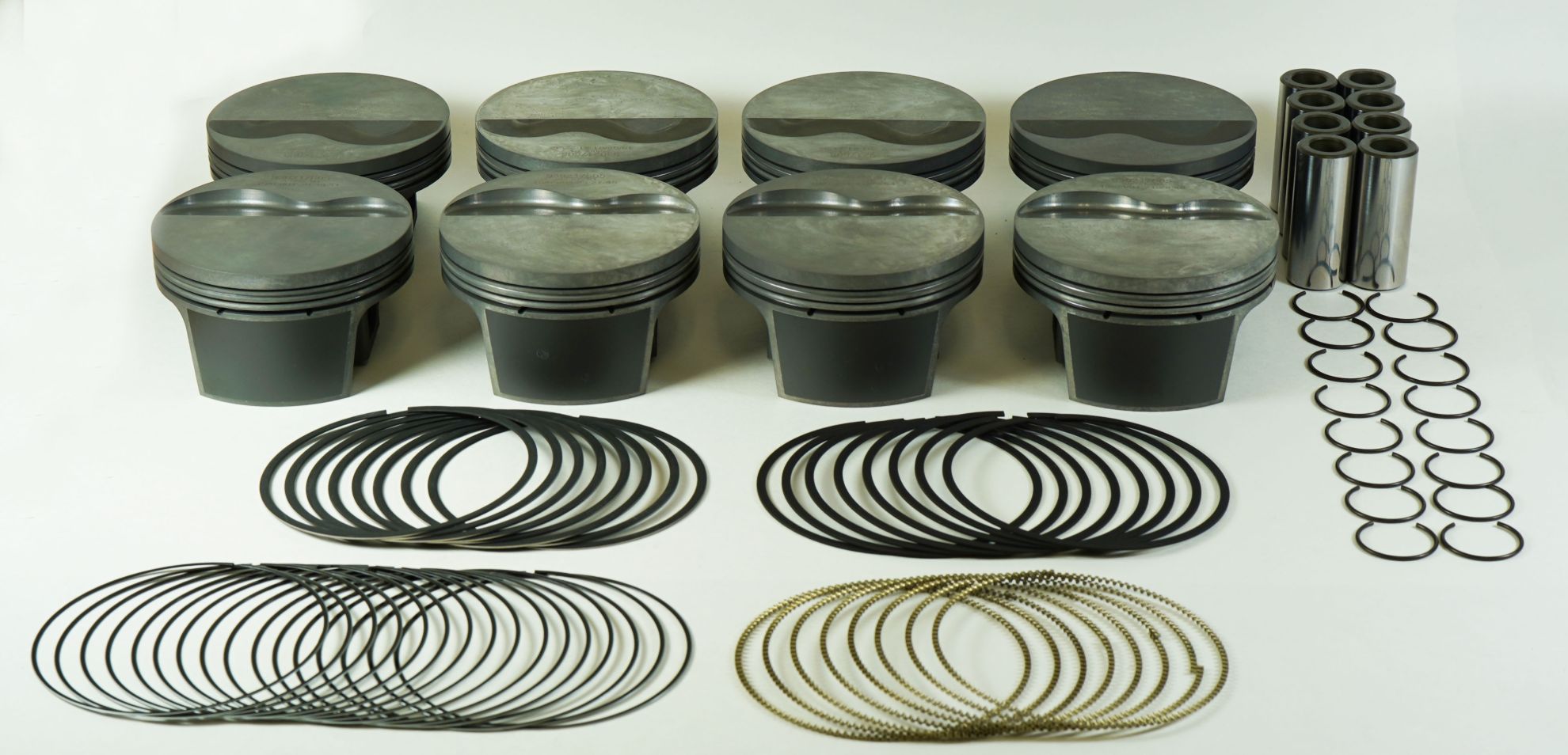

Piston (set) - LS 5.7L FLAT TOP & DISH

Manufacturer: Mahle Motorsport

Manufacturer part number: 930217698

Old price: $901.74

Price: $829.60

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

346cid 3.898 x 1.340CH, 3.622stroke,6.098rod,0.945pin,-4.1cc,407g,10.2CR, 4032

Note: Compatible with LS1/2/6 style cathedral port heads

Products specifications

Attribute name	Attribute value
Pin Diameter	24.0mm
Piston Mass	407g
Pin Length	58.1mm
LCR Material	9254 Steel
UCR Material	9254 Steel
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR

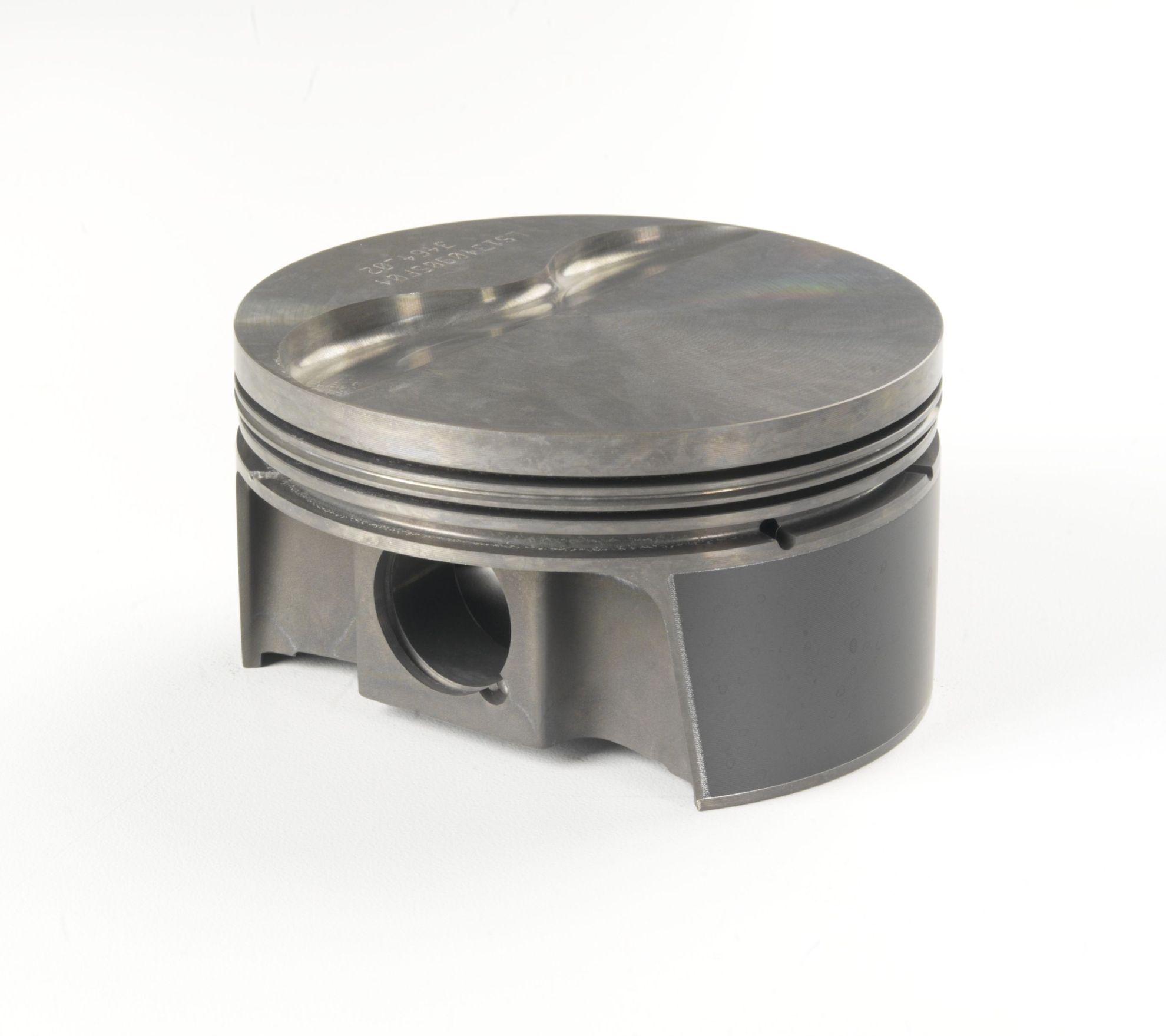

Piston Style	Flattop, w/ 2 valve reliefs
Pin Style	Floating
Material	Forged, 4032
UCR Coating	HV385
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 8
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Clips Included	Y
File Fit	Y
Pins Included	Y
Rings Included	Y
Prop 65 Yes/No	Yes
OCR Thickness	2.0mm
Pin Mass	125g
Piston Ring Thickness	1.0mm, 1.0mm, 2.0mm
UCR Thickness	1.0mm
LCR Thickness	1.0mm
Pin Wall Thickness	0.177
Crown Volume	-4.1cc
Country of Origin	US
