Mahle Motorsport Engine Piston Set - 930258401T

Name: Mahle Motorsport Engine Piston Set - 930258401T
SKU: 930258401T
Price: 1310.72 USD
Availability: InStock

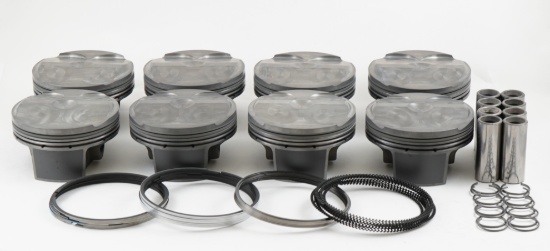

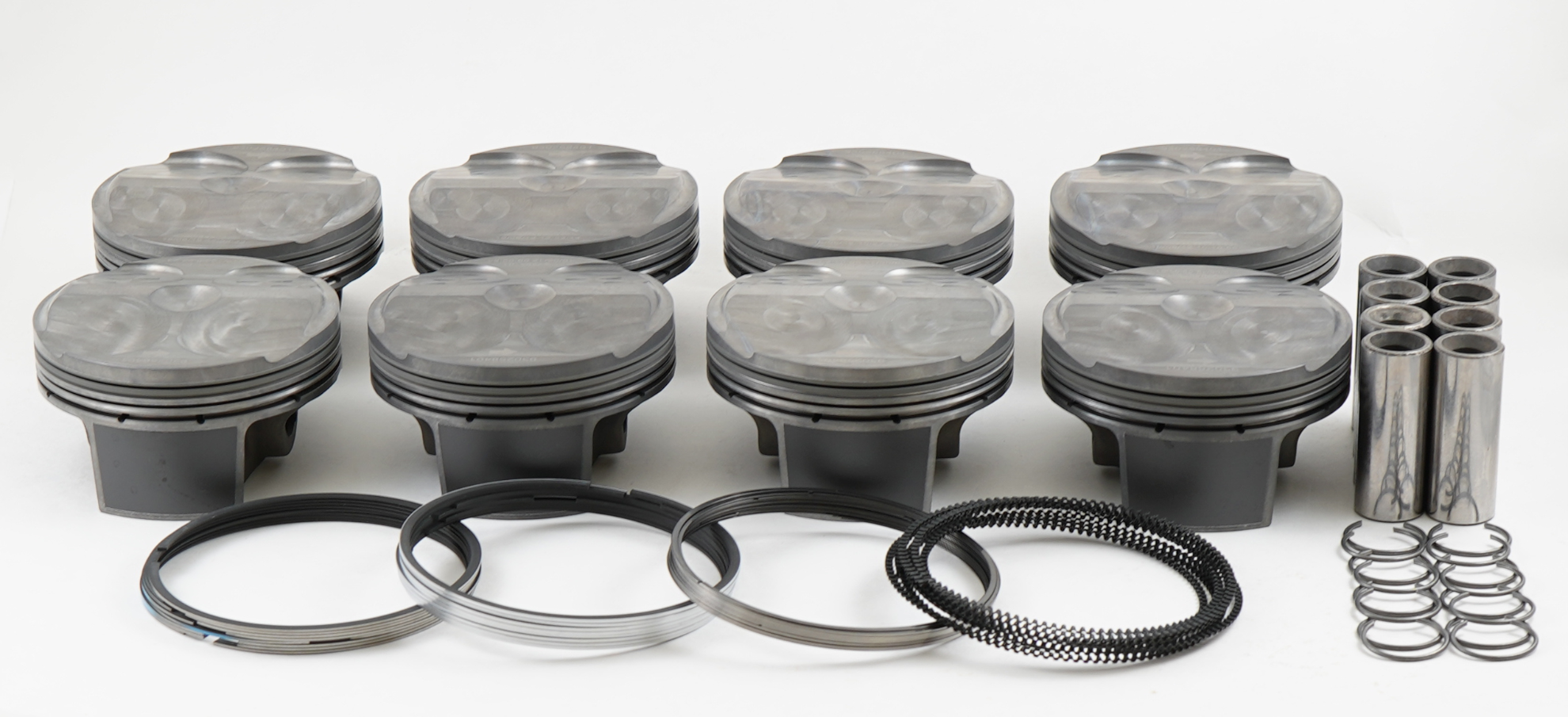

Piston (set) - FORD 5.2L VOODOO DROP-IN FORGED REPLACMENT ASSEMBLY

Manufacturer: Mahle Motorsport

Manufacturer part number: 930258401T

Old price: $1,424.70

Price: $1,310.72

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

315cid 3.701 x 1.161CH, 3.661stroke,5.933rod,0.827pin,7.8cc,380g,12.0CR, M142P, TBC coated

Note: NO BALANCING, NO COMP RATIO CHANGE

Products specifications

Attribute name	Attribute value
Pin Wall Thickness	0.187
UCR Thickness	1.0mm
Piston Ring Thickness	1.0mm, 1.2mm, 2.0mm
LCR Thickness	1.2mm
Pin Mass	100g
OCR Thickness	2.0mm
Pin Diameter	21.0mm
Piston Mass	380g
Pin Length	54.3mm
Crown Volume	-7.8cc
LCR Material	9254 Steel
UCR Material	9254 Steel
LCR Coating	Chrome
Prop 65 (C, R or CR)	CR
Piston Style	Dome, w/ 4 valve reliefs
Pin Style	Floating
Material	Forged, M142P
UCR Coating	HV385
File Fit	N
OCR Material	Nitrided stainless steel
Clip Style	Round Wire
Package Quantity	Sold as a set of 8
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Clips Included	Y
Pins Included	Y
Rings Included	Y
Prop 65 Yes/No	Yes
Country of Origin	US
