Mahle Motorsport Engine Piston Set - 930266080

Name: Mahle Motorsport Engine Piston Set - 930266080
SKU: 930266080
Price: 835.54 USD
Availability: InStock

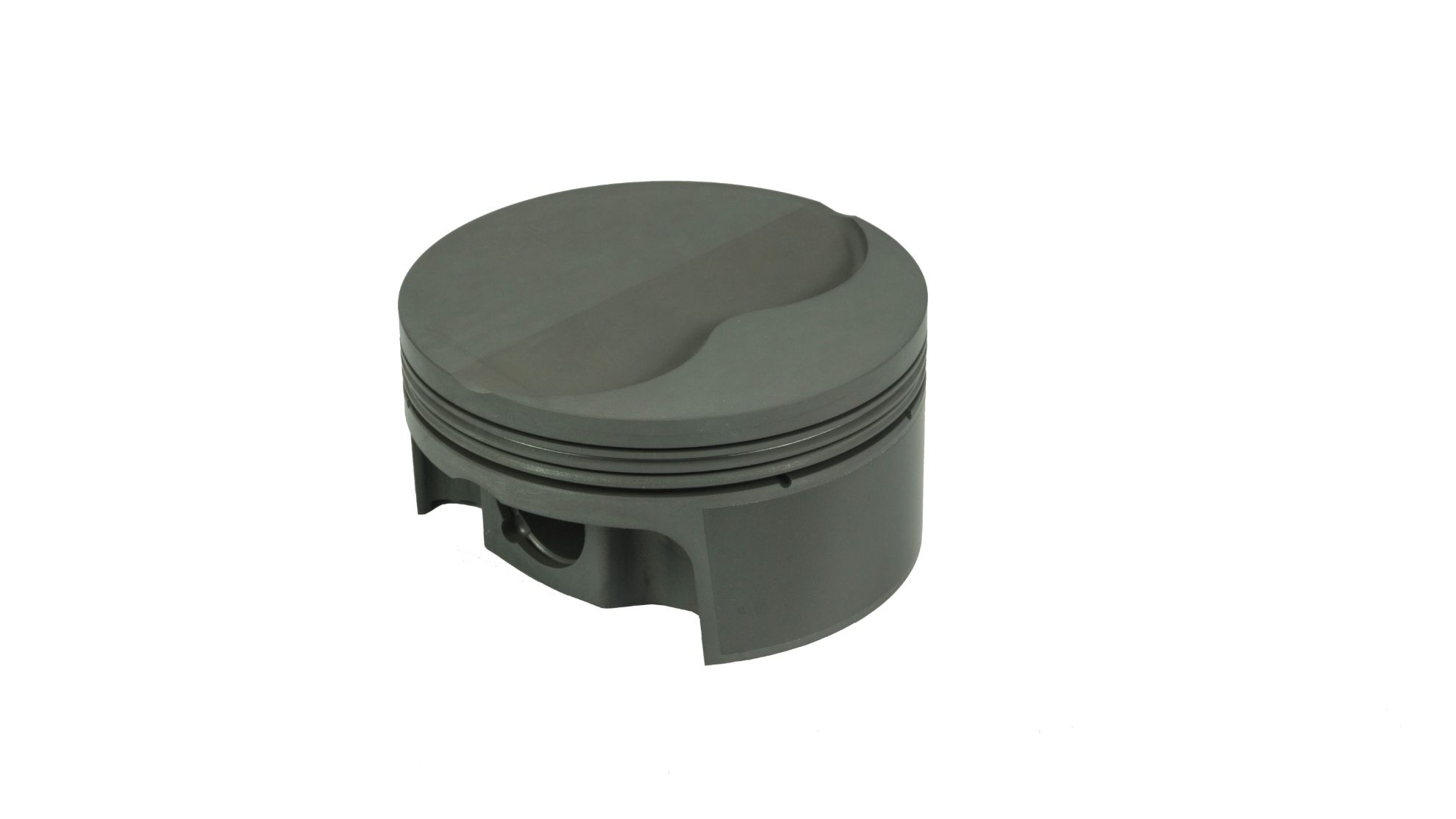

Piston (set) - FORD FE FLAT TOP

Manufacturer: Mahle Motorsport

Manufacturer part number: 930266080

Old price: $908.20

Price: $835.54

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

489cid 4.280 x 1.325CH, 4.250stroke,6.700rod,0.990pin,-8.8cc,510g,12.1CR, 4032

Note: Coatings: Phosphate + Grafal

Products specifications

Attribute name	Attribute value
Crown Volume	-8.8cc
Pin Wall Thickness	0.18
LCR Thickness	1.0mm
UCR Thickness	1.0mm
Piston Ring Thickness	1.0mm, 1.0mm, 2.0mm
Pin Mass	148g
OCR Thickness	2.0mm
Pin Diameter	25.146mm
Piston Mass	510g
Pin Length	64.0mm
LCR Material	9254 Steel
UCR Material	9254 Steel
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
Piston Style	Flattop, w/ 2 valve reliefs
Pin Style	Floating
Material	Forged, 4032
UCR Coating	HV385
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 8
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Clips Included	Y
File Fit	Y
Pins Included	Y
Rings Included	Y
Prop 65 Yes/No	Yes
Country of Origin	US
