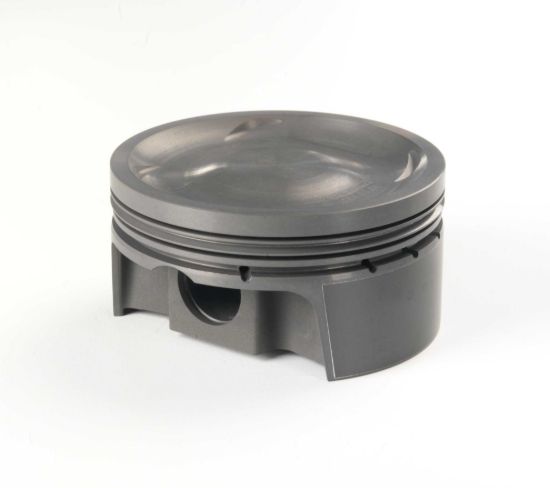

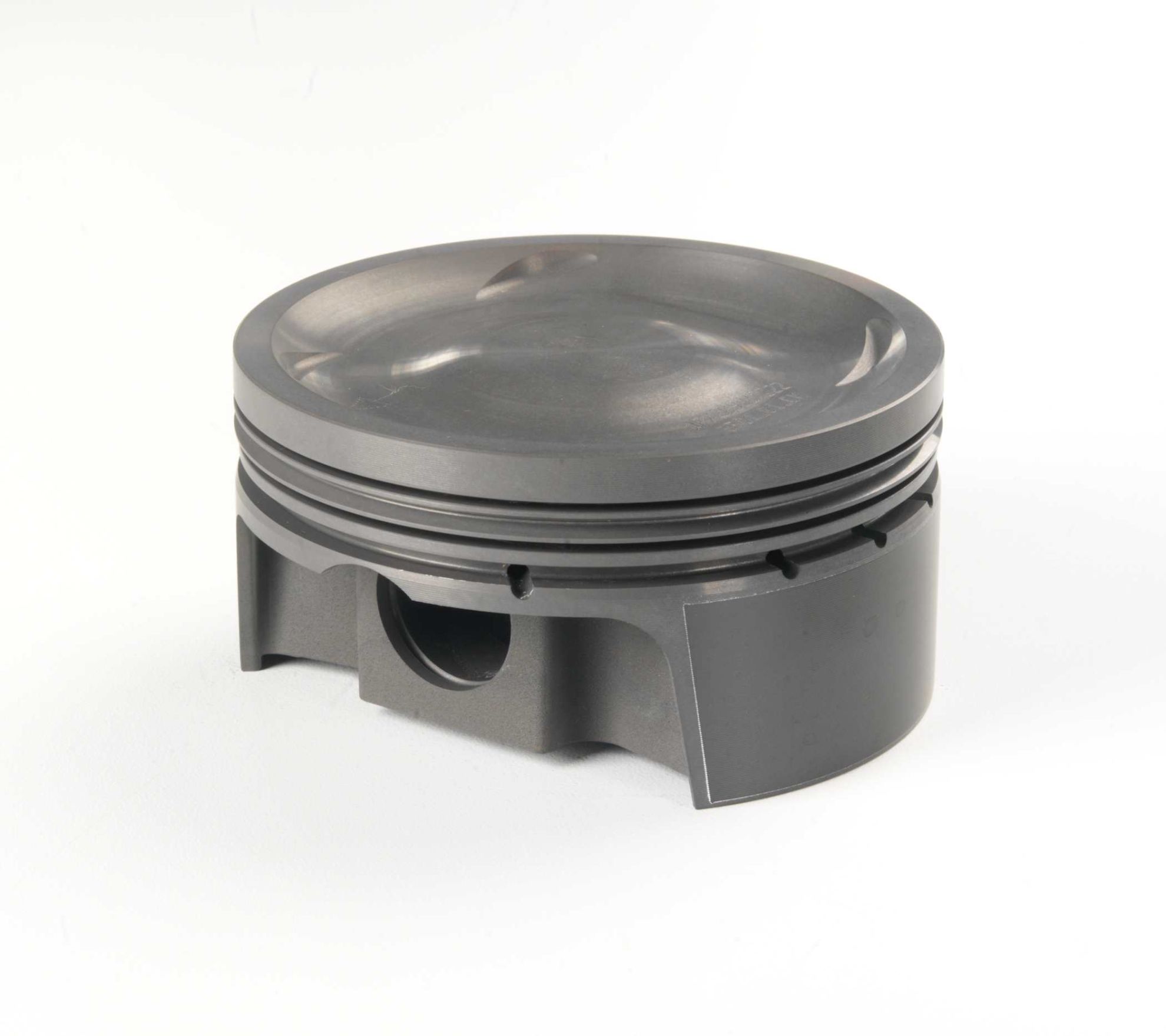

Mahle Motorsport Engine Piston Set - 930285137

Name: Mahle Motorsport Engine Piston Set - 930285137
SKU: 930285137
Price: 742.16 USD
Availability: InStock

Piston (set) - SUBARU WRX 2.5L STI, FORESTER, LEGACY

Manufacturer: Mahle Motorsport

Manufacturer part number: 930285137

Old price: $806.70

Price: $742.16

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

100.0mm x 30.7mm CH, 79.0mm stroke,130.5mm rod,23mm pin,-19.3cc,417g,8.5CR, 2618

Note: Coatings: Phosphate + Grafal + Hard Anodized top ring groove

Products specifications

Attribute name	Attribute value
Crown Volume	-19.3cc
Pin Wall Thickness	0.187
LCR Thickness	1.0mm
UCR Thickness	1.0mm
Piston Ring Thickness	1.0mm, 1.0mm, 2.0mm
Pin Mass	124g
OCR Thickness	2.0mm
Pin Diameter	23.0mm
Piston Mass	417g
Pin Length	57.404mm
LCR Material	9254 Steel
UCR Material	9254 Steel
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
Piston Style	Dish, w/ 4 valve reliefs
Pin Style	Floating
Material	Forged, 2618
UCR Coating	HV385
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 4
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Clips Included	Y
File Fit	Y
Pins Included	Y
Rings Included	Y
Prop 65 Yes/No	Yes
Country of Origin	US
