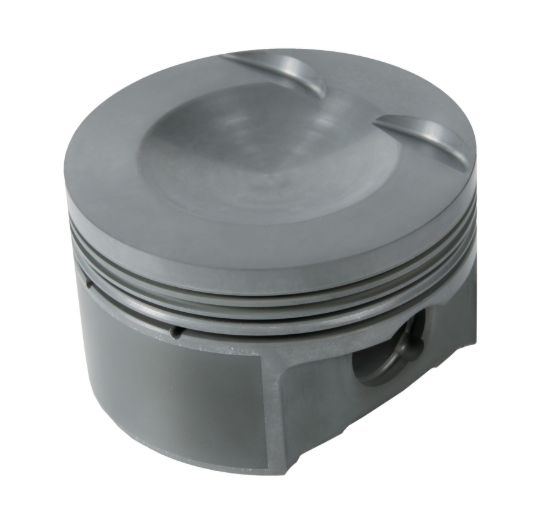

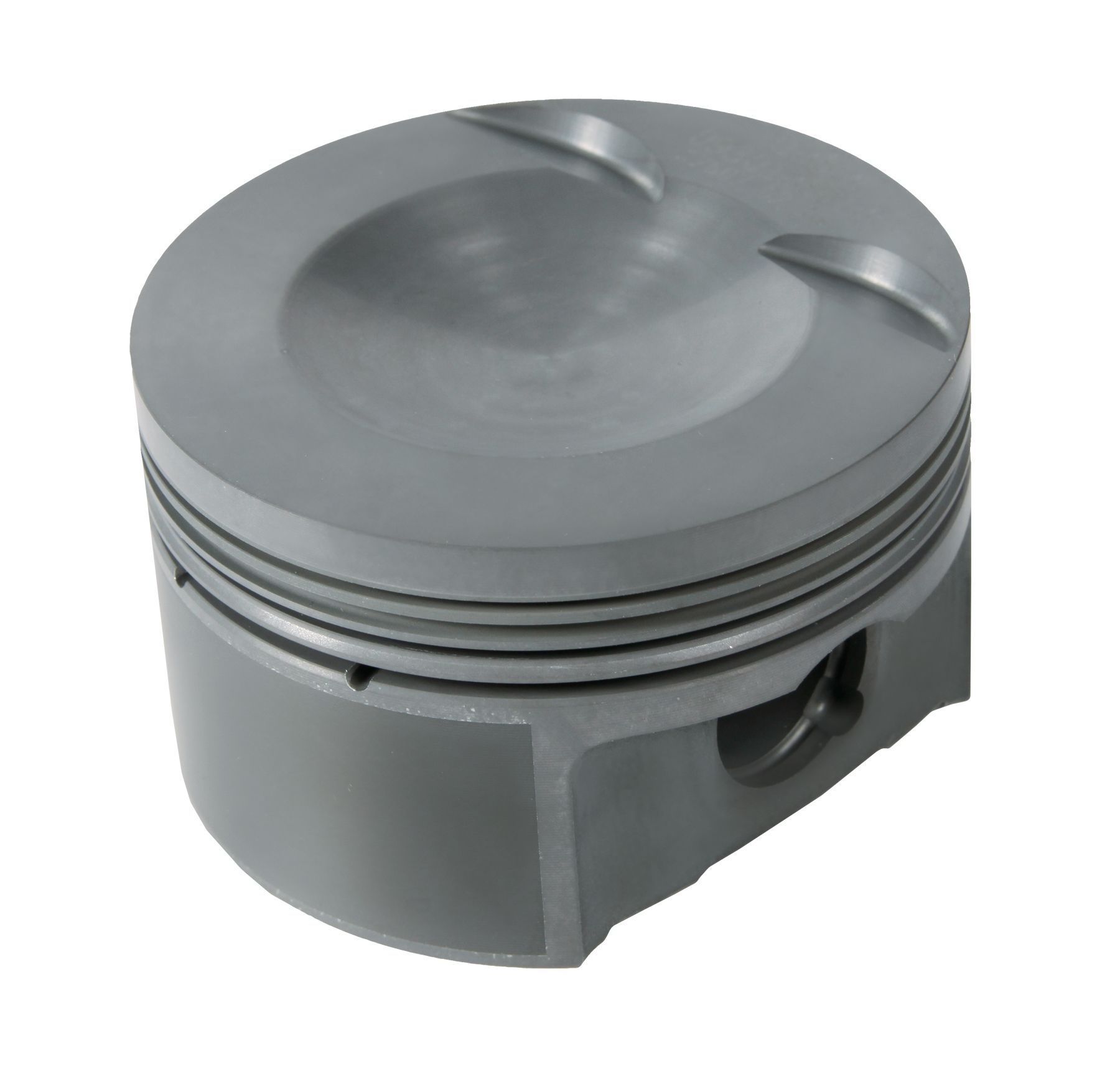

Mahle Motorsport Engine Piston Set - 930286368

Name: Mahle Motorsport Engine Piston Set - 930286368
SKU: 930286368
Price: 795.04 USD
Availability: InStock

Piston (set) - VOLKSWAGEN TSi EA888 Gen 3 (2015-2018) 2.0L TURBO

Manufacturer: Mahle Motorsport

Manufacturer part number: 930286368

Old price: $864.18

Price: $795.04

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

83.00mm x 29.6mm CH, 92.8mm stroke,144mm rod,23mm pin,-7.1cc,318g,9.6CR, M142P

Note: Coatings: Phosphate + Grafal + Hard Anodized top ring groove

Products specifications

Attribute name	Attribute value
Crown Volume	-7.1cc
Pin Wall Thickness	0.187
UCR Thickness	1.2mm
Piston Ring Thickness	1.2mm, 1.5mm, 2.0mm
LCR Thickness	1.5mm
Pin Mass	122g
OCR Thickness	2.0mm
Pin Diameter	23.0mm
Piston Mass	318g
Pin Length	57.404mm
LCR Material	Cast Iron
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
UCR Coating	CrN PVD
Piston Style	Dish, w/ 2 valve reliefs
Pin Style	Floating
Material	Forged, M142P
File Fit	N
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 4
OCR Tension	Standard
Pin Material	Steel
UCR Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Clips Included	Y
Pins Included	Y
Rings Included	Y
Prop 65 Yes/No	Yes
Country of Origin	US
